Rennes LN-60K painting Furnace temperature tracker 6 channels 300 ℃ 1 hour

SE
Channels: 6 channels, insulation box performance: 300 ℃ 60 minutes, large memory can record 200,000 data, can track the temperature status of the heating furnace and products throughout the process; thus obtaining multi-faceted accurate data, forming a valuable temperature Linear dispersion analysis report.
$1392.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

LeiEn LN-60K Furnace temperature tracker for paintingSPEC

LeiEn LN-60K Furnace temperature tracker for paintingDetails

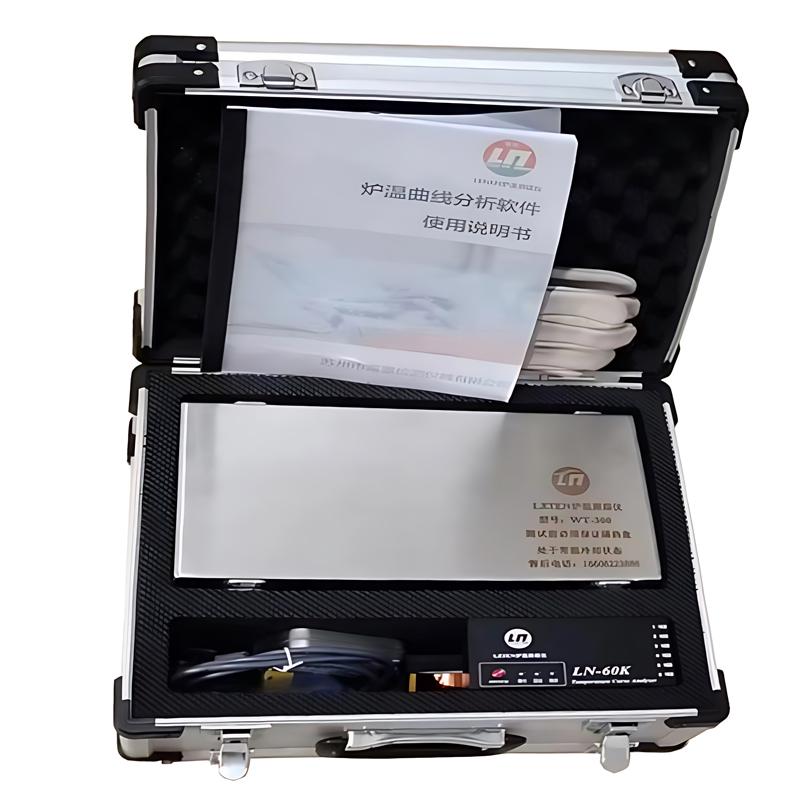

LeiEn LN-60K Furnace temperature tracker for paintingPacking list

SKU
NB046345
Number of channels
6 channel
Insulation box performance
300 degrees for 60 minutes, 250 degrees for 70 minutes, 200 degrees for 80 minutes, 100 degrees for 180 minutes
Insulation box range
300 degrees; 1-10 hours (customized according to the actual situation of the user)
memory
Large memory can record 200,000 data
Sampling rate
1S, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, etc., can be selected by the user
Computer requirements
No special requirements, can print out temperature Linear dispersion and various analysis reports by computer
Heat insulation box size (length * width * height)
268 * 160 * 110Mm (customized according to the actual situation of the user)
Insulation box material
Shell and steel column structure are high temperature resistant 310S stainless steel
Instrument size (L * W * H)
138 * 62 * 20Mm (Miscellaneous data, confirmed according to the actual situation of the user)
Insulation material:
Nano aerospace environmental protection materials
Sensors
Thermocouple K
Measurement range
-200-1370℃
precision
±0.3℃
LN-60K
Furnace temperature tracker for painting
Channels: 6 channels, insulation box performance: 300 ℃ 60 minutes, large memory can record 200,000 data, can track the temperature status of the heating furnace and products throughout the process; thus obtaining multi-faceted accurate data, forming a valuable temperature Linear dispersion analysis report.

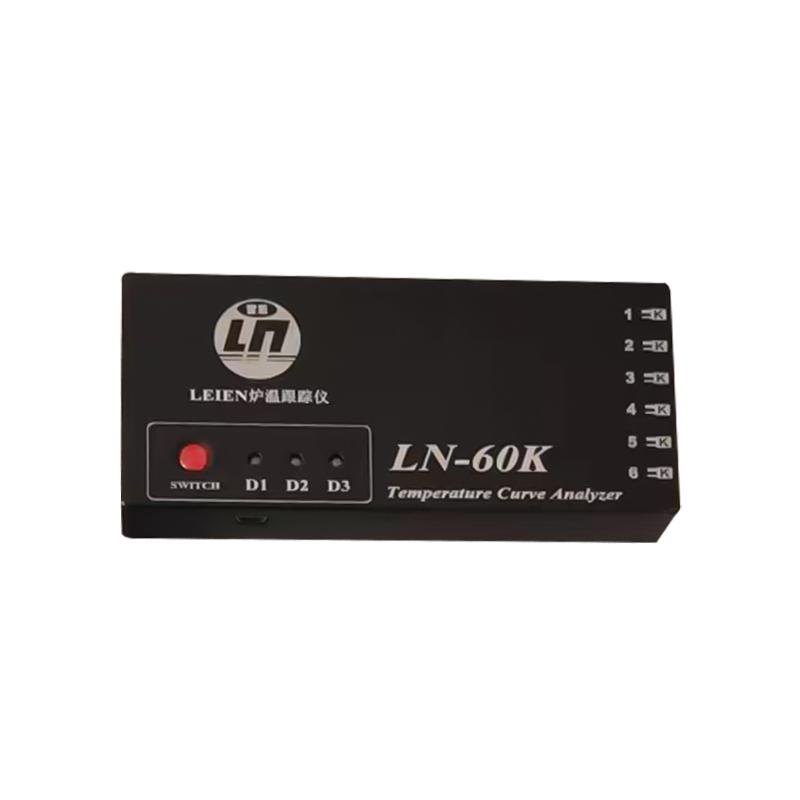

Rennes LN-60K painting Furnace temperature tracker 6 channels 300 ℃ 1 hour Picture

Introduction

LN-60K Furnace Temperature Tracker for CoatingOperating temperature range: -50"C~300°C.The superior thermal insulation performance enables the test system to operate safely and stably in a high-temperature environment, and to carry out multi-directional temperature curve tracking and mapping.

LEIEN furnace temperature Tester and product pass through the furnace together, and the temperature status of the furnace and product can be tracked and recorded throughout the process; In this way, accurate data can be obtained in all directions and valuable temperature profile analysis reports can be formed. The analysis software of LEIEN furnace temperature Tester will carry out various data analysis and calculation, and through the data analysis and calculation results, the heating furnace can be accurately optimized and adjusted, so as to achieve the goal of improving product quality, achieving stable and high yield and energy saving.

Scope of application

Painting Baking Furnace Temperature Tracker, Muffle Furnace Temperature Tester, Non-stick Paint Furnace Temperature Tracker, Steel Heat Treatment Furnace Temperature Tracker, Wheel Hub Heat Treatment Furnace Temperature Tracker, Wave Soldering Reflow Soldering Oven Temperature Tester, Automobile Coating Furnace Temperature Tracker, Food Baking Oven Temperature Tracker, Ceramic Firing Furnace Temperature Tracker, Enamel Oven Temperature Tracker, Glass Silk Screen Printing Furnace Temperature Tracker, Glass Baking Flower Annealing Furnace Temperature Tester, Special Customized Furnace Temperature Tester, etc.

Features

LN-60K coating furnace temperature tracker has the characteristics of high cost performance, small size, light weight, and superior thermal insulation performance, which is very suitable for small and medium-sized paint and coating enterprises. Such as baking temperature of 300 °C of various powders, paint baking, motor stator dipping and curing process baking, etc. For paint manufacturers: to do a good job of coatings, furnace temperature trackers are indispensable. For users who apply plastic powders and paints for surface treatment: the product quality must be good, and the furnace temperature tracker is indispensable.It effectively solves the influence of uneven temperature in powder coating during baking, allowing engineers to quickly and efficiently track and control product quality.


FAQ
QPowder coatings stoving often have uneven temperature, what instrument should I choose?
A It is recommended to use LN-60K Furnace temperature tracker. It uses nano aerospace thermal insulation material, which can continue to work for 60 minutes in a 300 ° C environment. Linear dispersion is recorded in real time through multiple channels to help quickly locate stoving dead ends and solve the mass problem of uneven powder curing from the root cause.
QMotor stator dipping and curing need to monitor the temperature, is this instrument suitable?
A Applicable. LN-60K is specially optimized for stoving scenarios below 300 ° C. Equipped with K-type Thermocouple to accurately monitor the dipping and curing process. The large memory can record 200,000 sets of data. Through software analysis, the curing process parameters can be optimized, and the motor insulation performance and service life can be improved.
