Rennes LN-60K aluminum brazing special Furnace temperature tracker 6 channels 700 ℃ 1 hour
SE
LN-60K
LeiEn LN-60K Furnace temperature tracker for aluminum brazingSPEC
LeiEn LN-60K Furnace temperature tracker for aluminum brazingDetails

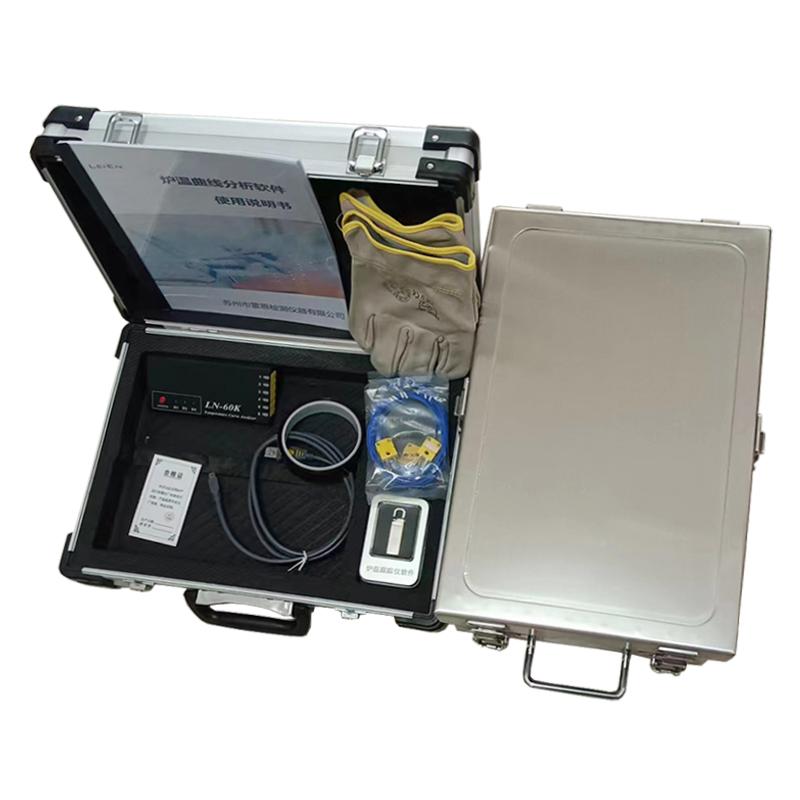

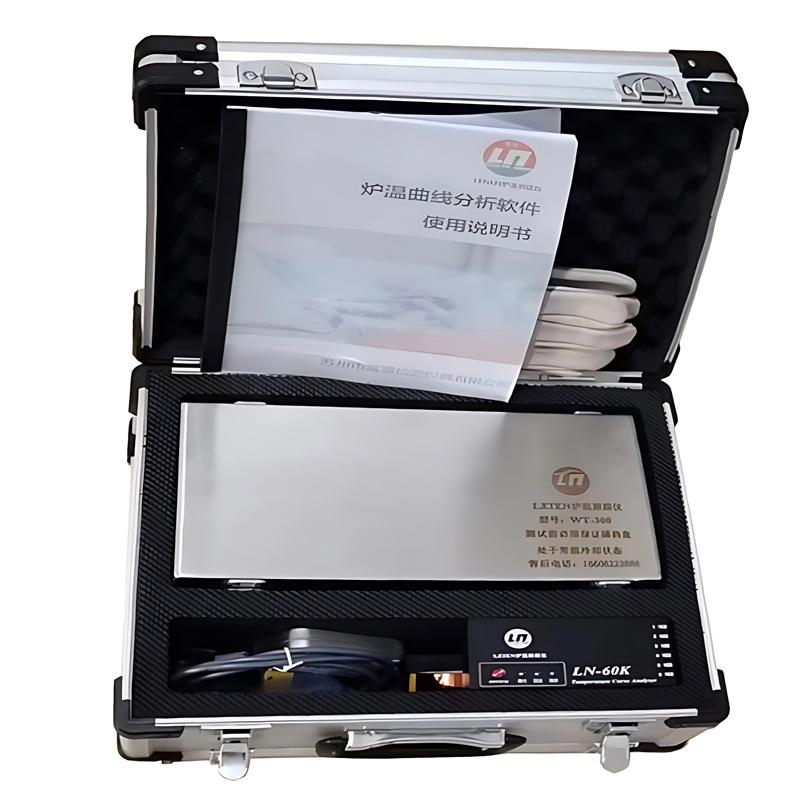

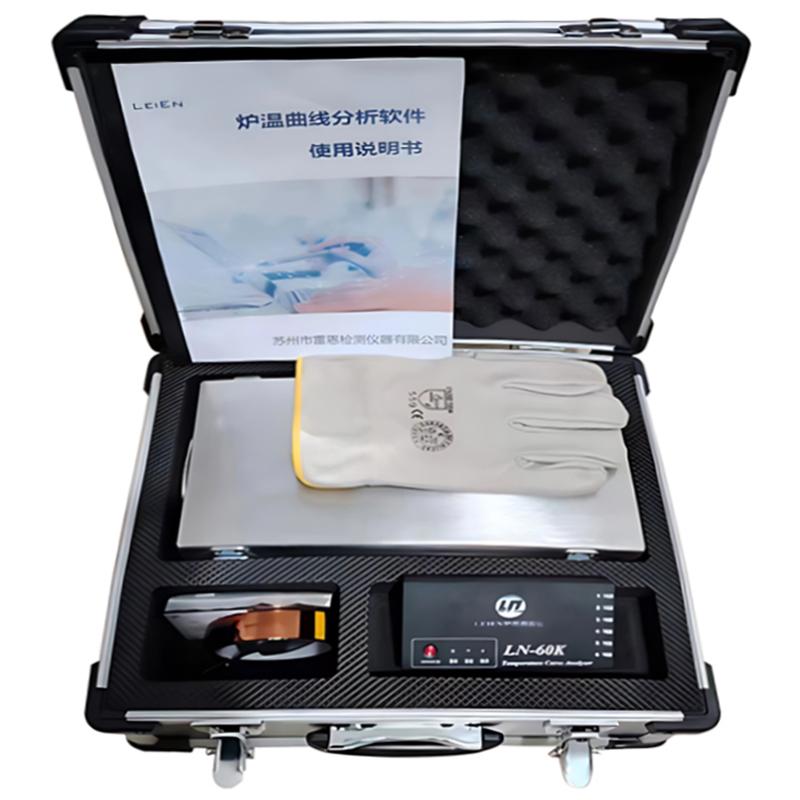

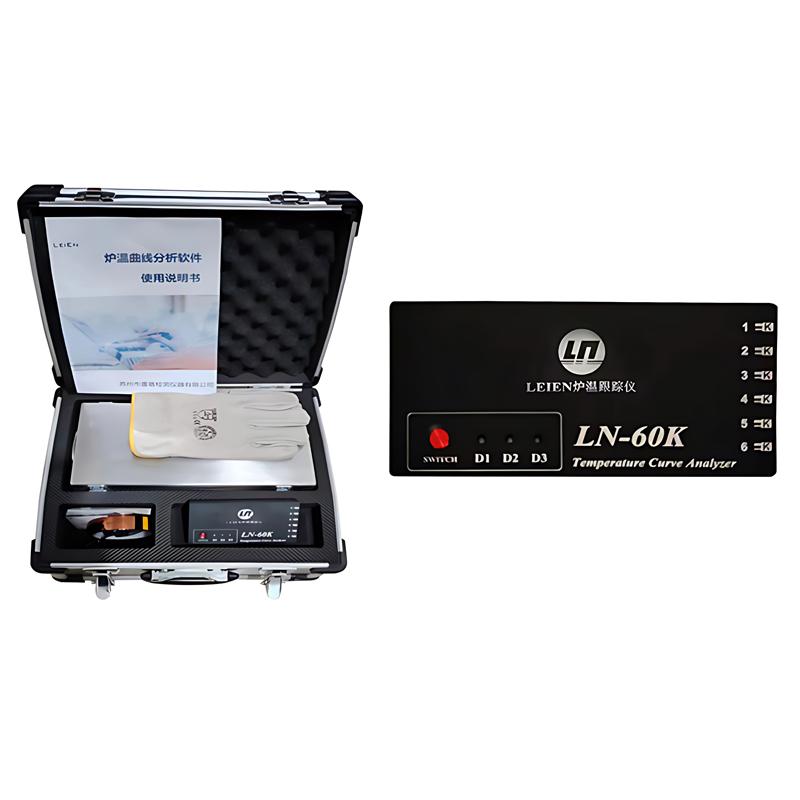

LeiEn LN-60K Furnace temperature tracker for aluminum brazingPacking list
- SKU
- NB046348
- Number of channels
- 6 channel
- Insulation box performance
- 700 ℃ for 90 minutes, 600 ℃ for 100 minutes, 500 ℃ for 120 minutes
- Insulation box range
- 700 ℃; 1-30 hours (customized according to the actual situation of the user)
- memory
- A 1-second recording can be recorded for 4.5 hours, a 2-second recording can be recorded for 9 hours, and so on.
- Sampling rate
- ls, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, etc., can be selected by the user
- Computer requirements
- No special requirements, Linear dispersion and various analysis reports can be printed by computer
- Heat insulation box size (length × width × height)
- 375X238x175mm is customized according to the actual situation of the user.
- Insulation box material
- Shell and steel column structure: high temperature resistant 310S stainless steel; Thermal Insulation: nano aerospace environmentally friendly material
- Instrument size
- Height 20mm (Miscellaneous data, confirmed according to the actual situation of the user)
- Sensors
- Thermocouple K
- Measurement range
- -200-1370℃
- Fine ℃
- ±0.3℃
Introduction
LN-60K Aluminum Brazing Furnace Temperature Tracker has superior thermal insulation performance, which can enable the test system to operate safely and stably in a high-temperature environment, and carry out multi-directional temperature curve tracking and mapping. Together with the product, the temperature status of the furnace and the product can be tracked and recorded throughout the process. In this way, accurate data can be obtained in all directions and valuable temperature profile analysis reports can be formed. LEIEN furnace temperature Tester analysis software will carry out various data analysis and calculation, through the data analysis and calculation results, the heating furnace can be accurately optimized and adjusted, so as to achieve the goal of improving product quality, achieving stable and high yield and energy saving.
Scope of application
It is applied to the brazing furnace temperature test and tracking of aluminum products, including the brazing of Water Tanks, the brazing of radiators, the brazing temperature test monitoring and tracking of evaporator condensers, the production temperature curve and temperature data, which provides reliable help for enterprises to improve product quality and reduce repair and scrapped products.
Aluminum brazing furnace temperature tracker, ceramic firing furnace temperature tracker, vacuum furnace temperature tracker, non-stick coating furnace temperature tracker, non-stick boiler temperature Tester, Dacromet furnace temperature tracker, muffle furnace temperature Tester, painting paint furnace temperature Tester, steel heat treatment furnace temperature tracker, hub heat treatment furnace temperature tracker, wave soldering reflow soldering furnace temperature Tester, automobile coating furnace temperature tracker, food baking oven temperature tracker, glass baking annealing furnace temperature Tester, special custom furnace temperature Tester, etc
Features
In the production process of aluminum brazing, the key to ensuring the quality of brazing is to determine the appropriate brazing temperature and belt speed.
The aluminum brazing temperature is too high, and the speed of the mesh belt is too slow, which is easy to cause defects such as brazing material loss, dissolution, and fin bending; The brazing temperature is too low, the speed of the mesh belt is too fast, the workpiece has not yet reached the necessary brazing temperature, and the temperature of each part is unbalanced, which is easy to cause defects such as virtual welding, leakage, and discontinuity of brazing seams.
The aluminum brazing temperature and mesh belt speed need to be determined by measuring the actual temperature curve of the workpiece in the furnace, and the brazing furnace temperature tracker solves the above problems for you, optimizes the process, improves production efficiency and ensures quality.
