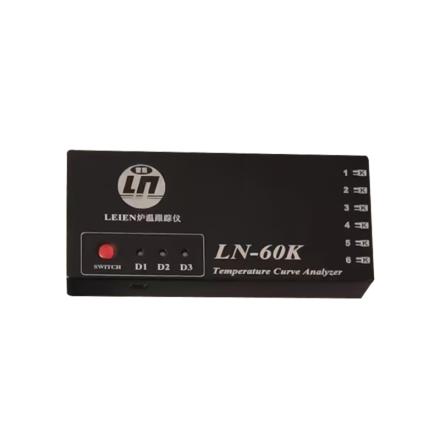

LeiEn LN-60K Furnace temperature tracker for wave soldering and reflow soldering Specifications
Search
Brand：LeiEn
Model：LN-60K
Name：Furnace temperature tracker for wave soldering and reflow soldering
Specifications
| number of channels | 6 channel |
| Sampling rate | 0.05 seconds to 3600 seconds |
| Probe type | K |
| data transmission | data cable |
| continuous testing | 16 consecutive test storage |
| startup mode | button start, time start, temperature start |
| Instrument temperature resistance | 100℃ |
| Operating Voltage | 4.2v |
| Instrument power consumption | 20 mAh |
| Instrument size | 258*62*11mm |
| Computer requirements | Windows98, 2000, XP, win7, win8, win10, etc., can print out the temperature Linear dispersion through the computer. |
| Battery | Li-ion battery |
| Instrument Accuracy | +/- 0.5 ℃ (maximum error) |
| Resolution | 0.1℃ |
| Measurement range | -200 to 1370 ℃ |
| real-time testing | Connect to the computer to display the temperature in real time. |
| Memory Capacity | 512M |
| Battery level | 1200 mAh (70 hours of continuous recording) |
| Calibrated mode | Analog signal or temperature |
| Insulation box performance | 280 ℃ for 10 minutes |
| Insulation box size | 298*86*28mm |
Packing list
Temperature recorder X1, special temperature measurement line X1, communication line X1, data download and analysis software X1, scissor X1, instrument box X1, certificate warranty card X1, instrument factory calibrated certificate X1, high temperature gloves X1, incubator X1, operation manual X1, high temperature tape X1
After-sales instructions
Warranty days: 730 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/46357/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
