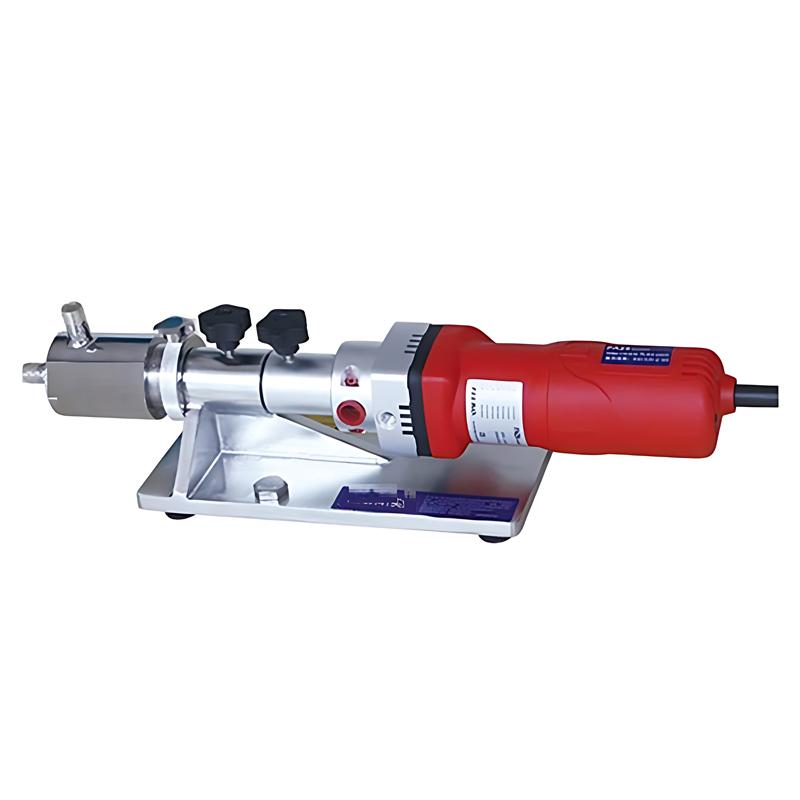

MUXUAN MS-D25 Laboratory Online High Shear Dispersion Mulser SUS316L Material 500W
MS-D25
MuXuan MS-D25 Laboratory Online High Shear Dispersion MulserSPEC
MuXuan MS-D25 Laboratory Online High Shear Dispersion MulserDetails
MuXuan MS-D25 Laboratory Online High Shear Dispersion MulserPacking list
- SKU
- NB046369
- Power Supply
- 220V/50Hz
- Motor power
- 500W
- Speed range
- 10000~28000rpm
- Flow rate approx
- 1-15L/min (water as standard)
- Speed regulation mode
- Electronic stepless speed regulation
- Rotation speed display
- None (scale display)
- Standard working chamber
- Stainless steel jackless working chamber
- Standard working head
- 25G
- Contact logistics material
- SUS316L
- Mechanical sealing material
- SiC, FKM, ceramics
- Import and export outer diameter
- 14Mm (hose interface)
- Dimensions
- 477×120×122mm
- Work bracket, base, disassembly and assembly tools
- Stainless steel standard
- Environmental temperature
- 5-40℃
- Environmental humidity
- 80%
- Dimensions about
- 450*100*120mm
- Encasement Weight approx
- 6KG Carton Foam Encasement
Introduction

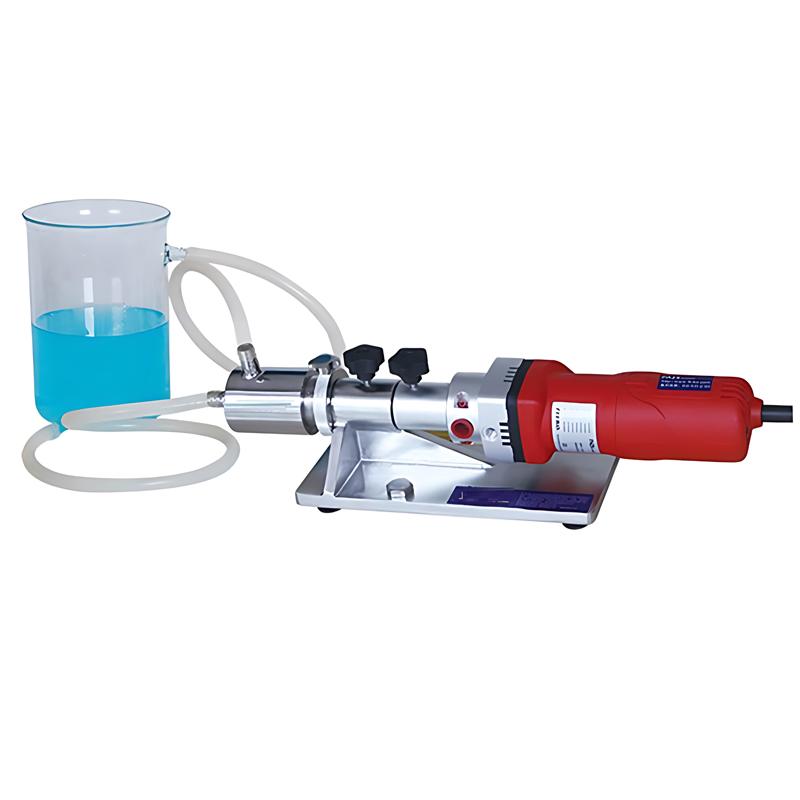

MS-D25 online high-shear dispersion emulsifier has high efficiency, lightweight, and module structure, which is easy to operate and can run for a long time, and can easily meet a variety of high-demand dispersion emulsification experiments. It can be simulated in the laboratory for on-line Operating Conditions for cyclic or on-line continuous processing, with the characteristics of homogeneity and no dispersion and dead ends.
Features
High-speed motor imported from Germany, long life design, can run stably for 4 hours or more for a long time;
Stepless speed regulation system, the speed can reach 28000rpm, and the shear line speed of 27m/s;
The structure of the whole machine is reasonably designed, the materials are excellent, and the use is light;
The equipment is highly modular: online working head cavity;
Overload protection, double protection insulation;
The head is made of stainless steel, which is reusable and can be assembled flexibly.
Scope of application
Material viscosity: ≤5000cps;
Production capacity: 1-15L/min flow rate;
Applications: Suitable for biology, medicine, food, coatings, inks, textile auxiliaries, cosmetics, lubricating oils, pesticidesand other industries of product materials dispersion, emulsification and homogenization.
Applicable materials: solid and liquid, liquid and liquid mixed to form a solution, colloid, suspension or emulsionUse; If juices, soups, dairy tissue homogenates, cosmetics, surfactants, bitumen, emulsificationChemicals, oilfield chemicals and other materials.
