Dasheng OF500 (DA500 series dedicated) Air Compressor head, power 550w

OF500 (for DA500 series)

Machine head

Introduction

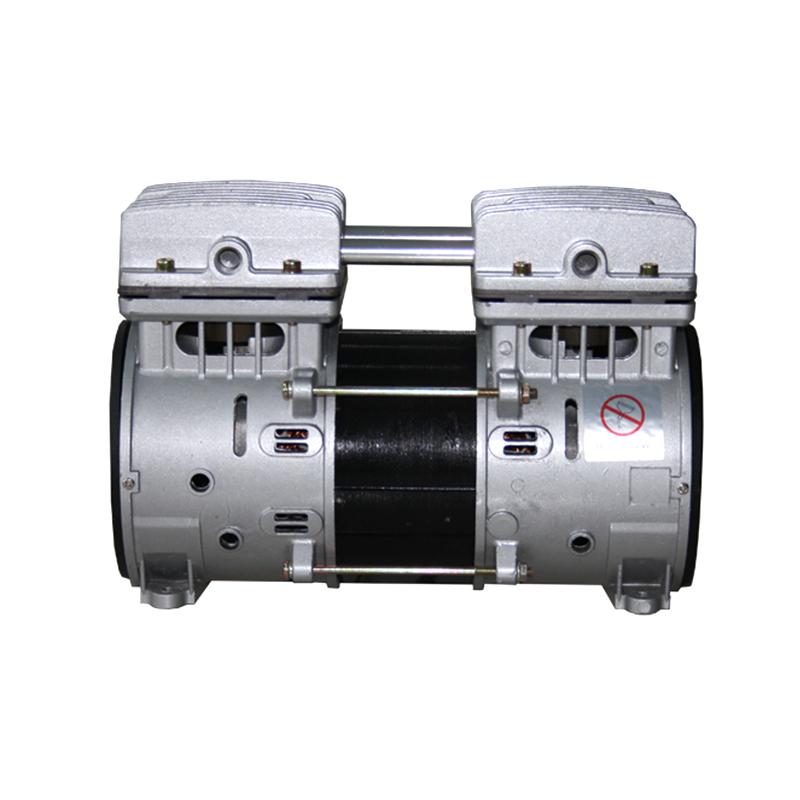

Dasheng Air Compressor head OF500 is suitable for DA500 series Air Compressors. The power of OF500 Air Compressor head is 550W, and the displacement is 115L/min at 0Bar or 55L/min at 5Bar.

Bendasheng Air Compressor HeadOF500 is a new motor, which greatly improves the performance of the old model. All parts of the machine head, including screws and reinforcing rods, are made of stainless steel, which has better corrosion resistance, and fans are used to blow heat to improve heat radiation.

Note: The pump head is broken during the use of the Air Compressor, and the pump head can be purchased separately for replacement, which saves costs without scrapping the whole machine.

Comparison of old and new Air Compressor heads

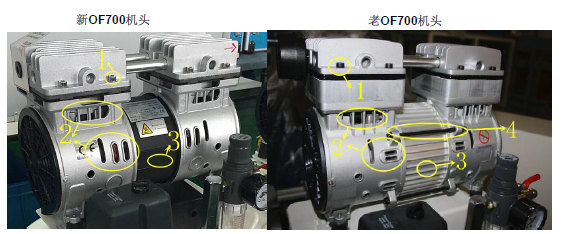

1. External update

1) Replace all screws of OF700 Air Compressor head with stainless steel

2 ) Enlarging cooling holes to improve heat dissipation

3 ) Remove the old aluminum case, the fan blows heat directly through the GAB between the motor case and the black surface. (The old design with aluminum actually blocks the heat, not radiates it, compare 3 in the picture below)

4 ) The reinforcing rod is updated to stainless steel, and enters the inside of the machine head from the external motor.

2. Heat radiation update

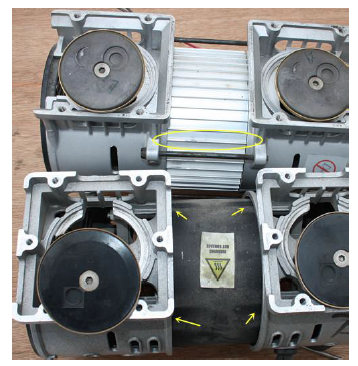

1 ) The new model removes the cover so that the fan blows the heat through the gap between the motor housing and the black. The image below shows a partial cleaning of the dust on the black body area, which is where the heat is located.

2 ) Older models had aluminum shrouds over the motors, the old shrouds would actually block the heat instead of radiating it.

3. Interchange of parts

All parts of the new and old machine heads are interchangeable except the lower cups and cylinder liners.

4. Comparison of life expectancy

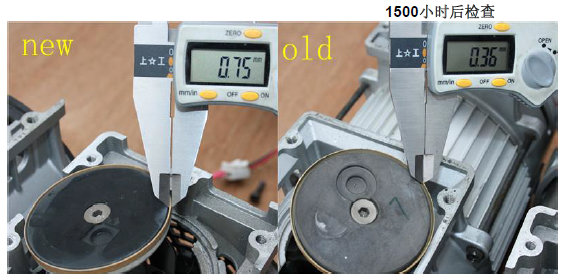

1) a. The standard thickness of the leather cup of the new machine head is 0.8mm, and it is still in good condition after 1500 hours of ultimate load test, with 6.3% wear.

b. The standard thickness of the leather cup of the old machine head is 0.8mm, and after 1500 hours of ultimate load test, 55% of it is worn.

2) The new machine head uses 100% copper wires to increase the heat radiation speed and prolong the life of the machine head.

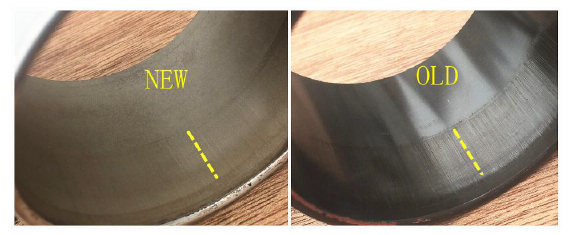

3) a. The new ceramic coated barrel jacket is still in good condition after 1500 hours of testing with no obvious scratches seen.

b. The surface of the old cylinder jacket has obvious scratches and needs to be replaced after 1500 hours of testing.

Packing list：Machine head x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
