UK RK KHC.20 Small Drawdown Plate prepative Common Spreader Platform

SE
Applicator film Repeatability, reduce manual error, especially suitable for ultra-thin film or film substrate film.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO
Similar products

RK KHC.20 Drawdown PlateSPEC

RK KHC.20 Drawdown PlateDetails

RK KHC.20 Drawdown PlatePacking list

SKU
NB000464
name
Drawdown Plate
Specifications
110*180cm
material
rigid polyester board + foam layer + rubber cushion
KHC.20
Drawdown Plate
Applicator film Repeatability, reduce manual error, especially suitable for ultra-thin film or film substrate film.

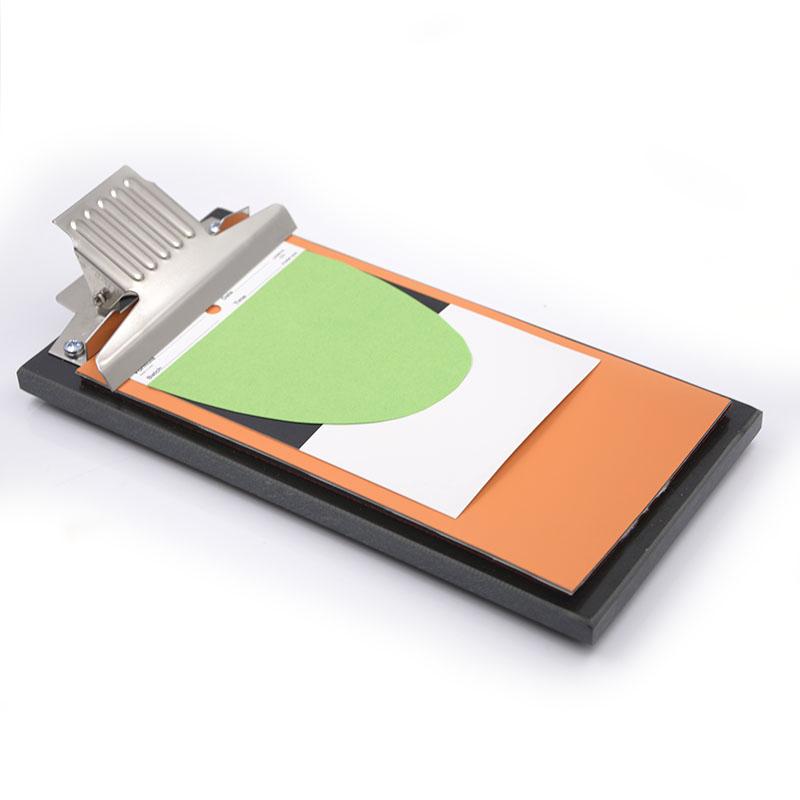

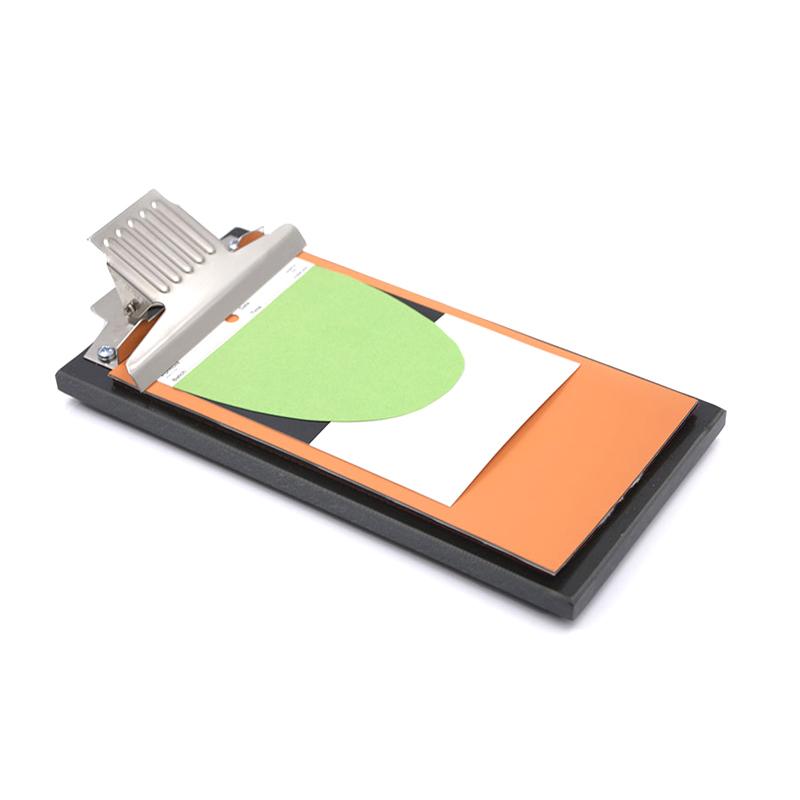

UK RK KHC.20 Small Drawdown Plate prepative Common Spreader Platform Picture

   British RK KHC.20/21 Small/Large Imprinting Bed Advertising Picture

Imprinting bed technical parameters

modelProduct Description
KHC.20KHC small stamping bed 11 x 18 cm
KHC.21KHC Large Imprinting Bed 24 x 34 cm

Advantages of imprinting bed

The RK imprint bed consists of clamps, a rigid polyester board and a layer of foam/rubber cushioning. Compared with proofing directly on hard substrates, proofing on the RK printing bed has better repeatability and proofing effects. This is because the soft foam/rubber pad can absorb the pressure exerted by the operator on proofing to a certain extent, resulting in better proofing results.

Application

For research, testing and quality control, used in the testing of inks, coatings, adhesives and various emulsions. Applicable substrates for RK color sticks include paper, cardboard, plastic film, metal foil, etc.

Impression bed operation

1. First prepare a substrate of appropriate size for proofing.

RK Company can provide two types of proofing paper for proofing (500 sheets per package, half of the proofing paper is coated with varnish, and the other half is without varnish)

■ For small imprinting beds, the specification is 12×21cm

■ For large imprinting beds, the specification is 18×31cm

2. Place the substrate on the imprinting bed and clamp it with clamps.

3. Select a suitable model of coating stick (please refer to relevant information) and place it on the imprinting bed close to the clamp.

4. Place the paint or varnish used for proofing close to the clamp, about 1cm below the coating stick. (Please control the dosage yourself)

5. Hold both ends of the coating rod with both hands and pull the rod toward the operator at a constant speed and pressure. Please be careful not to rotate the rod during operation.

6. After proofing, put the coating stick into a suitable solvent, clean it, and wipe it dry with a cloth. Please note that the wire rod should always be kept dry

Related accessories [need to be purchased separately]

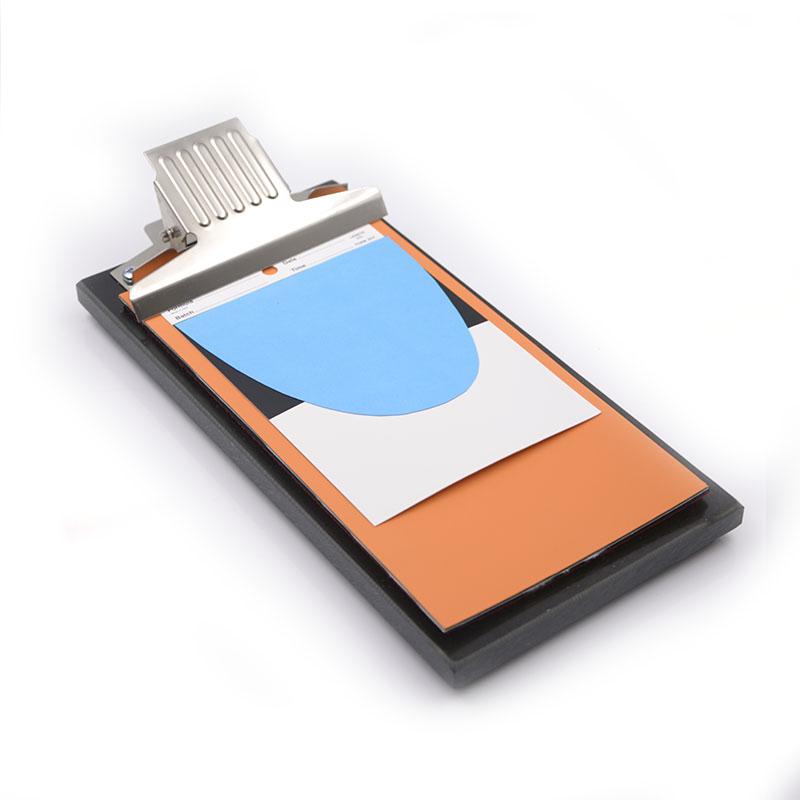

British RK KHC.20/21 small/large imprinting bed real photoswire brushHiding paper

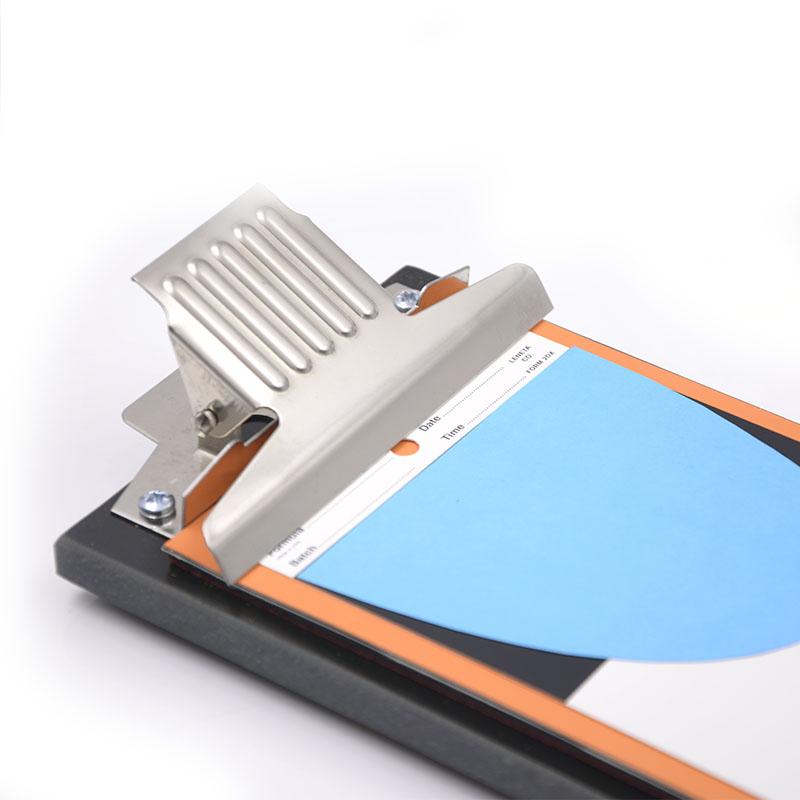

British RK KHC.20/21 small/large imprinting bed details 01

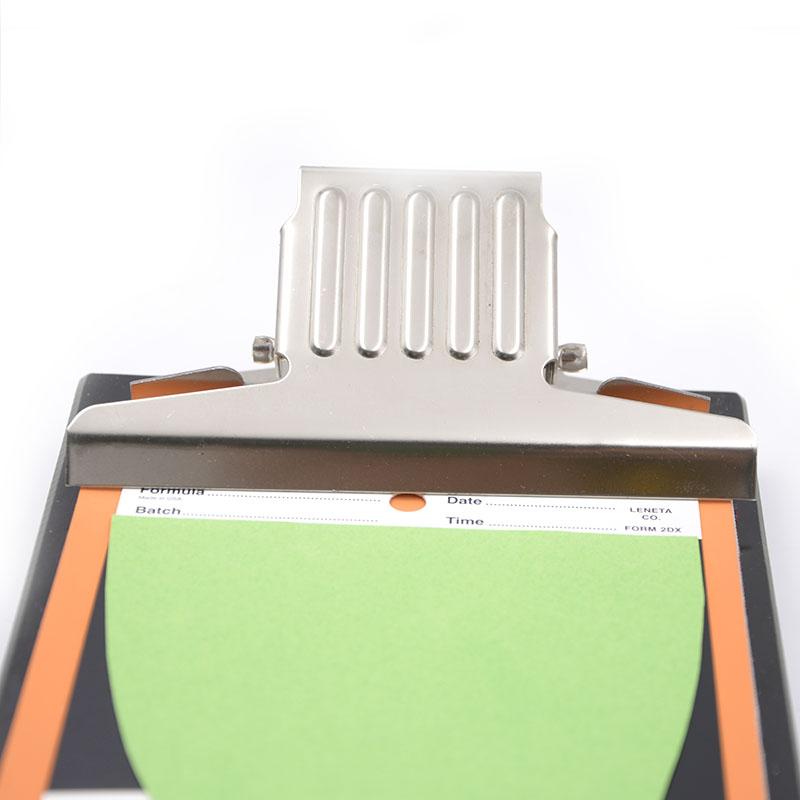

British RK KHC.20/21 small/large imprinting bed details 02

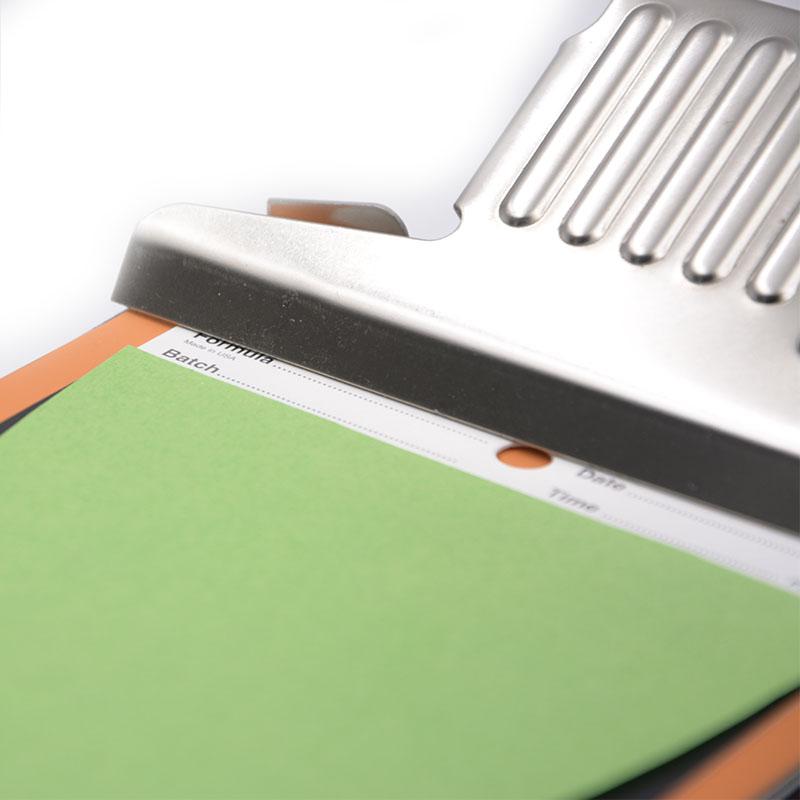

British RK KHC.20/21 small/large imprinting bed details 03


FAQ
QI don't know if the Drawdown Plate will move when using the Drawdown Plate, and does the bottom need to be fixed?
A Fineness gauge itself has weight, its purpose is mainly to balance proofing, to achieve equilibrating effect, generally scraping the bottom does not need to be fixed, it will not be loose
QWhat material is your press made of?
A There are three different materials: rubber cushion, foam layer, rigid polyester board.
QNow there are pet and hard board uneven stickers, how to solve the problem of uneven thickness of Spreader?
A Film can be considered with Drawdown Plate, the budget is sufficient, it is recommended to use vacuum adsorption Film Applicator
QWill the paper jam slip on this Drawdown Plate scraping sample?
A Hello, generally not. The top of the Drawdown Plate is equipped with a gravity clip, and there has been no paper jam slipping.
Q What kind of scraper platform is there? For black and white Cardboard
A Hello, yes, RK Drawdown Plate is a Spreader platform used to pad film cardboard.
QIs this used on the bottom when scraping the Printing ink sample?
A Hello, yes.
QRK Drawdown Plate is designed with soft base, while I think some domestic (CN) designs are hard base or Glass, what is the difference between the two? Which is better?
A According to the "Research on Spreader Process of Large Area Photoresist Wire Rod" published by the South China Professional Optoelectronics Research Institute of South China Normal University, the experiment shows that the use of a soft backing plate with low hardness can make the film more uniform. Thanks for the consultation.
QThe wire rod and Drawdown Plate are used together, right?
A Hello, yes, but it needs to be purchased separately.
