RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm

SE
Can film 16.0μm, using winding process, Wire diameter 0.18mm, rod diameter 12.7mm, the main rod and steel wire are stainless steel, hand width 50 + 50mm.
$179.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 7# 1/2" Applicator rod 1/2 "SPEC

RDS 7# 1/2" Applicator rod 1/2 "Details

RDS 7# 1/2" Applicator rod 1/2 "Packing list

SKU
NB004640
Production process
Wire-wound
WFT
16.0μ m
diameter
12.7mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
stainless steel
Wire diameter
0.18mm
7# 1/2"
Applicator rod 1/2 "
Can film 16.0μm, using winding process, Wire diameter 0.18mm, rod diameter 12.7mm, the main rod and steel wire are stainless steel, hand width 50 + 50mm.

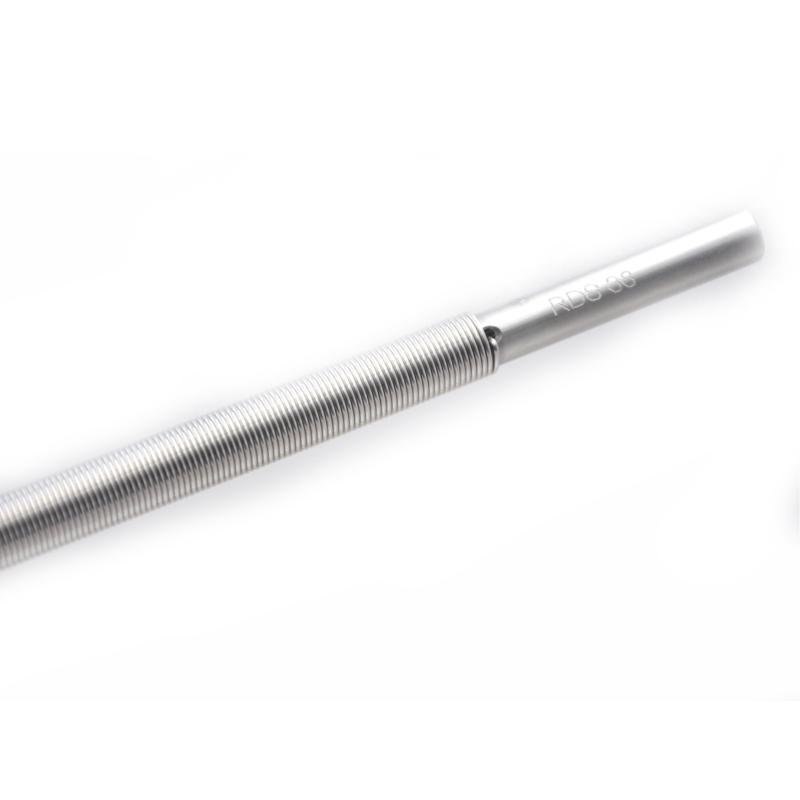

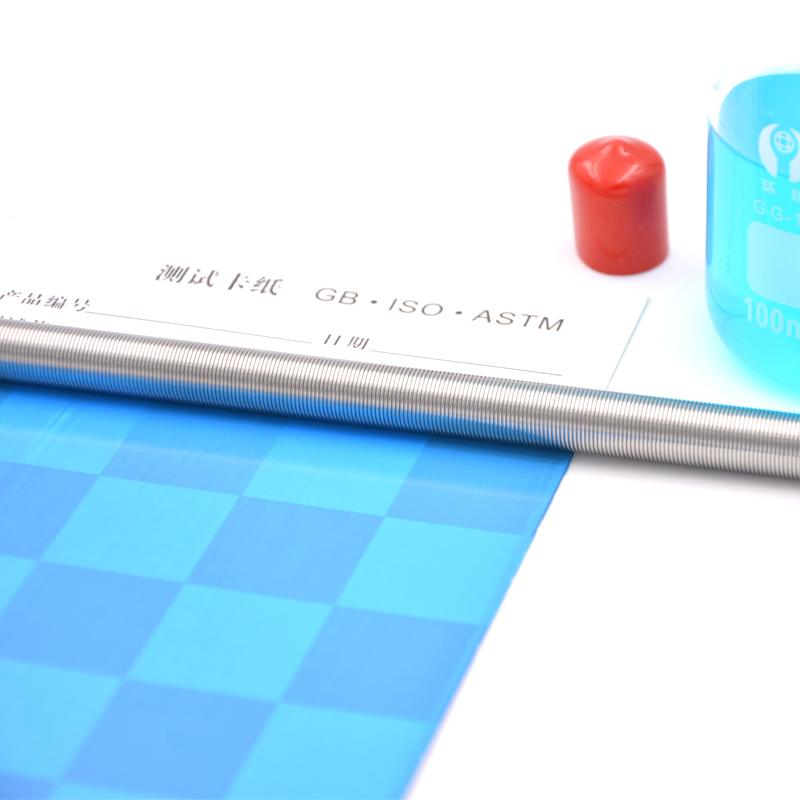

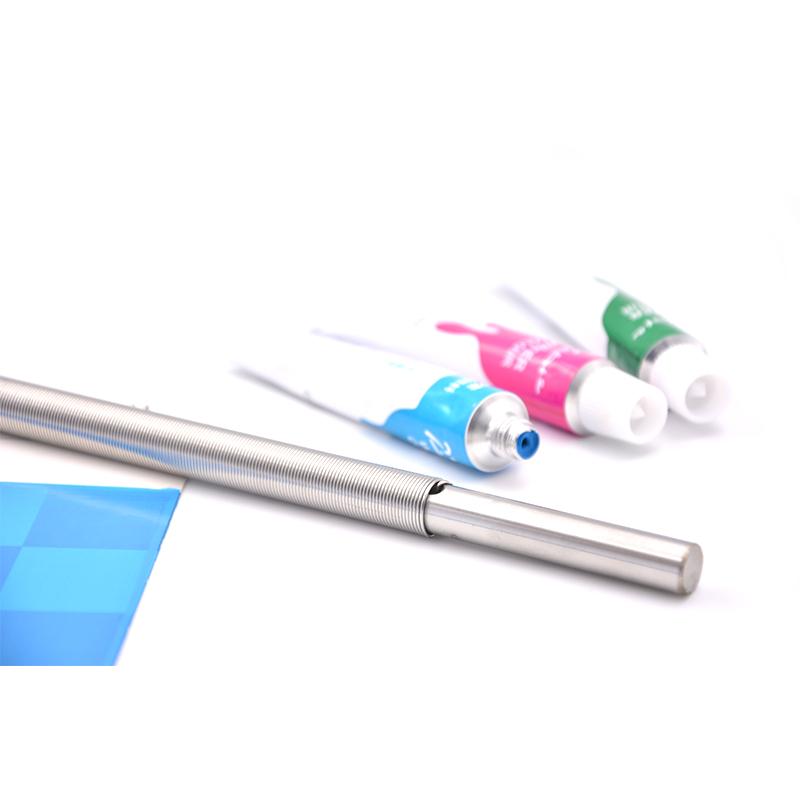

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Picture

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 1

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 2

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 3

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 4

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 5

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 6

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 7

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 8

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 9

RDS 7 #1/2 "inks scraper film thickness 16.0μm Wire diameter 0.18mm Figure 10


FAQ
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QAre all Applicator rods available for inspection in the GB/T 13217.7 standard?
A Not necessarily, but this 7 #1/2 "Applicator rod can be considered.
QCan silver glue be used to prepare dry film on PET film with a wire rod?
A Yes, but you need to select the type bar corresponding to the wet film thickness to prepare the thickness of dry film you require.
