HUXI HR-25Z High Shear Homogenizer 7L/30000rpm

SE
Power: 600W; 220V, 50Hz/110V.60Hz; Processing capacity: 0.2-7000 ml; Rotation speed: 11000~30000rpm; Standard working head: 25G
$3491.00/set
PromotionLoading...
Coupon
Model:
Certificate

HuXi HR-25Z High Shear Homogeneous MulserSPEC

HuXi HR-25Z High Shear Homogeneous MulserDetails

HuXi HR-25Z High Shear Homogeneous MulserPacking list

SKU
NB046426
Power
600W
Power Supply
220V, 50Hz / 110V. 60Hz
Processing Capacity (H 2O)
0.2-7000ml
Max. Processing Viscosity
8000cP
Speed range (no load)
11000~30000rpm
Rotation speed display
Scale
Rotation speed control
stepless speed regulation
Contact material
SS316L
Bushing material
PTFE
Standard head configuration
25G
Environmental temperature
5-40℃
Allowable Relative Humidity
≤80%
Process type
batch processing
Work frame, base
Standard
Protection level
IP20
HR-25Z
High Shear Homogeneous Mulser
Power: 600W; 220V, 50Hz/110V.60Hz; Processing capacity: 0.2-7000 ml; Rotation speed: 11000~30000rpm; Standard working head: 25G

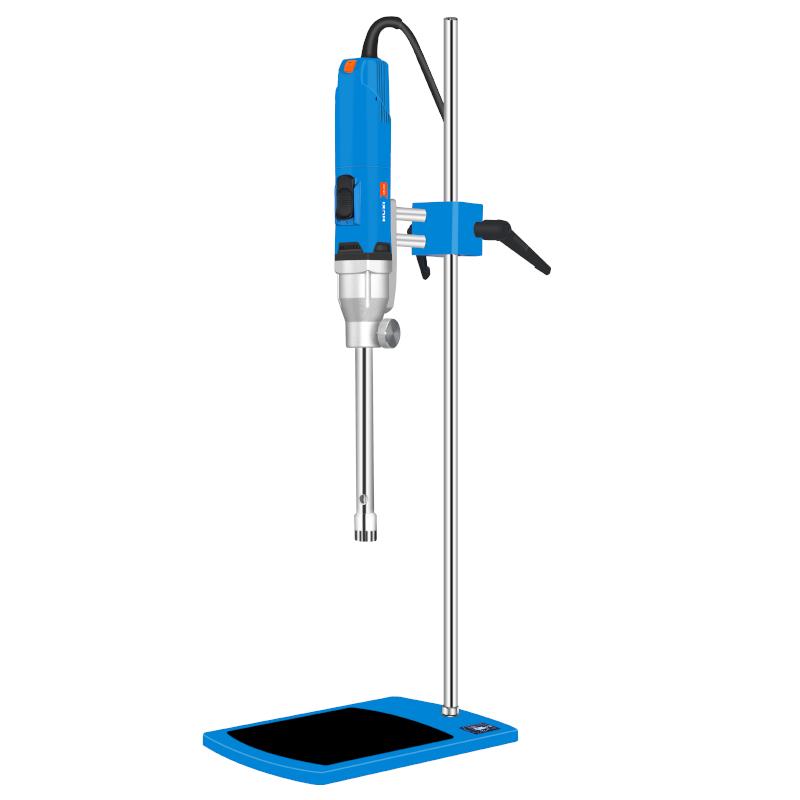

HUXI HR-25Z High Shear Homogenizer 7L/30000rpm Picture

Introduction

HR-25Z High Shear Homogenizing Emulsifier is a mechanical equipment specially designed for sample homogenization and emulsification, which can be equipped with a variety of working heads of different specifications to quickly achieve sample dispersion, homogenization, emulsification, suspension, stirring, etc., mainly suitable for medium and medium viscosity materials, as well as the dispersion, emulsification, homogenization and mixing of solid-containing liquids. This product uses the original imported motor, which greatly reduces the Operating Noise of the instrument and equipment, and can work for a long time.

Features

  • Continuously variable speed, high-precision digital display, strong torque output

  • Double stator structure to multiply the shear effect

  • Equipped with various forms of stator, it can be used interchangeably according to process requirements

  • Double security

Optional cutter heads

specificationThroughput (ml)viscosityMaterial
HR25P-6G0.2-10100316
HR25P-8G1-60100316
HR25P-10G10-150200316
HR25P-18G50-15003000316
HR25P-18F100-15002000316
HR25P-20G50-15003000316
HR25P-20F50-15003000316
HR25P-25GST100-50005000316
HR25P-25G100-50005000316
HR25P-25F100-50005000316
HR25P-25DG100-50005000316
HR25P-25DF100-50005000316
HR25P-25JX100-50008000316
HR25P-25JQ100-50008000316
HR25P-25T1100-50008000316
HR25P-25T2100-50005000316
HR25P-25T3100-50005000316
HR25P-25T4100-50005000316
HR25P-25T5100-50005000316
HR25P-25T6100-50005000316
HR25P-30JX250-1000015000316
HR25P-30JQ250-800015000316

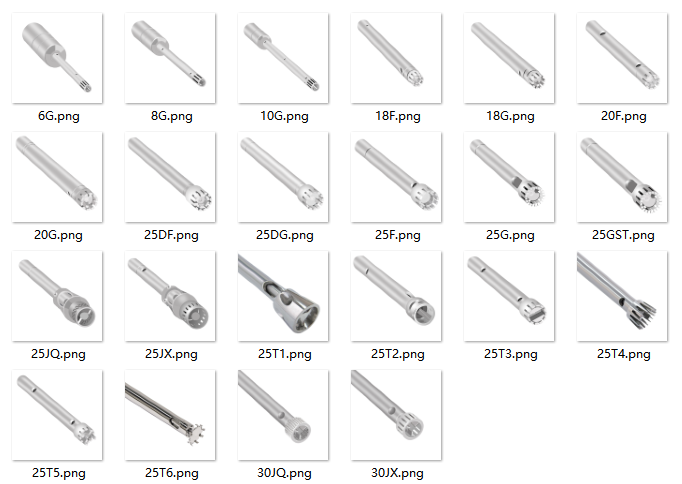

HR-25Z High Shear Homogenizing Emulsifier Bit 1
