Defelsko PosiTector 6000 NS3 zinc layer thickness Measurement Instrument nonconductive Coating thickness Measurement Instrument

SE
Advanced eddy Current thickness measurement, split N probe, touch screen operation, thickness measurement range 0~1500μm, error +/- 1%, with calibrate certificate, supporting PC software, supporting Bluetooth connection, saving 100 screen images.
$1535.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 NS3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 NS3 Coating Thickness GaugeDetails

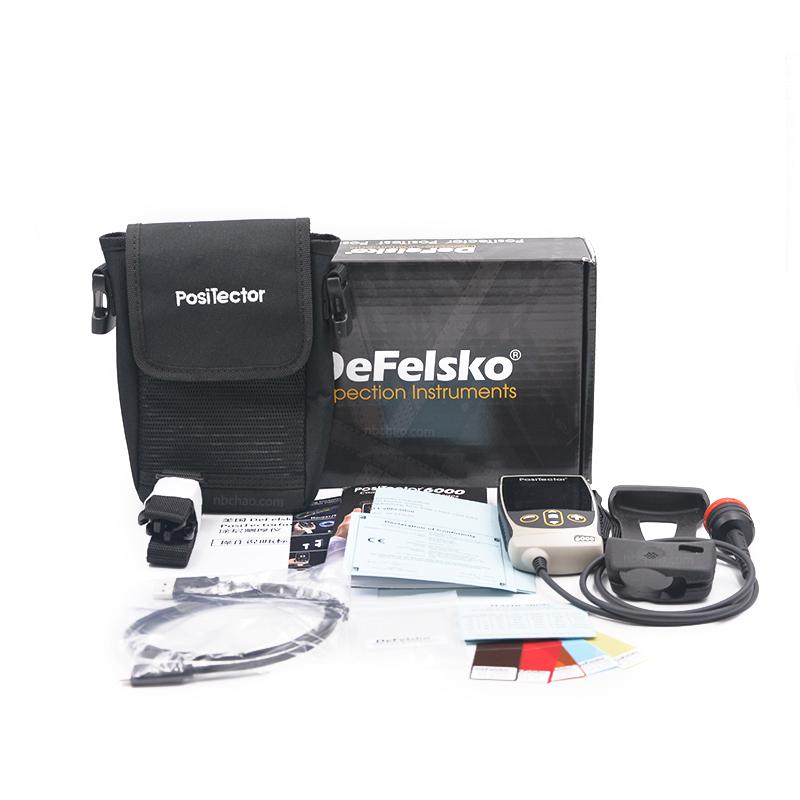

Defelsko PosiTector 6000 NS3 Coating Thickness GaugePacking list

SKU
NB000465
Measurement principle
Eddy Current
Measurement range
0~1500μm
margin of error
±1%
Resolution
0.1μm
probe
NS3 Probe (Universal)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
140G (without battery)
Machine size
137*61*28mm
Data storage
250000 Measured values, 1000 groups
Test environment
Non-ferrous metal substrate nonconductive coating environment
Defelsko calibrated standard
STDS1、STDA1
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute
PosiTector 6000 NS3
Coating Thickness Gauge
Advanced eddy Current thickness measurement, split N probe, touch screen operation, thickness measurement range 0~1500μm, error +/- 1%, with calibrate certificate, supporting PC software, supporting Bluetooth connection, saving 100 screen images.
Defelsko PosiTector 6000 NS3 zinc layer thickness Measurement Instrument nonconductive Coating thickness Measurement Instrument Picture

Coating Thickness Gauge selector

Introduction

The Defelsko PosiTector 6000 NS3 zinc Thickness Gauge is an external probe type eddy current coating Thickness Gauge suitable for measuring the thickness of non-conductive coatings on non-ferrous metal surfaces.The PosiTector 6000 NS3 Zinc Thickness Gauge is an advanced coating Thickness Gauge with data saving, portable, easy one-handed operation, and user-friendly menu-based navigation. Defelsko PosiTector 6000 NS3 涂层测厚仪探头

Advanced features:

The high-contrast reversible color LCD screen can store up to 100,000 readings and can be divided into up to 1,000 combined subgroups.

Transfer data via USB to a computer or phone or printer via Bluetooth wireless technology.

It can store the calibration data to facilitate the measurement of different substrates

One-handed operation, ready to use – no calibration adjustment is required for the vast majority of tests


New features have been added to the new version of the Defelsko PosiTector console in the United States

Introducing the Defelsko brand

Defelsko PosiTector 6000 NS3 Zinc Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Advantages of the protective features of the Defelsko PosiTector 6000 NS3 zinc layer Thickness Gauge

Other features of the Defelsko PosiTector 6000 NS3 Zinc Layer Thickness Gauge

Typical application area of the Defelsko PosiTector 6000 NS3 zinc layer Thickness Gauge

Why choose the Defelsko PosiTector 6000 NS3 Zinc Layer Thickness Gauge from the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QWhat instrument is good for measuring galvanized film thickness?
A Recommended Defelsko PosiTector 6000 NS3 zinc layer Thickness measurement instrument, which uses eddy Current principle, specially used for the measurement of non-ferrous metal surface galvanized film thickness, measurement range 0-1500 μm, accuracy up to +/- 1%, easy to operate with one hand.
QWhat field inspection scenarios is this thickness gauge suitable for?
A Film thickness detection for steel structures and pipeline galvanized coatings, because its NS3 Probe can stably measure nonconductive coatings, IP65 Protection Rating adapts to various industrial environments, more than 180 readings per minute are very efficient, and 100,000 sets of data can be stored for on-site recording.
QCoating thickness test on aluminum alloy, high-end
A This eddy Current Thickness Gauge can measure aluminum alloy coatings
QIt is recommended to test the Aluminum Panel substrate of the aluminum cover and measure the thickness of the Resin film
A This one is ok.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QMeet ASTMB244 Coating thickness gauge
A PosiTector 6000 NS3 Coating thickness gauge, please refer to it.
QWe are doing lame plating. Can this measure the Film thickness of the powder sprayed on the profile?
A Sure.
