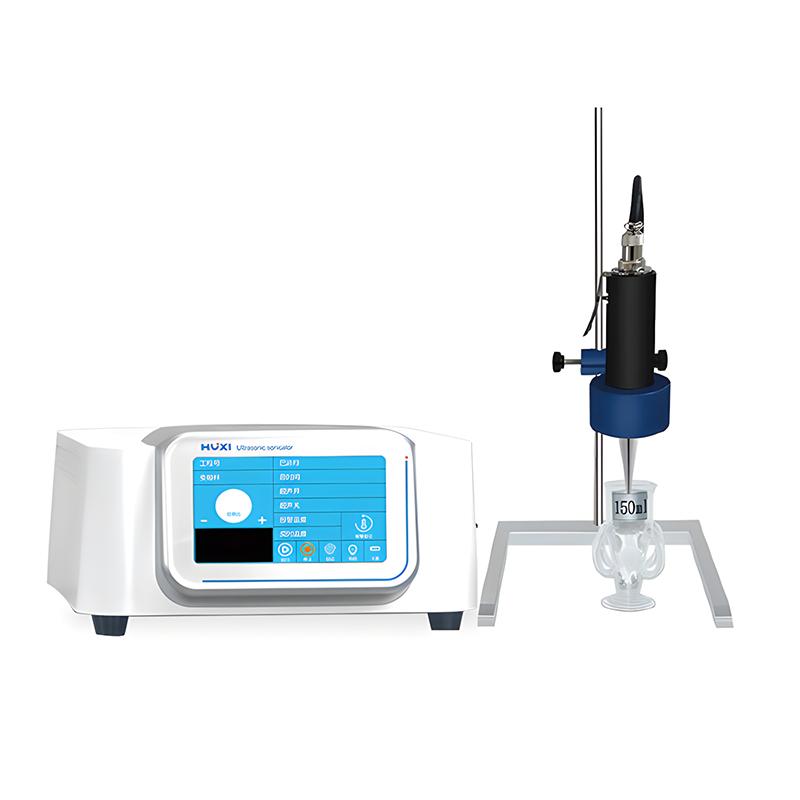

HUXI HX-400 Handheld ultrasonic cell crushing instrument
SE
HX-400
HuXi HX-400 Handheld ultrasonic cell crushing instrumentSPEC
HuXi HX-400 Handheld ultrasonic cell crushing instrumentDetails
HuXi HX-400 Handheld ultrasonic cell crushing instrumentPacking list
- SKU
- NB046577
- Power
- 4-400W continuously adjustable
- Crush Capacity
- 0.1-300 ML (the corresponding horn needs to be selected)
- Display mode
- True color 7-inch capacitive touch screen display
- single ultrasound time
- 0.1-99.9S
- single gap time
- 0.1-99.9S
- Total time (ultrasound + gap)
- 1-99H59M59S
- Frequency range
- 20-30KHz
- Temperature range
- 0-100 degrees (optional low temperature thermostatic)
- Alarm function
- Time, overload, no-load, over-temperature
- Standard horn
- Φ5(mm)
- Optional horn
- Φ2、3、5、6(mm)
- data storage
- 20 groups
- Power supply (optional 110V)
- 220V/110V 50Hz/60HZ
- Instrument size
- 410*225*290mm
- Control mode
- MCU + TFT touch
- Optional function
- Computer communication + data printing
- Voice alarm and prompt function
- Yes.
HX-400 handheld ultrasonic crusher is a multi-functional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquids. It is used for cell grinding, emulsification, dispersion, homogenization, extraction, defoaming, cleaning, preparation of nanomaterials and accelerating chemical reactions. The instrument adopts liquid crystal display, with two Operating Modes: automatic and manual (foot pedal), ultrasonic time, power arbitrarily stable, sample temperature detection display, frequency automatic tracking and other functions. Ultrasonic cell disruptor for small volume sample processing.
Features
● The integrated design of the probe and the main engine, small size, large processing capacity, compact structure, and the integrated design of the ultrasonic vibration system has the advantages of high efficiency, energy saving and portability;
● It can be manually controlled ultrasonic, or shelf-fixed ultrasound, especially suitable for micro or small sample processing;
● The luffing rod is made of titanium alloy material, which has the characteristics of high strength, high sound velocity, good corrosion resistance and heat resistance, so as to prolong the service life of the instrument.
