Specifications
| Power Supply | 220V/50-60Hz |
| Power | 2000W |
| Drive mode | piezoelectric ceramics |
| show | Touch screen display |
| Temperature display | -10~199℃ |
| adjust | Power 30~100% adjustable |
| Work head material | Titanium alloy T1-6AL-4V, amplitude ratio: 1:1.5 Category: Exponential |
| Specifications | Diameter 25-35mm |
| Work head type | exponential |
| Minimum immersion depth | 150-300mm |
| Emulsification display | LCD display |
| Emulsification Input Power | 1050W |
| Emulsification output power | 750W |
| Drive motor | Brushless DC motor, can work continuously |
| Emulsification speed | Rotation speed 4000-26000rpm adjustable |
| Emulsification head material | 304/316L optional |
| Maximum shear speed | 47m/s |
| Diameter of emulsification head | Stator outer diameter 30mm |
| Processing samples | Suitable for Paste, Fiber, Liquid, Resin |
| Cable length | 150cm |
| Fuse Specifications | 20A |
| Processing Capacity | 2L-10L |
Packing list

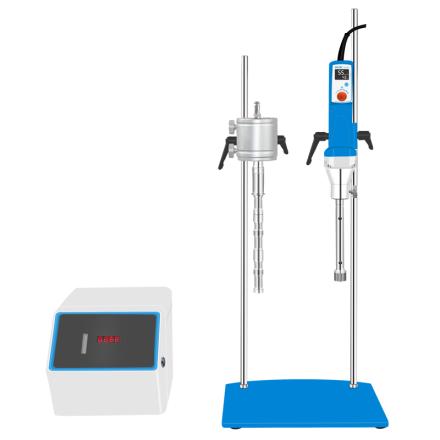

Host X1, vibration system X1, power cord X1, ultrasonic cable X1, HR-25D Mulser host X1, 30JX cutter head X1, mounting seat X1, stainless steel pole X2, aluminum alloy 16 * 14 * 14 square chuck X2, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/46591/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
