TQC VF2359 cross-cut blade 11 teeth 1mm for CC1000 series

SE
Multi-blade, number of teeth 11, spacing 1mm; sharp wear-resistant stainless steel material; meets ASTM3359 standard; for soft substrates within 60μm.
$783.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

TQC sheen VF2359 Cross-cut bladeSPEC

TQC sheen VF2359 Cross-cut bladeDetails

TQC sheen VF2359 Cross-cut bladePacking list

SKU
NB004662
Number of teeth
11 teeth
Tooth spacing
1mm
Application standard
ASTM D3359
Applicable film thickness environment
0~60µm (soft substrate)
Appearance size
The round face cutter has eight cuts for a longer service life
VF2359
Cross-cut blade
Multi-blade, number of teeth 11, spacing 1mm; sharp wear-resistant stainless steel material; meets ASTM3359 standard; for soft substrates within 60μm.
TQC VF2359 cross-cut blade 11 teeth 1mm for CC1000 series Picture

Specifications

modelTooth spacing (mm)Number of teethincisionApplicable substrateSuitable for hundred grid knivesStandards compliant
VF2355
16Round cutter has eight cuts and lasts longerSolid substrates with coating thickness less than 60 micronsCC1000ISO 2409
VF23572Soft substrates with coating thickness less than 60 microns
VF23583Solid substrates with coating thickness less than 60 microns
VF2359111Soft substrates with coating thickness less than 60 micronsASTM 3359

CC1000 hundred grid blade applicable range

ISO 2409:

 1mm intervals, suitable for solid substrates with coating thickness less than 60 microns

 2mm intervals, suitable for soft substrates with coating thickness less than 60 microns

 2mm intervals, suitable for all substrates with coating thickness between 61 and 120 microns

 3mm intervals, suitable for all substrates with coating thickness between 121-250 microns

ASTM D3359:

 1mm intervals, suitable for coating thickness less than 50 microns

 1.5mm intervals, suitable for coating thickness between 50-125 microns

CC1000 hundred grid blade model

ASTM compliant TQC cutter head (only for CC1000)

VF2359 tooth spacing 1 mm

VF1861 tooth spacing 1.5 mm

TQC cutter head according to DIN-ISO standard (only for CC1000)

VF2355 tooth spacing 1 mm

VF2357 tooth spacing 2 mm

VF2358 tooth spacing 3 mm

Safety Precautions

The 100-grid blade is sharp, so be careful when using it;

Please use the box to store the knife.

Detail image

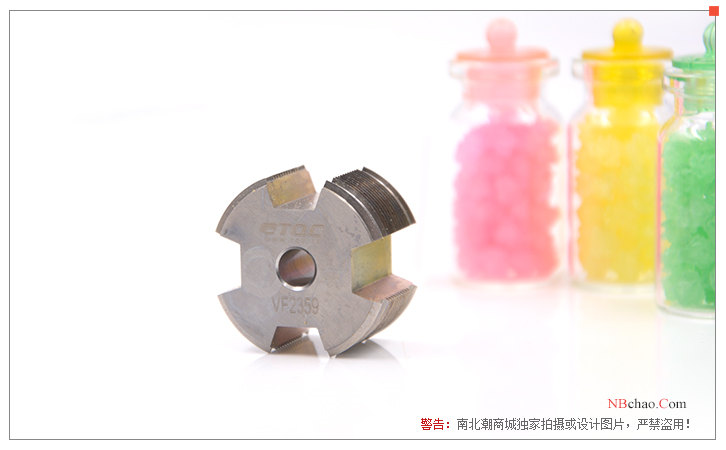

TQC VF2359 cross-hatch blade front detail

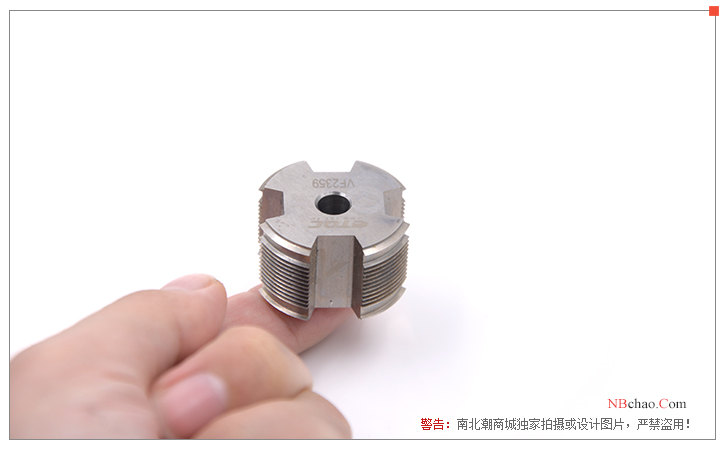

TQC VF2359 cross-hatch blade display diagram

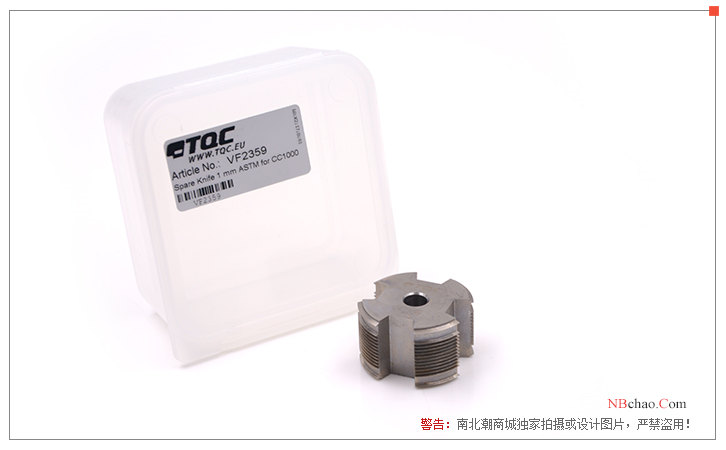

TQC VF2359 cross-hatch blade packaging details

Actual pictures

TQC hundred grid blade

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

FAQ
QDetermination of water-based interior-wall Coating adhesion, is this cross-cutting knife suitable?
A This model is suitable for the determination of water-based inner and outer wall Coating adhesion in architectural coatings. The cross-cut test is mainly carried out with knives, and the firmness of the Coating to the substrate is judged according to the number of squares of the film peeling. Use a sharp blade and a scale steel ruler to cut 11 cuts with a distance of 1mm in the vertical and horizontal directions of the test plate, and the vertical and horizontal cuts intersect into 100 squares. So it is applicable.
QCan this cross-cut blade be applied to ASTMD3359?
A OK
QCross-Cut Tester is generally better to use 11-tooth blades or 6-tooth blades
A Hello, it should be determined according to your actual experimental needs. Although the number of teeth specified in the new film grid test standard is 6, the original standard is 6 or 11, which still depends on the actual situation.
