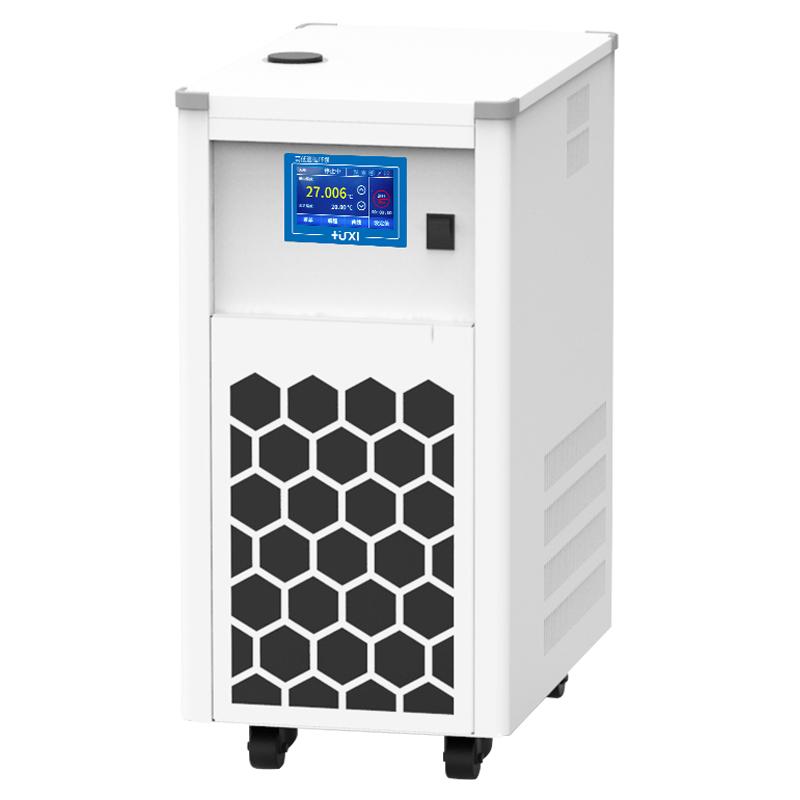

HUXI HLX-4009G high-low temperature Refrigerated Circulating Chiller 9L/-40~100 ℃

HLX-4009G

High-low temperature coolant Circulating Chiller

Water tank volume 9L, Temperature range -40~100 ℃, Stability +/- 0.5 ℃, Cooling capacity 1500W, Pump Flow rate 22L/min, Pump pressure 1bar

Introduction

HLX series high-low temperature cooling Circulating Chiller is a circulation device that provides heat and cold sources for reactors, rotary steaming, etc., and has laboratory instruments and equipment with dual functions of heating and refrigeration. It is mainly used in the fields of chemical, pharmaceutical and biological fields supporting glass reactors, rotary evaporators, fermentation tanks, calorimeters, and is used in petroleum, metallurgy, medicine, biochemistry, physical properties, testing and chemical synthesis and other research departments, colleges and universities, factory laboratories and metrology and quality inspection departments.

Features

• The imported compressor is equipped with proportional refrigeration technology and PID technology, and the refrigeration system has a long service life and is more energy-saving;

• Built-in pressure suction pump, large flow, long head, stable water flow, can withstand the temperature of 80~300 °C for a long time;

• High temperature direct drop technology (CIT technology), which can directly cool down even at high temperatures;

• The pump head supports short-term idling to prevent operation errors and can test the equipment;

• Equipped with a liquid drain port to prevent accidents;

• Resistant to metal and non-metal hard impurities and fibers brought in from the outside, it has a long service life;

• Imported temperature sensor: four-wire imported PT100 temperature sensor, which can be calibrated at single-point, two-point and three-point temperature;

• Low liquid level protection: light and sound can be reminded at the same time when the alarm is made.

Packing list：host X1, insulation pipe X2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
