LEEB Type C Hardness Gauge Impact unit for steel and cast/alloy tool steels

SE
The LEEB Type C Impact Device is an Optional accessory to the LEEB 120 and LEEB 140 Leeb Hardness Testers for the measurement of steel and cast/alloy tool steel materials.
Model：
Certificate
Contact
Details SPEC Con

Leeb Type C Impact device (Hardness Gauge)SPEC

Leeb Type C Impact device (Hardness Gauge)Details

Leeb Type C Impact device (Hardness Gauge)Packing list

SKU
NB004665
Impact energy
2.7mJ
Impact device Mass
3.0g
Ball Hardness
1600HV
Ball head diameter
Ball head material
Ball head material
tungsten carbide
Impact device diameter
20mm
Impact device length
141mm
Impact device Mass
75g
Maximum Specimen Hardness
1000HV
Specimen Surface Roughness
0.4µm
Minimum specimen Weight
>1.5kg
Need stable support
0.5~1.5kg
Dense coupling is required
0.02~0.5kg
Minimum test Film thickness
1mm
Minimum depth of hardened layer
≥0.2mm
Hardness 300HV Indentation Diameter
0.38mm
Hardness 300HV Indentation
12µm
Hardness 600HV Indentation Diameter
0.32mm
Hardness 600HV Indentation
8µm
Hardness 800HV Indentation Diameter
0.35mm
Hardness 800HV Indentation
7μm
Application of impact device
C-type impact force is small, the surface damage is small, does not destroy the hardened layer, suitable for measurement of small thin parts and surface hardened layer.
Type C
Impact device (Hardness Gauge)
LEEB Type C Hardness Gauge Impact unit for steel and cast/alloy tool steels Picture

product description

Leeb C-type impact device is an optional accessory for Leeb120 and Leeb140 Leeb Hardness Testers for measuring steel and cast steel/alloy tool steel materials.

Product testing range

MaterialHardness systemImpact device
D/DCCGDL
steel and cast steelHRC17.1～68.520.0～69.5
20.6～68.2
HRB59.6～99.6
47.7～99.937.0～99.9
HB140～65180～68390～646150～646
HV83～97680～996
85～950
HS26.4～99.531.9～102.3
26.5～99.4
forged steelHB142～651


alloy tool steelHRC17.1～67.120.0～69.5

HV83～97680～996

Stainless steelHRB59.6～99.6


HB140～651


HV83～976


grey cast iron
140～334
92～326
Ductile IronHB140～387
140～364
cast aluminum alloyHB30～159


copper zinc alloyHB40～173


Copper-tin alloy (bronze)HB60～290


pure copperHB45～315


Pictures

Libo G/DL/D+15/D/C/DC Hardness Tester impact device display

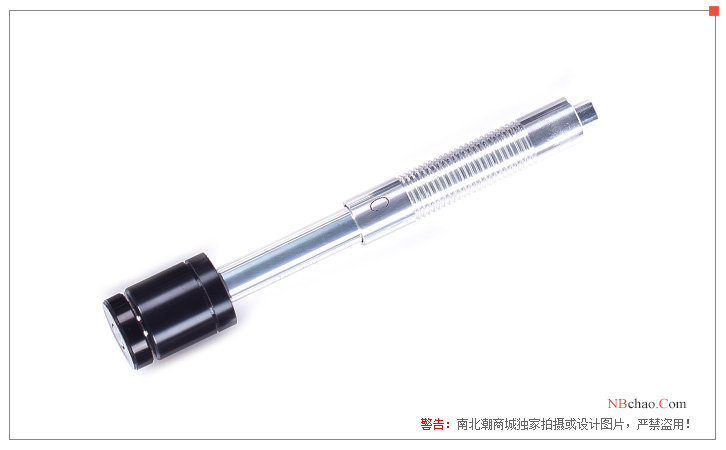

Libo C-type Hardness Tester impact device display
