Digital push-pull machine, Haibao HG-20K digital tensIon Meter 20KN/0.01KN
SE
HG-20K
HBO HG-20K Force Gauge (Digital Display)SPEC
HBO HG-20K Force Gauge (Digital Display)Details

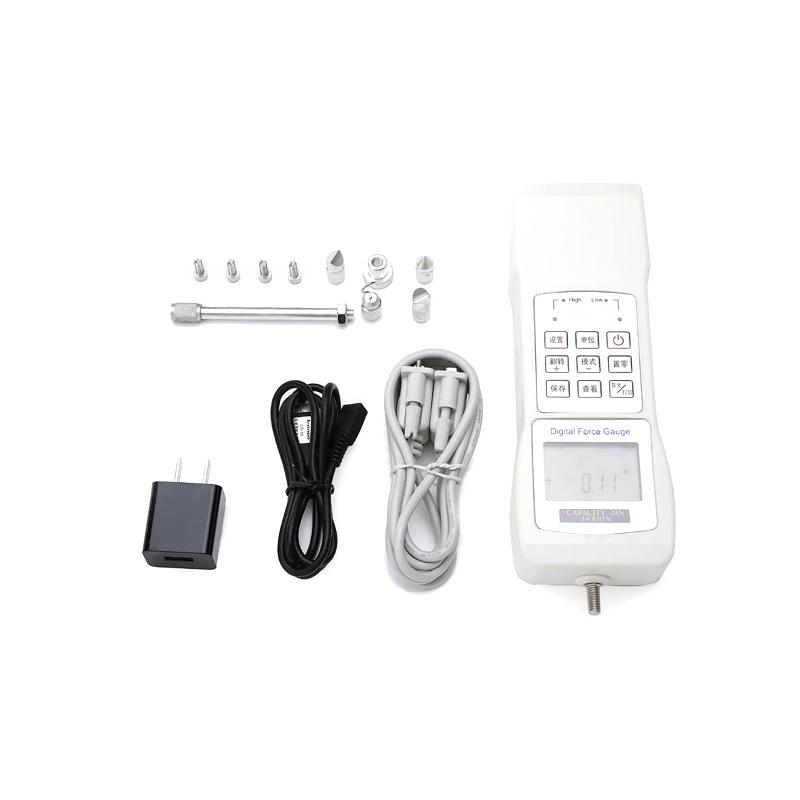

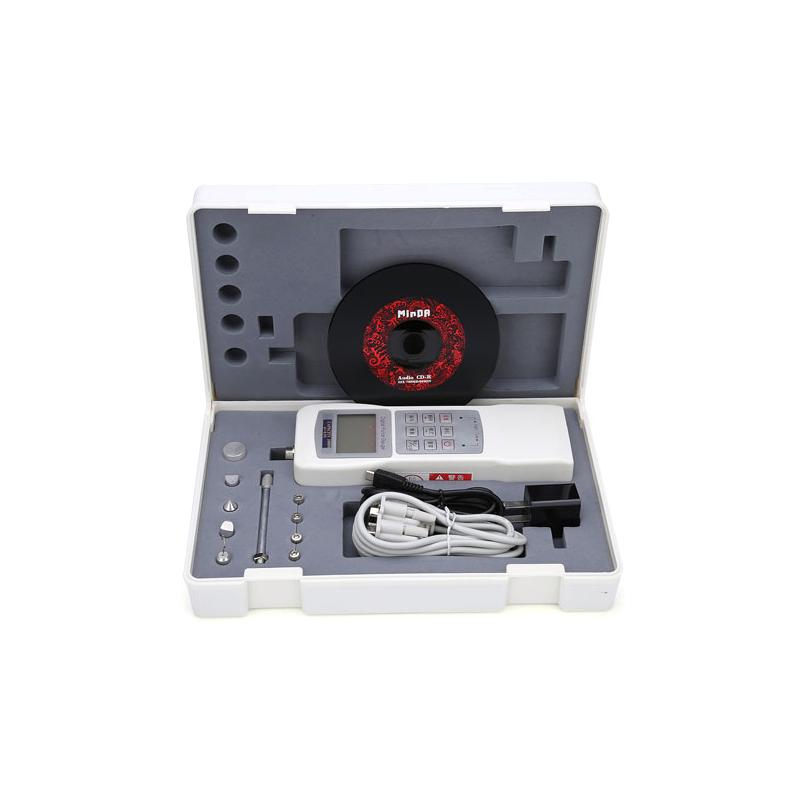

HBO HG-20K Force Gauge (Digital Display)Packing list
- SKU
- NB004667
- display
- digital display
- Measured value
- 20KN、2000kg、4400lb
- resolution
- 0.01kN、1kg、1lb
- Sensors structure
- external
- Precision level
- Level 0.5
- error of indication
- ≤±0.5%
- Power Supply
- Lithium Battery: 3.7V/1000mAh
- Dimension
- 208Mm * 70mm * 41mm (instrument)
- Weight
- 0.35Kg (instrument)
- unit
- N、KN、Kgf、gf、lbf、tf
- ADC conversion speed
- 15Hz~480Hz
- Operating temperature
- 0~40℃
- Storage temperature
- -20℃~70℃
- Relative Humidity
- 15%~80%RH
- Operating temperature
- No vibration and corrosion medium around
- Installation size
- 40Mm * 80mm screw hole: 4-M4 (instrument)
- Charger
- AC Input：220V/50HZ、DC Output：5V/1A
Introduction
HG-20K digital display push-pull machine is Haibao HG series digital display push-pull gauge. The maximum measurement value of HG-20K is 20KN, and the load division value is 0.01KN.HG-20K digital display push-pull Tester is an external sensor type, suitable for push-pull load test, insertion force test, destruction test, etc. of various products.
Product Structure

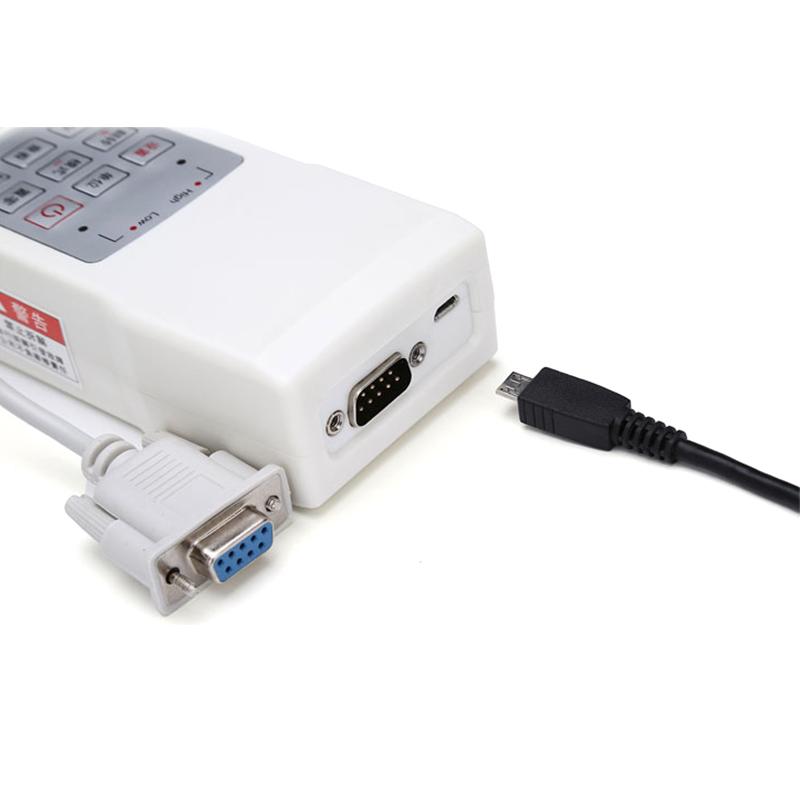

The structure of HG-20K digital push-pull machine includes: level signal output interface, communication interface, power adapter jack, contact connecting rod, display window, buttons, upper limit indicator light, lower limit indicator light, etc. Specifically as shown below
Specification Dimensions
Calibration method
1. Choose an environment without wind and vibration sources for calibration.
2. When the digital push-pull force gauge is in the off state, press and hold the mode button for a long time, and then press the ON/OFF button, and wait for the screen to display "DEFAU".
3. Release the button, press the mode button, the screen will display "USEr", and then press the setting button to enter the basic on-point calibration.
4. After the belt data is stable, press the SET button to complete the basic point calibration and enter the high point calibration.
5. Press the up and down arrow keys to select the force value to be applied and wait for the data to stabilize, then press the setting key to complete the user calibration, and the digital push-pull force gauge enters the test interface.
Indicator light description
The upper and lower limit automatic alarm indicators are red light-emitting diodes, which emit red light when the upper limit is exceeded, and red light when it is lower than the lower limit, and there is no light display when it is normal.
