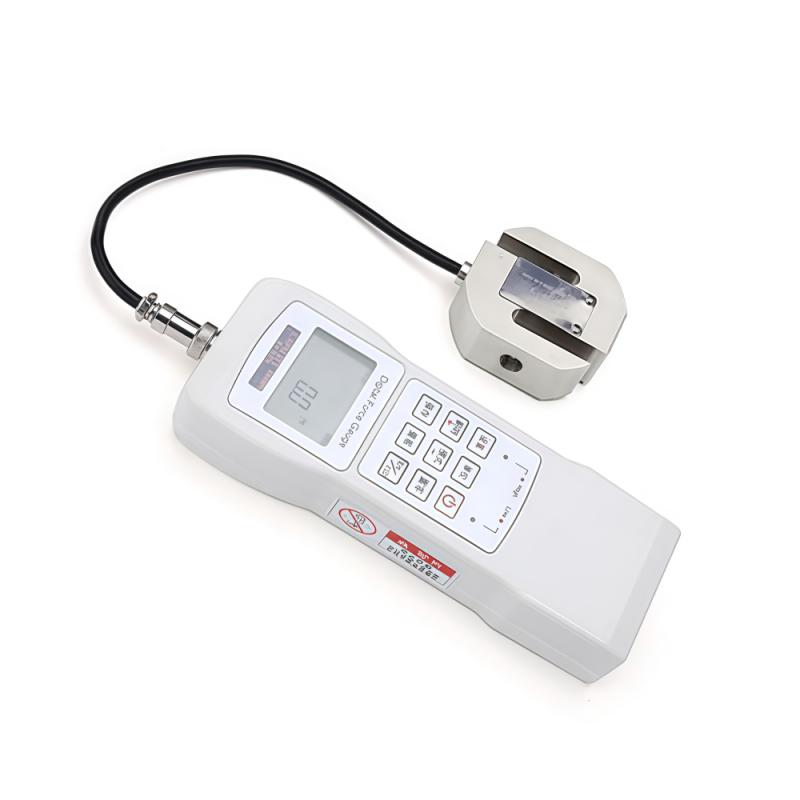

Digital Force Gauge Hypertherm HG-30K Thrust Gauge 30KN/0.01KN

HG-30K

Force Gauge (Digital Display)

Digital display, Maximum Measured value 30KN, 3000kg, 6600lb, Minimum Measured value 0.01KN, 1kg, 1lb, Sensors structure Sensors external, error of indication +/- 0.5%, power supply NiMH battery 6V/1500mAh, unit Kgf, N, Lbf.

Introduction to HG-30K

Haibao digital push-pull force gauge, model HG-30K, is a general-purpose portable push-pull load Tester. The measured value of HG-30K can reach 30KN, and the load division value is 0.01KN.Haibao digital push-pull force gauge has the characteristics of small size, light weight, easy to carry, functional and high precision.

Product Structure

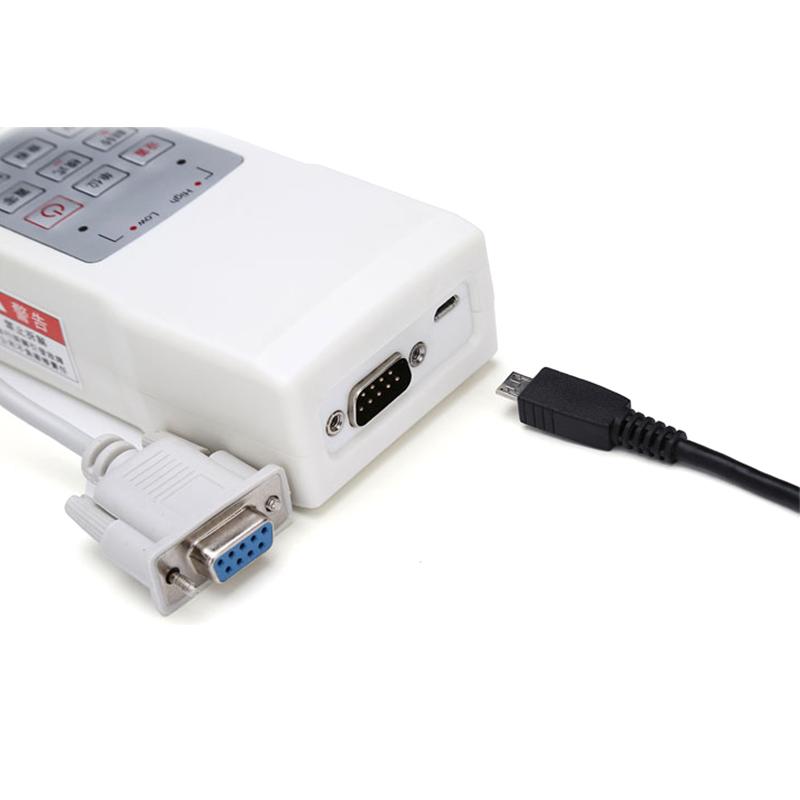

The structure of HG-10K/20K/30K/50K digital push-pull gauge includes: level signal output interface, communication interface, power adapter jack, contact connecting rod, display window, buttons, upper limit indicator light, lower limit indicator lights etc. Specifically as shown below

Specification Dimensions

Calibration method

1. Choose an environment without wind and vibration sources for calibration.

2. When the digital push-pull force gauge is in the off state, press and hold the mode button for a long time, and then press the ON/OFF button, and wait for the screen to display "DEFAU".

3. Release the button, press the mode button, the screen will display "USEr", and then press the setting button to enter the basic on-point calibration.

4. After the belt data is stable, press the SET button to complete the basic point calibration and enter the high point calibration.

5. Press the up and down arrow keys to select the force value to be applied and wait for the data to stabilize, then press the setting key to complete the user calibration, and the digital push-pull force gauge enters the test interface.

Indicator light description

The upper and lower limit automatic alarm indicators are red light-emitting diodes, which emit red light when the upper limit is exceeded, and red light when it is lower than the lower limit, and there is no light display when it is normal.

Pictures

patent certificate

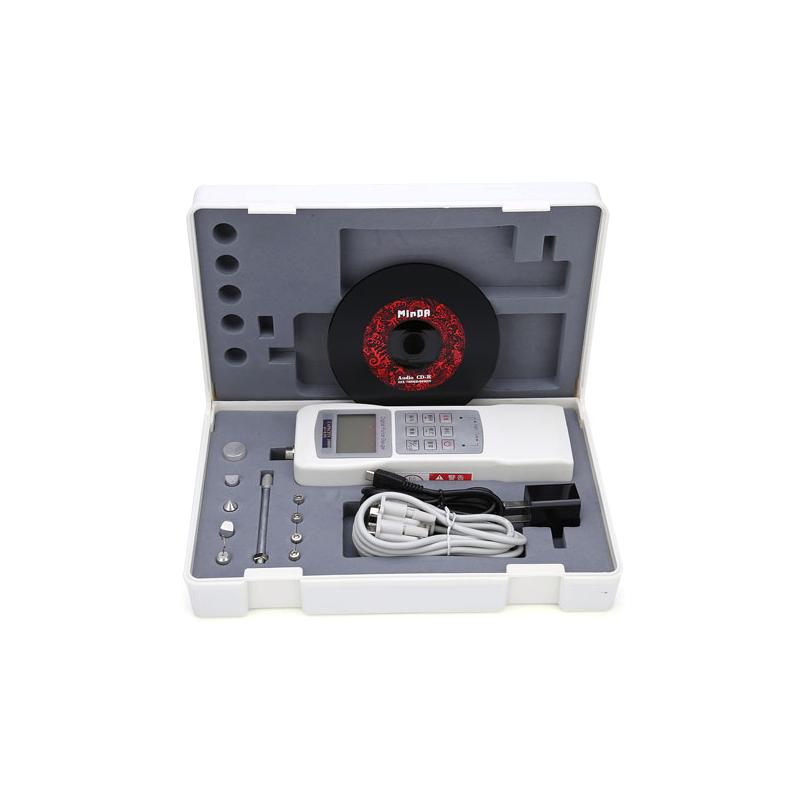

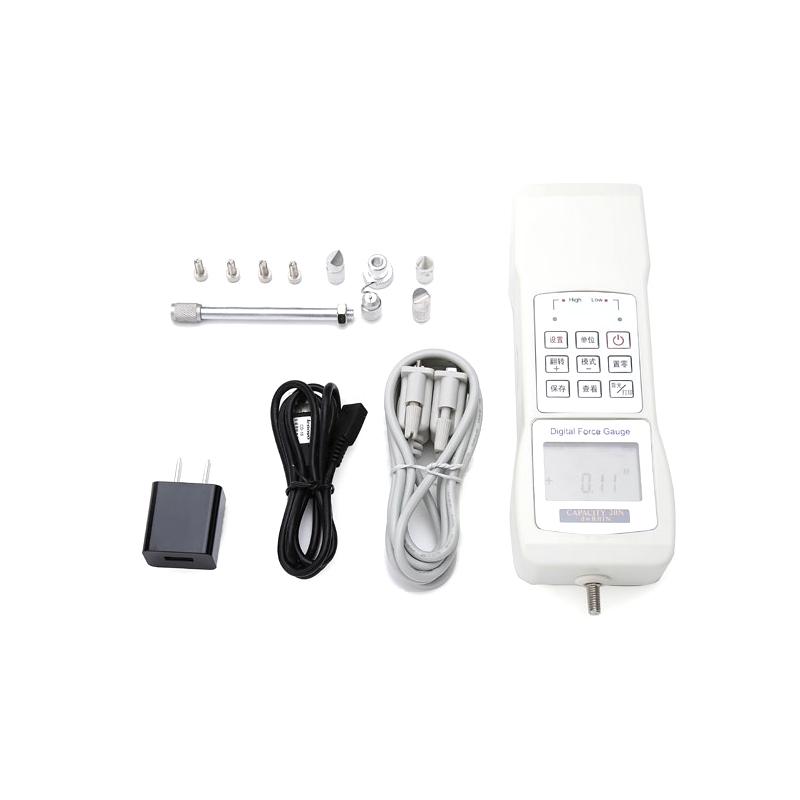

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
