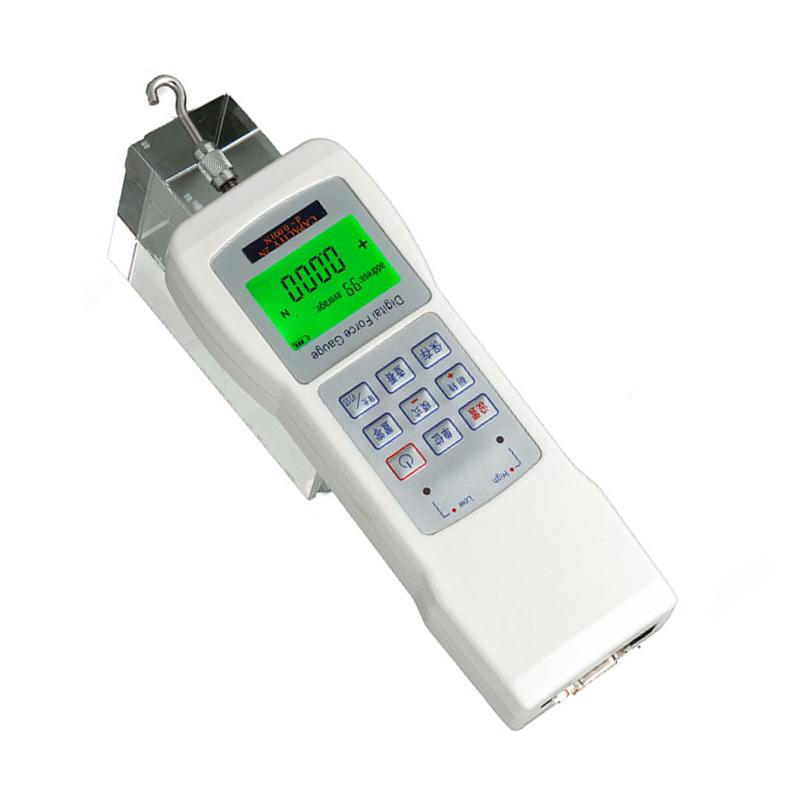

Small Force Gauge HG-5 Newton Force Gauge 5N/0.001N

HG-5

Force Gauge (Digital Display)

Measured value 5N, 0.5kg, 1.1lb, load Graduation 0.001N, 0.1g, 0.0001lb, Sensors structure Sensors built-in, error of indication 0.5%, unit Kgf, N, Lbf.

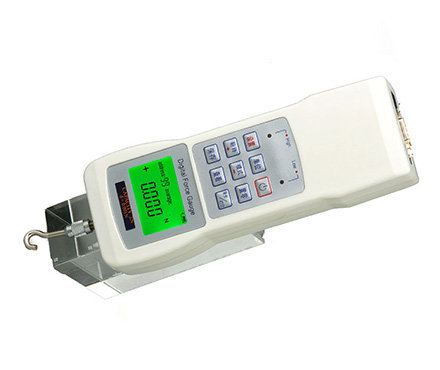

Introduction to HG-5 small push-pull force gauge

Hypertherm's HG series push-pull force gauge is a portable small push-pull force gauge. The HG-5 small push-pull force gauge measures a maximum load value of 5N and a load division value of 0.001N. The HG-5 small push-pull force gauge has a built-in sensor, has peak hold and peak automatic release functions, and can set the acceleration of gravity. It is an intelligent and high-precision digital display small push-pull force gauge.

Product Structure

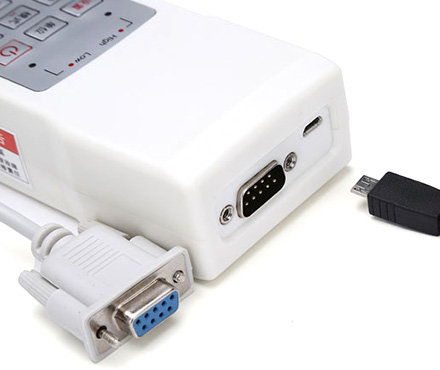

The structure of the HG-5 small push-pull force gauge includes: upper limit indicator light, lower limit indicator light, buttons, display window, contact connecting rod, communication interface, power adapter jack, and level signal output interface. The details are as follows:

Specification size chart

Features

1. HG-5 small push-pull force gauge has the characteristics of high accuracy, high resolution and high stability.

2. Freely set the upper and lower limit comparison values, and can automatically sound alarm and level signal output.

3. Test direction display (pull force +, thrust force -).

4. Adopt segmented LCD display and green backlight screen.

5. HG-5 small push-pull force gauge can store 99 sets of test data and automatically calculate the average, maximum and minimum values ​​of the stored data.

Introduction to display parameters

1) Test value reading area

2) Numerical units, you can choose from three different measurement units: "N", "kgf", and "lbf". When using an external large range, there will also be "kN".

3) Battery power indicator. When the battery power is very low, charge it in time. When the battery power is empty, the HG-2/5/10/20/50 push-pull force gauge will automatically shut down.

4) Memory number where data is stored

5) Data average indication: "Average" means displaying the average value

6) Working mode indication

"Track": weight tracking mode;

"Peak": peak hold mode;

7) Peak hold lock symbol

This symbol will be displayed if a peak is being held in peak hold mode.

8) Push and pull force direction symbols

"+" is displayed during the pull test and "-" is displayed during the push test.

Introduction

Certificate

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
