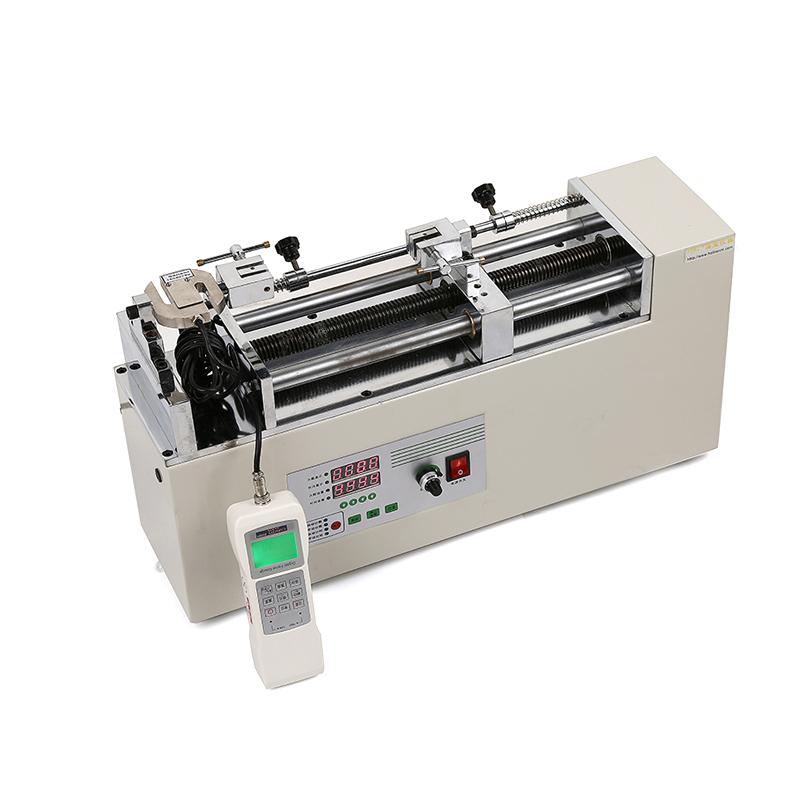

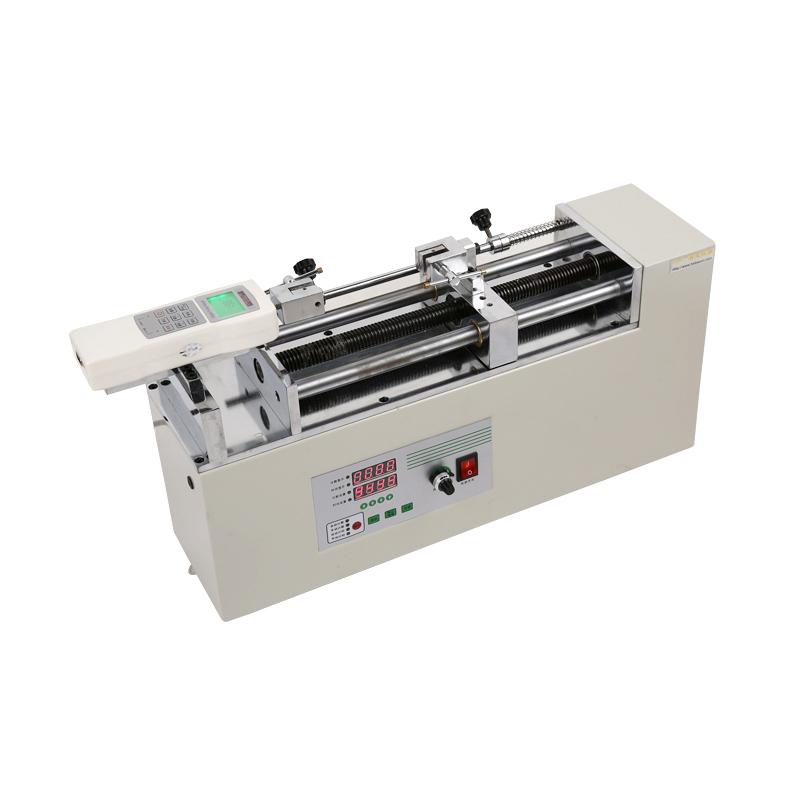

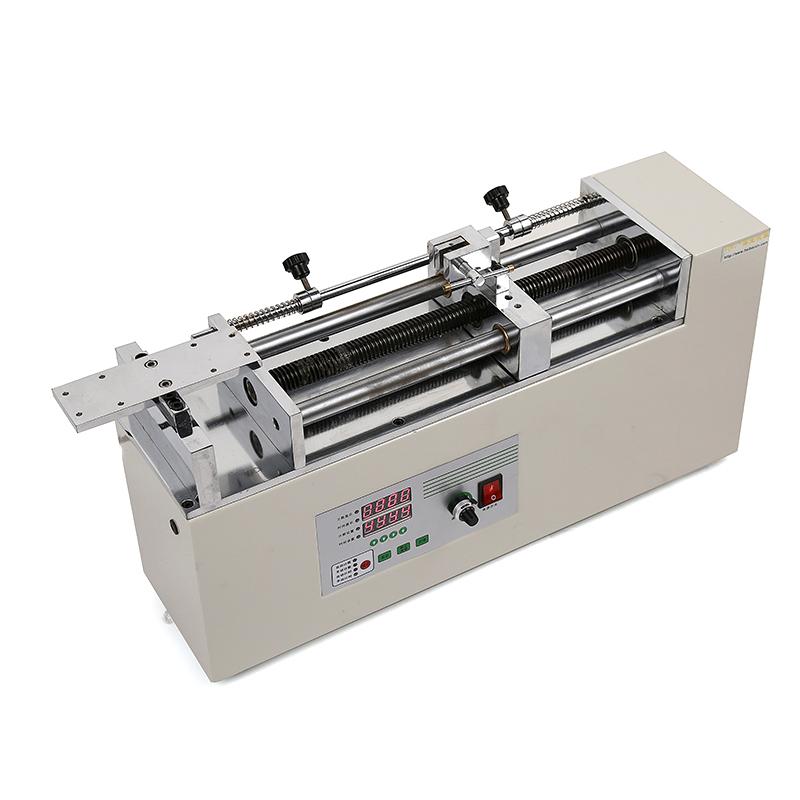

Electric horizontal machine HDT-500 Haibao HF/HG/NK series dynamometer base, load 500N

HDT-500

Electric horizontal machine

Measured value 500N, effective stroke ≤ 400mm, speed 0~400mm/min (stepless speed regulation), with four test modes, optional micro printer.

Introduction of HDT-500 electric horizontal machine

Haibao Instruments HDT-500 electric horizontal machine adopts digital tube screen display and has the function of timing, counting and round-trip testing. The HDT-500 electric horizontal machine can withstand a maximum load of 500N and an effective space of ≤300mm. The HDT-500 electric horizontal machine adopts a double guide rod structure, which has good stability.

HDT-500 electric horizontal machine can be used with HF, HG, NK series push-pull gauges as a load test bench.

Application

HDT-500 electric horizontal machine is suitable for testing fields such as push-pull load, insertion force, destructive test, etc. The application is very extensive.

Features

1. The HDT-500 electric horizontal machine adopts a built-in double-column structure, which has the characteristics of good stability.

2. It has a force holding mode, which can freely set the force value holding time and the designated position reached.

3. It has the function of stopping when pulling and pressing.

4. It can set the set force value to move back and forth, set the force value and the number of movements.

5. Stepless speed regulation, very low noise.

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
