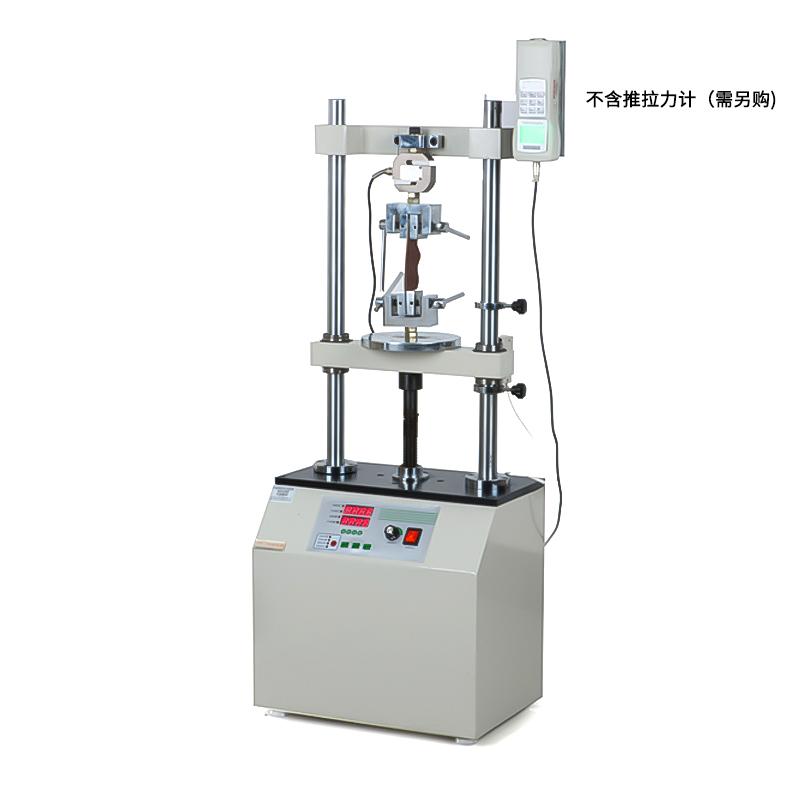

Electric double column vertical machine HDD-1K Hypertherm tensIon Meter machine, load weight 1000N

HDD-1K

Electric double column vertical machine

Measured value 1000N, effective stroke ≤ 400mm, speed 0~500mm/min (stepless speed regulation), digital tube screen display.

Introduction of HDD-1K electric double-column vertical machine

Haibao electric double-column vertical machine, model HDD-1K, is a tensile machine test machine with LCD display. HDD-1K can withstand a maximum load of 1000N, and is suitable for HF/HG/NK series tensIon Meters. The HDD-1K electric double-column vertical machine adopts a low-noise stepless speed-regulating motor for automatic loading, and has the function of stopping when pulling and pressing to ensure the accuracy and safety of the measurement.

Features

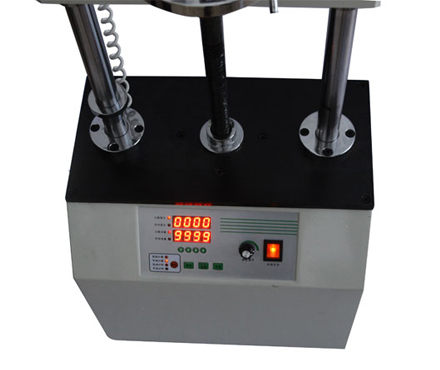

1. It adopts digital tube screen display, and the display is clear.

2. The electric double-column vertical machine HDD- 1K has four Operating Modes: manual counting mode, automatic technology mode, pulling and pressing stop mode, and automatic timing mode.

3. It is suitable for tests such as pulling force test, fatigue test, breaking force measurement, and force retention measurement.

4. It can freely set the force value for reciprocating movement, set the force value and the number of movements.

Product operation method

1. Equipped with the required model of Hypertherm push-pull force gauge

2. Install the tension gauge and machine fixture

3. Fix the specimen and both ends of the fixture

4. Adjust the travel limit protection switch

5. Turn on the main power of the machine and the power of the tensIon Meter, and set the functional parameters of the electric double-column vertical machine HDD- 1K

6. Press the forward or backward key to start the test experiment

7. After the electric double-column vertical machine HDD- 1K is finished, press the forward or backward key to make the machine return to the original initial state

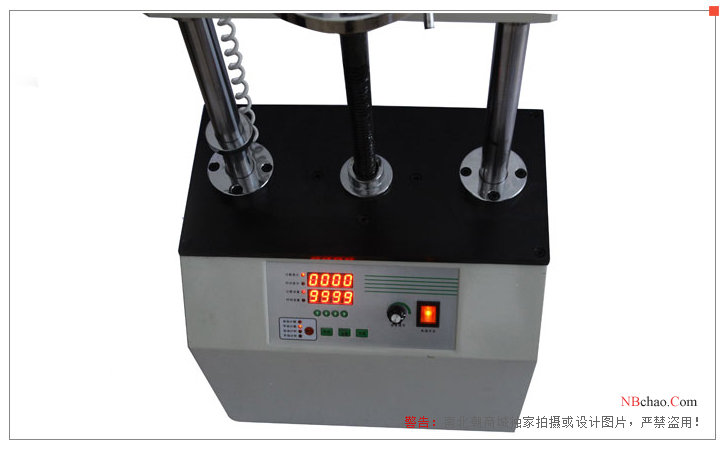

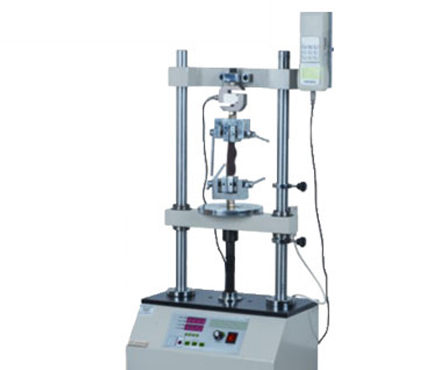

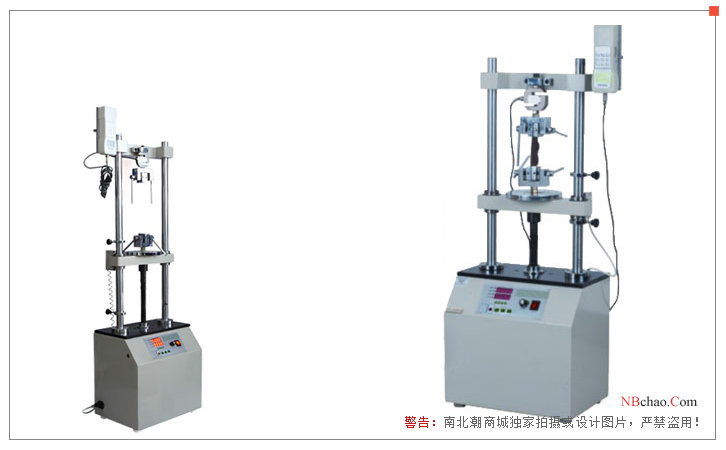

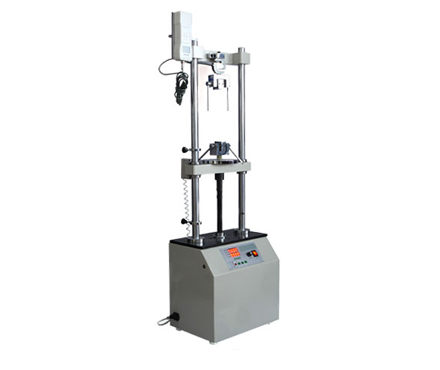

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
