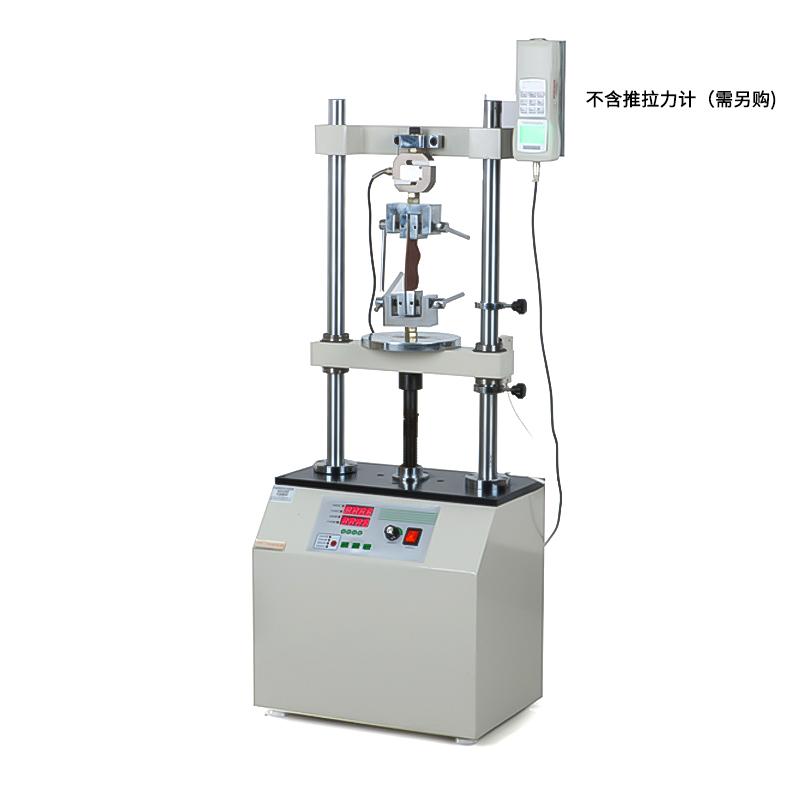

Electric double column vertical machine HDD-2K Hypertherm Force Gauge machine, load 2KN

HDD-2K

Electric double column vertical machine

Maximum Measured value 2000N, effective stroke ≤ 400mm, speed 0~500mm/min (stepless speed regulation), digital tube screen display.

Introduction of HDD-2K electric double-column vertical machine

Haibao HDD-2K electric double-column vertical machine is a digital display electric double-column vertical machine specially used for supporting HF, HG, and NK series push-pull force gauges. The HDD-2K electric double-column vertical machine can withstand the maximum The load value is 2KN, and the effective stroke is 400mm.

The electric double-column vertical machine HDD- 2K can be equipped with a digital display push-pull gauge to realize various functions such as stop when breaking, force value maintenance, applied force limit, and fatigue test.

Features

1. It adopts digital tube screen display, and the display is clear.

2. The electric double-column vertical machine HDD- 2K has four Operating Modes: manual counting mode, automatic technology mode, pulling and pressing stop mode, and automatic timing mode.

3. It is suitable for tests such as pulling force test, fatigue test, breaking force measurement, and force retention measurement.

4. It can freely set the force value for reciprocating movement, set the force value and the number of movements.

Product operation method

1. Equipped with the required model of Hypertherm push-pull force gauge

2. Install the tension gauge and machine fixture

3. Fix the specimen and both ends of the fixture

4. Adjust the travel limit protection switch

5. Turn on the main power supply of the machine and the tensIon Meter power supply, and set the functional parameters of the electric double-column vertical machine HDD- 2K

6. Press the forward or backward key to start the test experiment

7. After the electric double-column vertical machine HDD- 2K is finished, press the forward or backward key to return the machine to its original initial state

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
