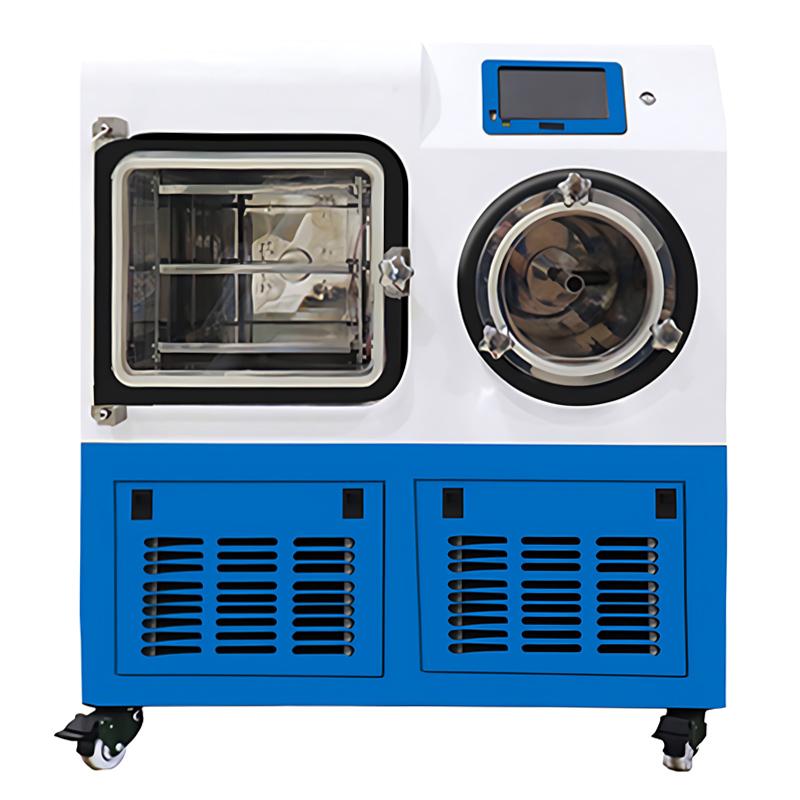

HUXI HXLG-20F Ordinary Silicone Oil Heating Freeze Dryer

HXLG-20F

lyophilizer

Freeze-dried area 0.2 square meters, Shelf silicone oil heating, Shelf temperature -50 ℃ -70 ℃, minimum temperature of frozen trap -60 ℃, ultimate vacuum degree ≤ 10Pa, water capture capacity 6Kg, disc material (liquid) 3L Shelf layers: 2

Introduction

HXLG-20F ordinary silicone oil heating freeze dryer is suitable for freeze drying and strain preservation in biological research, medical pharmaceutical, chemical industry, food processing, colleges and universities and other fields. It is suitable for vacuum freeze-drying preservation of most bacteria, actinomycetes, viruses, bacteriophages, rickettsia, molds and yeasts, but is not suitable for mycelial types, mushrooms, algae and protozoa of molds.

Features

1. Rapid refrigeration, uniform temperature of the inner wall of the cold trap, professional gas diversion technology, good water capture effect;

2. Brand Danfoss compressor, stand-alone hybrid environmental protection refrigeration technology;

3. Equipped with cold trap sample pre-freezing function, no need to equip ultra-low temperature freezer or liquid nitrogen treatment;

4. Color LCD 7-inch touch screen, friendly human-computer interaction interface, configuration lock screen function, optional mobile phone, computer remote control;

5. The main interface of the display screen is simple and clear, showing the parameters such as cold trap temperature, vacuum degree, sample temperature, running time, etc., the operation is simple and direct, and the misoperation authority management is set;

6. The data has the functions of viewing, exporting and deleting, and the freeze-dried data is automatically saved, which can effectively prevent data loss, and supports USB data export;

7. Support lyophilization of ampoules, vials, glass flasks, plasma bottles or discs;

8. The cold trap has the function of independent pre-freezing of samples in the early stage;

9. Configure one-button defrosting function;

10. Built-in maintenance reminder function to remind users of instrument maintenance;

11. One-key automatic air intake function;

12. It has the function of vacuum alarm, which can remind the user whether the vacuum level is normal in time;

13. Equipped with stainless steel anti-corrosion vacuum connecting pipe, with standard KF25 vacuum quick coupling clamp;

14. Optional stainless steel lid comes with standard KF25 vacuum quick coupling clamp.

Packing list：host X1, matching pump X1, bellows X1, tray X1, nitrogen charging connector X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
