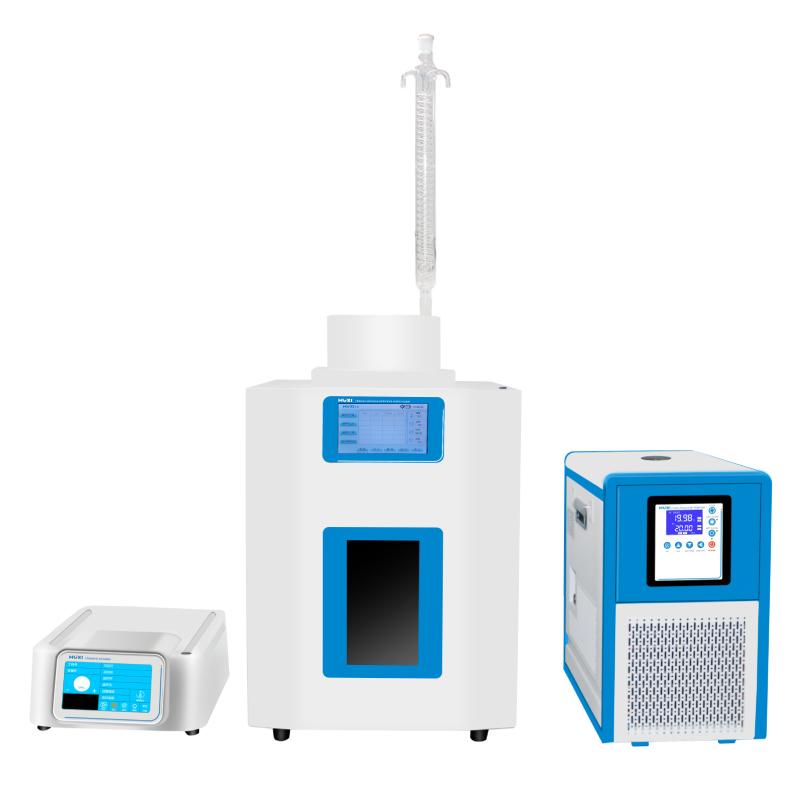

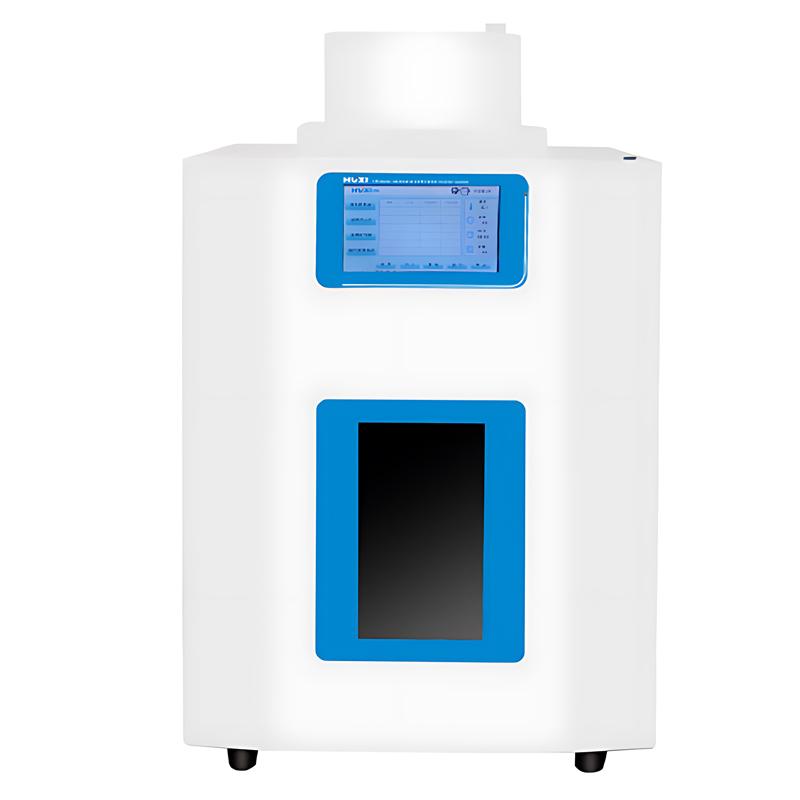

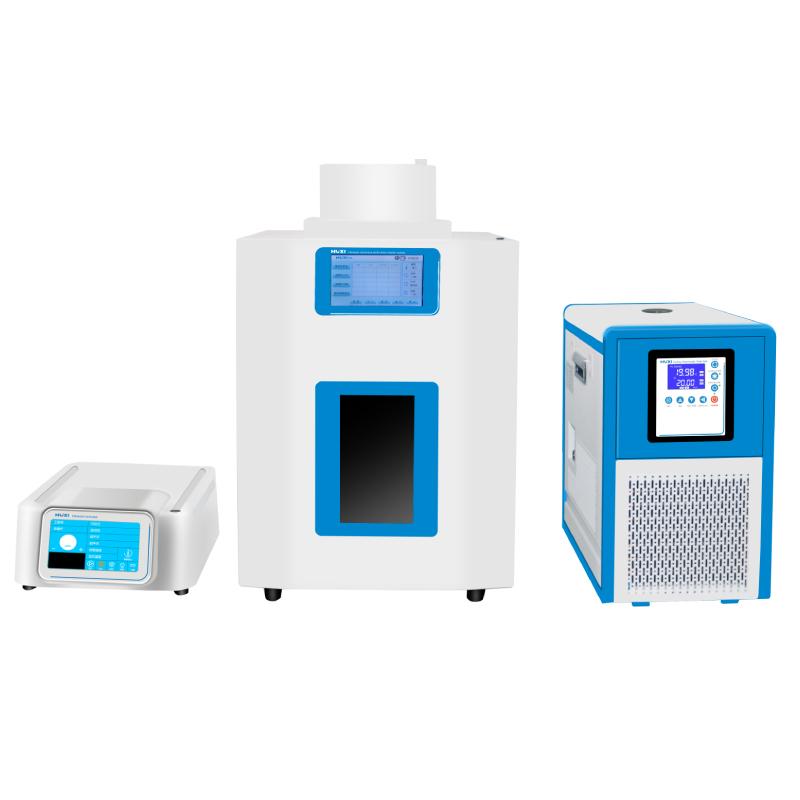

HUXI HX-CW500H Ultrasonic Microwave Combined Reaction System, Wireless Infrared 500ml

HX-CW500H

Ultrasonic microwave combined reaction system

Microwave Frequency 2450MHz, Power 2100W, Maximum output power 1000W, Mixing method: magnetic stirring, mechanical stirring optional, temperature control system: infrared temperature sensor, equipped with temperature: 0-300 ℃, container capacity: 500ml

Introduction

Ultrasonic and microwave combined reaction system has microwave, ultrasonic, microwave ultrasonic independent control and synergistic functions. At the same time, the system realizes 7-inch touch interface control, data storage, and high-definition visualization real-time display of reaction status.

Microwave chemical synthesizers are widely used in chemical synthesis in universities, scientific research institutes, biopharmaceuticals, materials and mining and many other fields. The microwave chemical synthesizer uses the basic principles of microwave, ultrasonic, ultraviolet light and other basic principles to have an effective catalytic effect on the reactants, which can create a variety of synthesis conditions and accelerate the chemical synthesis reaction.

Features

1. Technical characteristics

1.1 Temperature control system: infrared temperature sensor.

1.2 Container capacity: 500ml.

1.3 Operating system: microcomputer control technology, multi-segment program control mode.

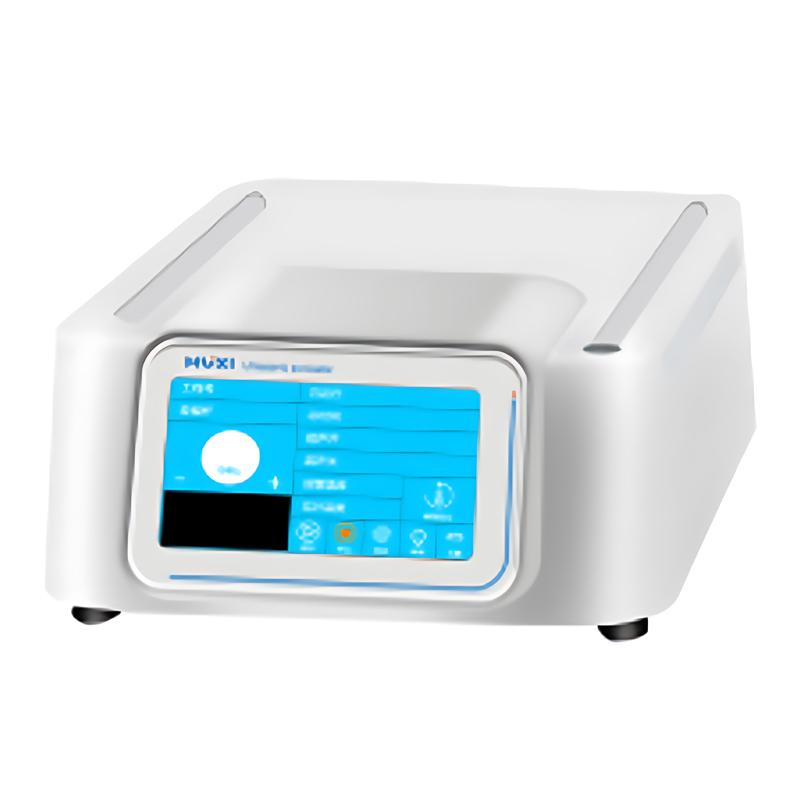

1.4 Ultrasonic power: 1800W can be fine-tuned; Ultrasonic frequency: 20KHz, the ultrasonic probe can be used for interventional or non-interventional samples, acting on the sample function through cavitation effect or air transmission.

1.5 Standard ultrasonic probe diameter: Φ20 is suitable for different calibers of reaction vessels

2. Control system

2.1 Microwave frequency: 2450MHz, non-pulse continuous automatic frequency conversion control, 0-100% power automatic and continuous adjustable.

2.2 Industrial-grade magnetron: microwave maximum output power 1000W.

2.3 Temperature control system: Adopt wireless penetrable infrared temperature sensor sensor.

2.4 Ultraviolet catalytic system: wavelength 253.7nm, power 100W.

2.5 Stirring device: magnetic stirring, stirring speed 0~2500rpm adjustable.

2.6 Multi-function operation mode, which can be extended to microwave extraction, microwave synthesis, ultrasonic wall breaking, etc.

3. Safety of furnace door and furnace cavity

3.1 The six-layer steel structure safety furnace door adopts buffer floating design to ensure the safety during the experiment.

3.2 The mechanical lock and electronic lock are used to coordinate and cooperate to ensure that the furnace door cannot be opened during operation, and the instrument will automatically cut off the microwave and stop working when the furnace door is opened abnormally.

3.3 The furnace cavity is made of 316L industrial-grade stainless steel, and the furnace cavity is sprayed with up to 6 layers of PFA anti-corrosion coating.

4. Operating system

4.1 Microcomputer control technology, which can realize historical data viewing, data export and import.

4.2 Capacitive LCD touch screen, real-time display includes: temperature, heating time, constant temperature time, microwave power, reaction process.

4.3 The instrument has a built-in method library, which can directly select and call schemes, and can store 200 methods.

5. Reaction components

5.1 The reactor can be equipped with PTFE or high-temperature and corrosion-resistant glass materials, and the reactor volume is 500ml.

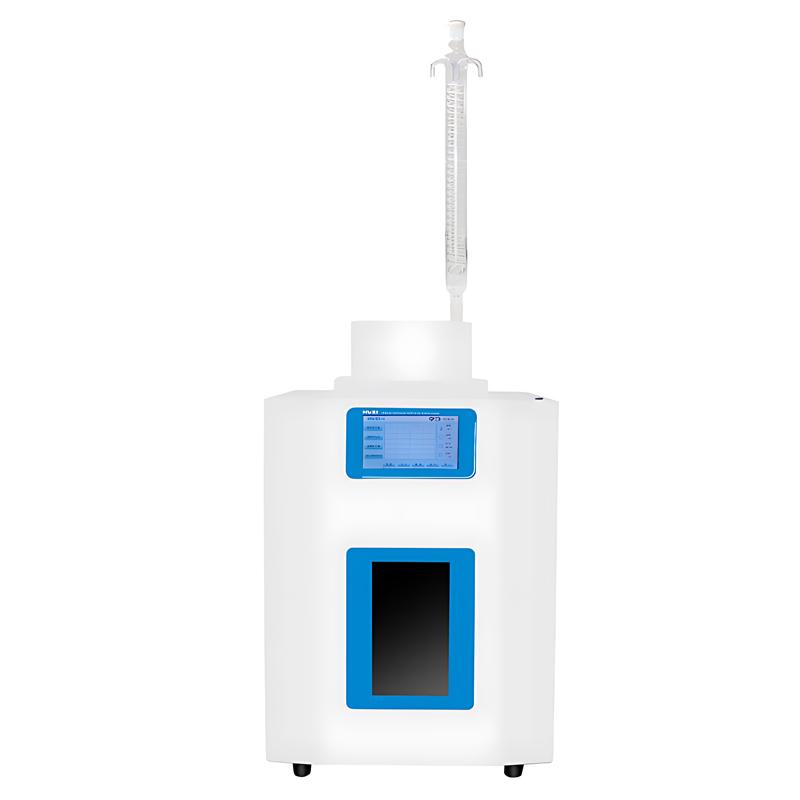

5.2 The reactor can be connected to a glass conduit, and an open reaction system is adopted, and a drip funnel and condenser tube can be installed for reflux reaction.

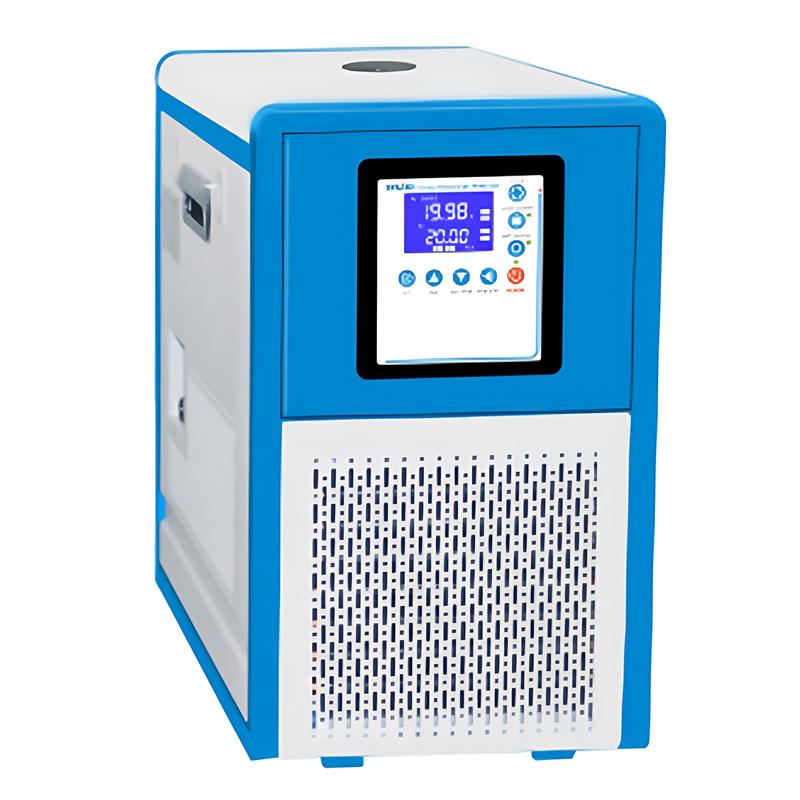

Packing list：Host X1, manual X1, tool box X1, certificate X1, warranty card X1, condensing port hose X1, feed port hose X1, four flasks X1, four bottle stoppers X1, feed port connector X2, condensing tube Glass stopper X1, serpentine condenser X1, chiller hose X2, condensing port connector X2, temperature sensor connector X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
