Electronic Force Gauge HF-10K Hypertherm, External Sensors Push-pull testing device 10KN/0.005KN

HF-10K

Force Gauge (Digital Display)

Measured value 10KN, 1000kg, 2200lb, load Graduation 0.001KN, 0.1kg, 1lb, Sensors structure Sensors external, error of indication +/- 0.5%, power supply NiMH battery 6V/1500mAh, unit Kgf, N, Lbf.

Overview of HF-10K electronic push-pull force gauge

Haibao electronic push-pull gauge HF-10K is a portable electronic push-pull gauge with a maximum load value of 10KN and a load division value of 0.005KN. HF-10K electronic push-pull force gauge adopts digital display LCD with green backlight function. Haibao electronic push-pull force gauge has the characteristics of small size, light weight, easy to carry, multiple functions and high precision.

Application

Haibao Instruments HF-10K electronic push-pull force gauge is suitable for tensile test in chemical industry, machinery, construction, electronic appliances, hardware, auto parts, fire-fighting devices and other fields or scientific research institutions.

Display window parameter description

1) Test value reading area

2) Numerical unit, you can choose "N", "kgf", "lbf" three different measurement units, "kN" will appear when the external large range is installed, or "gf" will appear when the small range is installed.

3) Battery power indicator, when the battery power is very small, it should be charged in time, when the battery power is empty, the HF-10K/20K/30/50K electronic tension gauge will automatically shut down

4) Memory number for storing data

5) Data average indication: "Average" means to display the average value

6) Working mode indication

"Track": weight tracking mode;

"Peak": peak hold mode;

"FIR-PEAK": first peak mode;

“KEY-PEAK”: key-only mode.

7) Peak hold lock symbol

This symbol will be displayed if there is a peak held in the peak hold mode

8) Push-pull force direction symbol

"Down" is displayed during the pull test, and "Up" is displayed during the push test.

Pictures

patent certificate

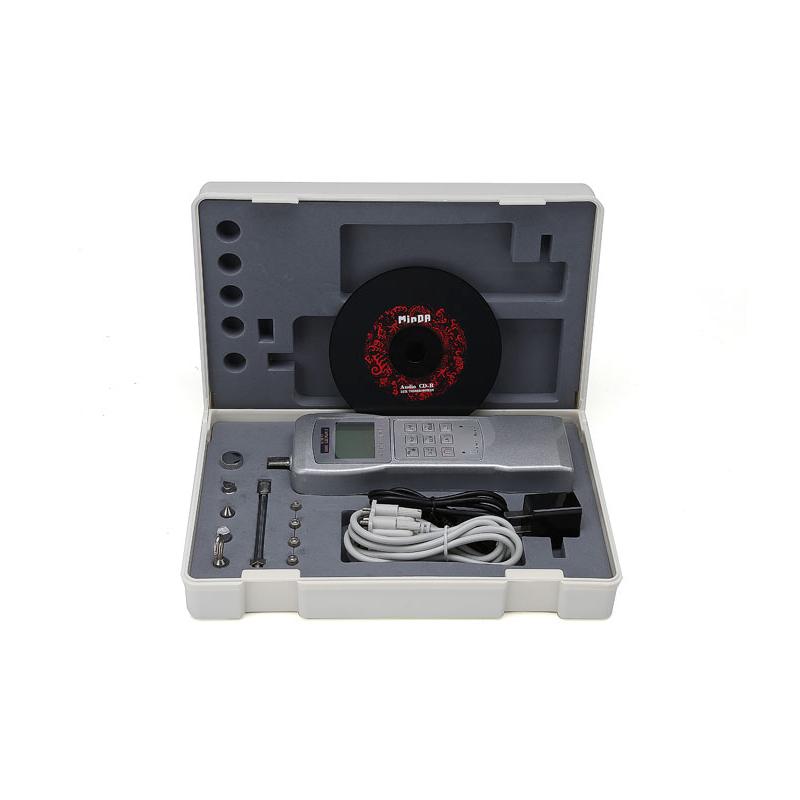

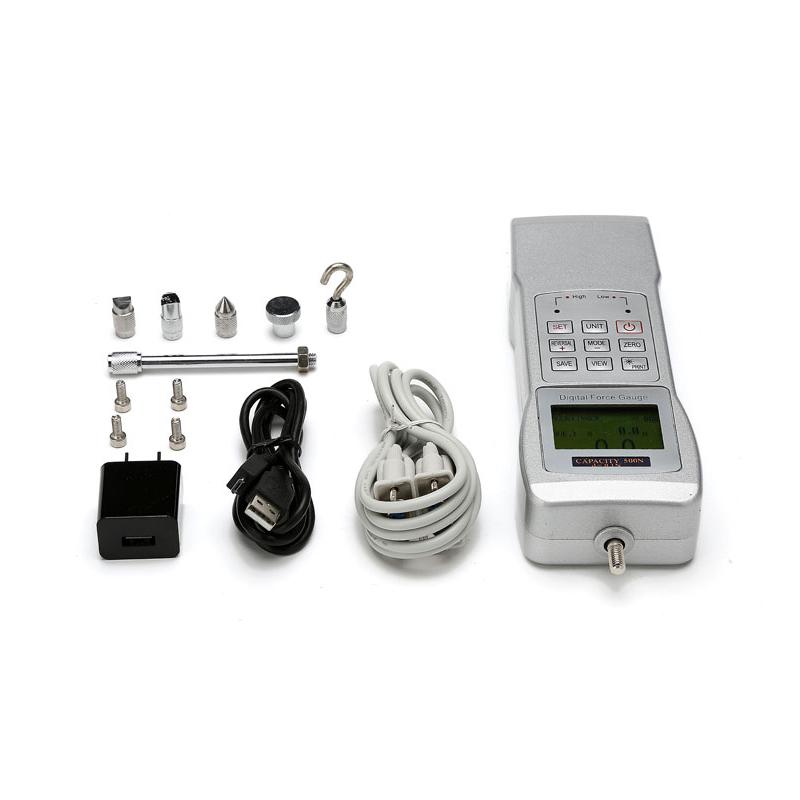

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
