HUINUO , Frame 100/200/300/400μm Frame Film Applicator Spreader Width 160mm

SE
Film width 160mm, wet film thickness of 100μm, 200μm, 300μm, 400μm, 9Cr18Mo wear-resistant and anti-corrosion stainless steel material, with factory test report.
$273.00/piece
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con
Similar products

HuiNuo Frame type 100/200/300/400μm Box ApplicatorSPEC

HuiNuo Frame type 100/200/300/400μm Box ApplicatorDetails

HuiNuo Frame type 100/200/300/400μm Box ApplicatorPacking list

SKU
NB046954
type
4-sided
Spreader width
160mm
Accuracy
±2μm
material
9Cr18Mo stainless steel
Total length
190mm
Frame type 100/200/300/400μm
Box Applicator
Film width 160mm, wet film thickness of 100μm, 200μm, 300μm, 400μm, 9Cr18Mo wear-resistant and anti-corrosion stainless steel material, with factory test report.

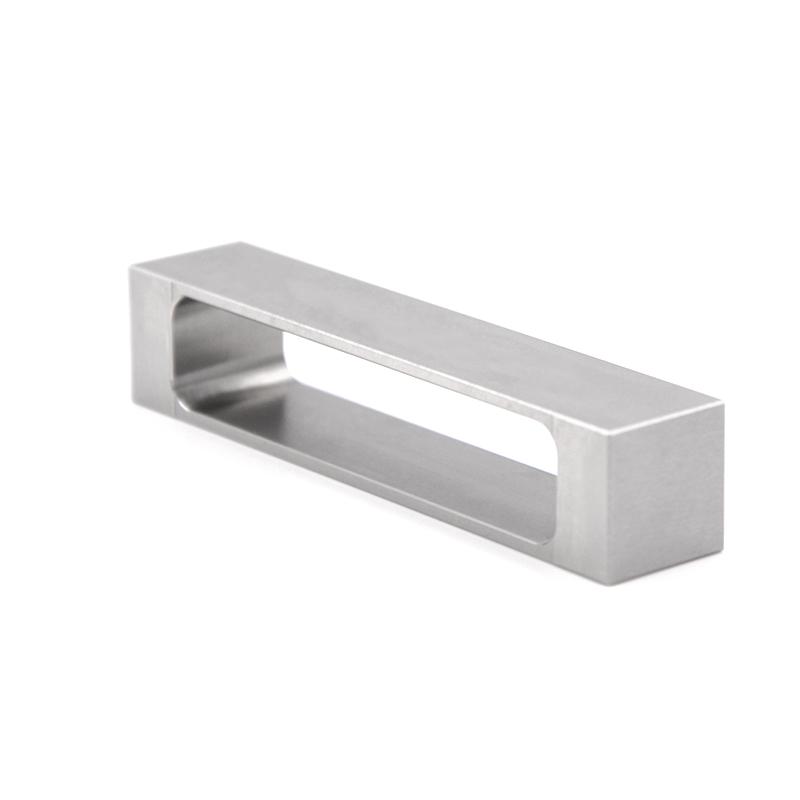

HUINUO , Frame 100/200/300/400μm Frame Film Applicator Spreader Width 160mm Picture

Introduction

The framed 100/200/300/400μm Wet Film Applicator is made of wear-resistant stainless steel with a coating width of 160mm, which is a four-sided wet film coater, suitable for sample coating of adhesives, resins, inks, etc.

The Wet Film Applicator is a manual laboratory coater, with different coating width specifications to choose from, using high carbon chromium wear-resistant and anti-corrosion stainless steel, the preparer is used to import three coordinates to detect the dimensional accuracy before leaving the factory to ensure the accuracy of the coating film. SZQ series preparers are available in a variety of shapes such as I-shaped, frame-type, square, etc., and can be divided into single-sided, double-sided, four-sided, and eight-sided Applicators according to the thickness of the coating film. The Wet Film Applicator is suitable for making films such as paints, glues, coatings, inks, new chemical materials, etc., and can be equipped with a film coating machine for automatic film scraping. Nanbeichao provides preparator specification customization services.

Features

1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.

2. The accuracy is up to ±2μm to ensure the accuracy of the experiment

3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported

4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement

Fig. 1 of the 100/200/300/400μm Frame Preparator

Parameter table of the preparator series

nameSpecification mmWet film thickness μm
Single-sided ApplicatorThe Total length is 80, and the coating width is 50 and 7550、75、100、125、150、175、200
Double-sided ApplicatorThe Total length is 100, and the coating width is 8025、50、75、100、150、175、200、300、400
Frame preparerThe Total length is 90, and the coating width is 8030、50、60、90、120、150、200
Octaveral preparerThe Total length is 90, and the coating width is 6850、75、100、125、150、175、200
Octaveral preparerThe Total length is 100, and the coating width is 80
Square preparer25x25, coating width 1637、50、75、100
Square preparer50x50, coating width 4150、100
Standard four-sided ApplicatorThe Total length is 100, and the coating width is 80All specifications and sizes, support non-standard customization
Extended four-sided ApplicatorThe Total length is 190, and the coating width is 160


FAQ
QI want to test the Spreader effect of Adhesive, which Film Applicator should I choose?
A Recommended frame 4-sided Applicator, such as 100/200/300/400μm. Because of its application width 160mm, it can be painted four thicknesses at a time, which is convenient for you to quickly compare the performance of Adhesive under different thicknesses, and the stainless steel material is wear-resistant to ensure experimental accuracy.
QLaboratory inks film, which Applicator is more suitable?
A It is recommended to check the box type 4-sided Applicator, which has four thicknesses from 100 to 400 μm, and the application width of 160mm is enough to cover common test requirements. The inks film needs to precisely control the thickness, and this accuracy +/- 2 μm can ensure the Reliability of your test results.
QI need to do film test for Adhesive sample. Is this Film Applicator suitable?
A Suitable, application width 160mm, wet film thickness 100/200/300/400μm, Miscellaneous film thickness and width can also be selected
Q100, 200, 300, 400 μm, Spreader width 160mm to frame type, do you have it?
A Yes, this frame type is 100/200/300/400μm, which needs to be customized.
