TQC VF2147 Baker Coating Applicator 50/100/150/200µm

SE
[Clearance] TQC Baker Film Applicator 60mm, 50/100/150/200µm
$909.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO
Similar products

TQC sheen VF2147 Baker Coating ApplicatorSPEC

TQC sheen VF2147 Baker Coating ApplicatorDetails

TQC sheen VF2147 Baker Coating ApplicatorPacking list

SKU
NB004696
type
4-sided
WFT
50/100/150/200µm
Application width
60mm
Accuracy
±3μm
material
High grade stainless steel
standard
ASTM D 3022 ASTM D 823
VF2147
Baker Coating Applicator
[Clearance] TQC Baker Film Applicator 60mm, 50/100/150/200µm
TQC VF2147 Baker Coating Applicator 50/100/150/200µm Picture

Introduction

TQC Baker coater has VF2145,VF2146、The VF2147 is available in three models, and the cylindrical Becker applicator has 4 painted surfaces and can be applied in 4 preset thicknesses. Available in 60 mm (2.4 in.) and 80 mm (3.15 in) widths, Becker applicators are suitable for coating many different products on flat or smooth solid substrates. The applicator is made of stainless steel, which ensures that the applicator is not attacked by acids or alkaline substances in the paint or cleaning agent.

Parameters

ModelCoating widthCoating film thicknessprecision
VF214560mm15/30/60/90 µm±3μm
VF214660mm30/60/90/120 µm
VF214760mm50/100/150/200 µm
VF151060mmCustom-made (4 film thicknesses)

Features

Standards: ASTM D 3022 ASTM D 823;

The cylindrical Film Applicator has 4 sides and can be applied to coat 4 different film thicknesses;

Baker coaters are available in 60mm and 80mm widths and are suitable for most products and corresponding solid matrices;

The material is stainless steel, which will not be affected by acids and other chemical elements;

Actual picture of the product

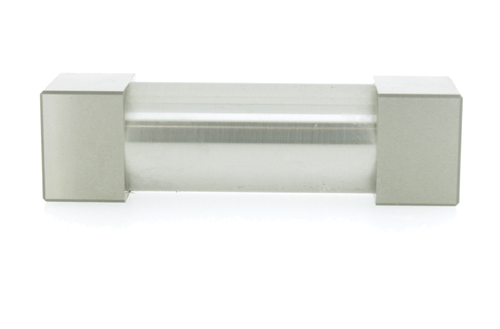

TQC贝克涂布器实拍图1

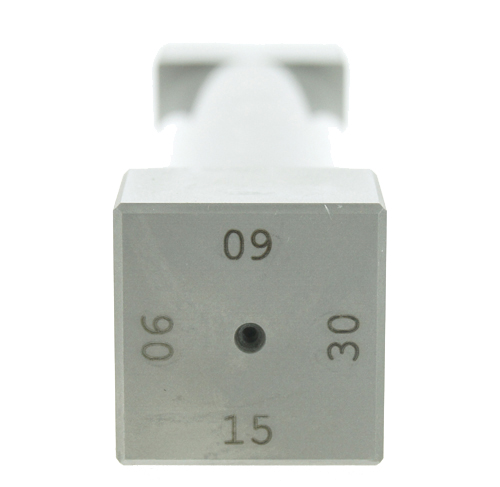

TQC贝克涂布器实拍图2

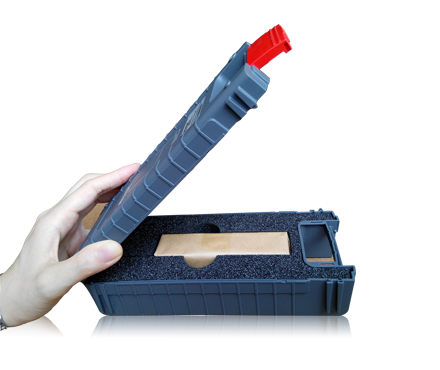

TQC贝克涂布器实拍图3

Baker Applicator Series models

ModelCoating widthCoating film thickness
VF214560mm15/30/60/90 µm
VF214660mm30/60/90/120 µm
VF214760mm50/100/150/200 µm
VF151060mmCustom-made (4 film thicknesses)
ModelCoating widthCoating film thickness
VF150080mm15/30/60/90 µm
VFl50180mm30/60/90/120 µm
VF150280mm50/100/150/200 µm
VF151580mmCustom-made (4 film thicknesses)

Take you to the Dutch TQC

TQC公司的历史发展

TQC自动化生产和严格的品质把控

TQC研发团队

FAQ
QSHEEN 4-sided coating applicator ref. 1107/60/2/Is there an alternative?
A This brand was acquired by TQC several years ago, and now the replacement model is VF2147.
QWhat is the difference between this model and the VF1502 Film Applicator?
A Hello, the widths of the two Spreaders are different. The film width of VF2147 is 60mm, while that of VF1502 is 80mm.
QCan this Baker coating applicator be applied to GB1727?
A OK
QThe VF2147 Baker coating applicator can test different thicknesses of 50μm, 100μm, 150μm, 200μm?
A Yes, this 4-sided Film Applicator is for experimental films 50/100/150/200µm
