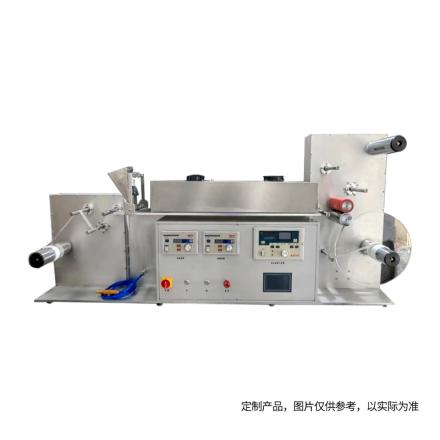

zy TBJ-JCPT-DJ2UV Micro Coil Dual Function Automatic Film Applicator (lame plating + scratch coating) Specifications
Search
Brand：zy
Model：TBJ-JCPT-DJ2UV
Name：Micro Coil Dual Function Automatic Film Applicator (lame plating + scratch coating)
Specifications
| Coating method | Lame plating + scraping method |
| Effective Spreader Width | 100-300mm |
| Roll surface width | 300mm |
| Coating speed | 0~5m/min |
| unwinding diameter | ≤Φ400mm |
| Film laminating roll diameter | ≤Φ400mm |
| winding diameter | ≤Φ400mm |
| Power Supply | 220V 50Hz |
| Dimensions | About 2300 * 1500 * 1500mm (subject to customized parameters) |
| Unwinding Unit - Type | Single station |
| Unwind Unit - Effective Unwind Width | 300mm |
| Unwinding Unit - Effective Unwinding Diameter | ≤Φ400mm |
| Unwinding Unit - Unwinding Scroll | Inflatable shaft |
| Unwinding Unit - Unwinding Tension Control | Tension Controller automatic control |
| Spreader Unit - Spreader Mode | Lame plating + scratch coating |
| Spreader unit - lame plating height | Can be adjusted 0-200mm |
| Curing Unit - Type | Column arch bridge |
| Curing Unit - Heating | 1 meter oven |
| Winding Unit - Type | Single station |
| Winding Unit - Effective Winding Width | 300mm |
| Winding Unit - Effective Winding Diameter | ≤Φ400mm |
| Winding Unit - Winding Reel | Inflatable shaft |
| Feed irrigation material | 304 stainless steel |
| Wire Rod Coating Range | Determine Spreader Film thickness according to rod model |
| Scraper film Film thickness | 0~10Mm scraper can be lifted |
| Spreader Accuracy | ±0.03mm |
| UV light curing area | 300*1000mm |
| UV main peak wave | 36nm |
| UV optical power | 400*2W |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
| Light source distribution distance | 18*18mm |
| Light board height from Spreader | 20Mm (support custom adjustable height) |
Packing list
Coater x1, scraper x1, wire rod x1, automatic feeding system x1, automatic lame plating system x1, tension system x1, deviation correction module x1, rewinding x1, drying x1, UV curing device x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/46980/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
