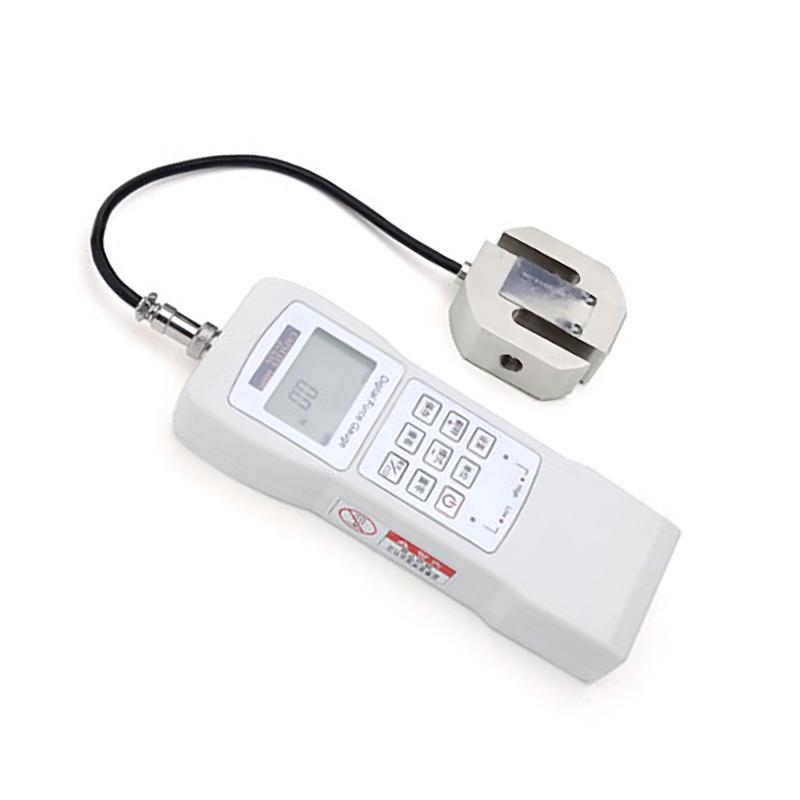

Precision tensIon Meter HG-1000 Hypertherm, push tensile testing device External Sensors 1000N/0.5N

HG-1k

Force Gauge (Digital Display)

Measured value 1000N 100kg 220lb, resolution 0.1N, 0.01kg, 0.1lb, Sensors structure Sensors external, error of indication +/- 0.5%, power supply NiMH battery 6V/1500mAh, unit Kgf, N, Lbf.

Introduction of HG-1000 precision tension gauge

Haibao Precision Tension Gauge HG-1000 is a push-pull gauge with an external sensor using a liquid crystal display , with peak hold and release functions. The maximum load value of HG-1000 is 1000N, and the division value is 0.5N. HG-1000 precision tensile gauge is a general-purpose push-pull load testing instrument with the advantages of high precision, high resolution and high stability, and can be used for tensile testing, insertion force testing, and destructive testing, etc.

Features

1. Freely set the upper and lower limit deviation value, automatic sound alarm and level signal output.

2. Test direction display (pull +, push -)

3. HG-1000/2000/5000 precision push-pull gauge adopts segment liquid crystal display and green backlight screen.

4. The acceleration of gravity can be set.

5. Store 99 sets of test data, and can automatically calculate the average, maximum and minimum values of the stored data.

6. High precision, high resolution and high stability. Sampling speed up to 120Hz.

7. Automatic shutdown without operation (the time can be set freely from 0 to 99 minutes).

8. An external smart charger is used, which can be charged safely and prolong the battery life.

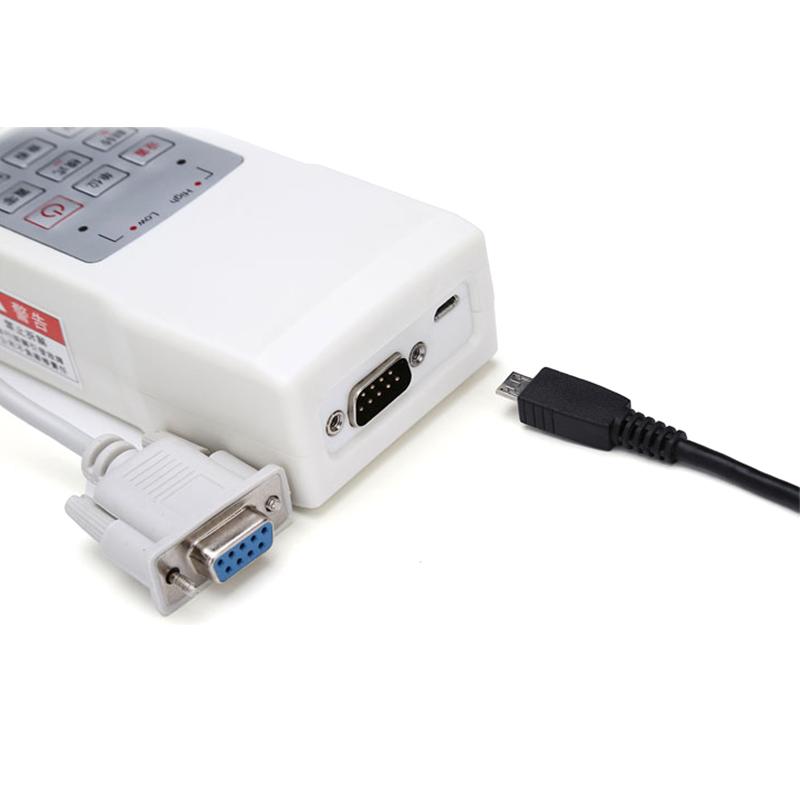

9. Serial port output (baud rate 9600), which can print 10 sets of stored test data and maximum, minimum, average, qualified or unqualified judgments.

10. It can be connected to the host computer to read, print, delete, analyze and other operations on the stored data.

11. Cooperating with Haibao electric test machine, it can realize various new and practical functions such as stop immediately after breaking, force value maintenance, applied force limit, fatigue test and so on.

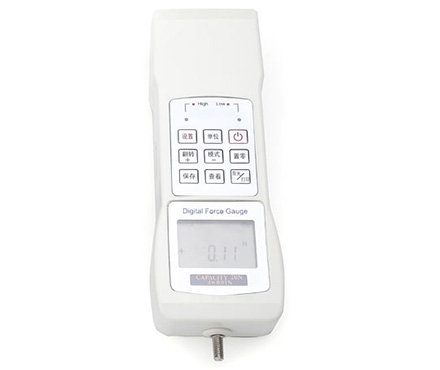

Pictures

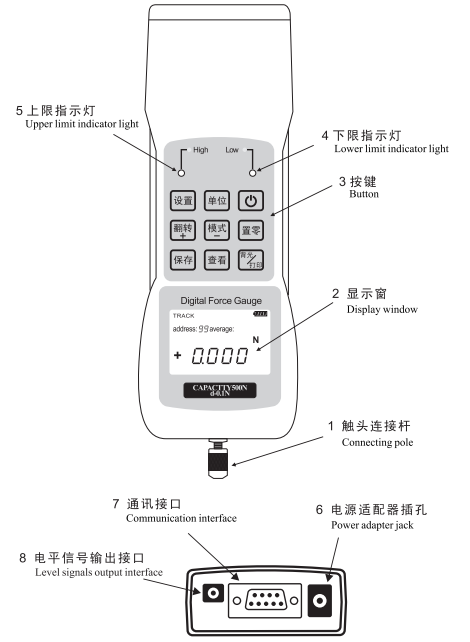

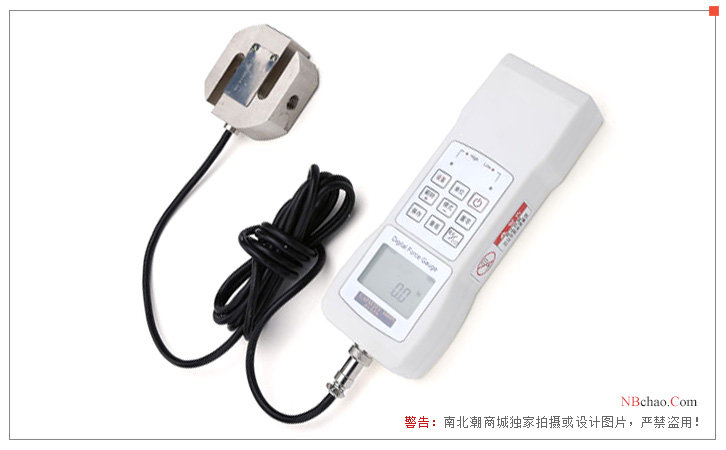

Appearance structure diagram

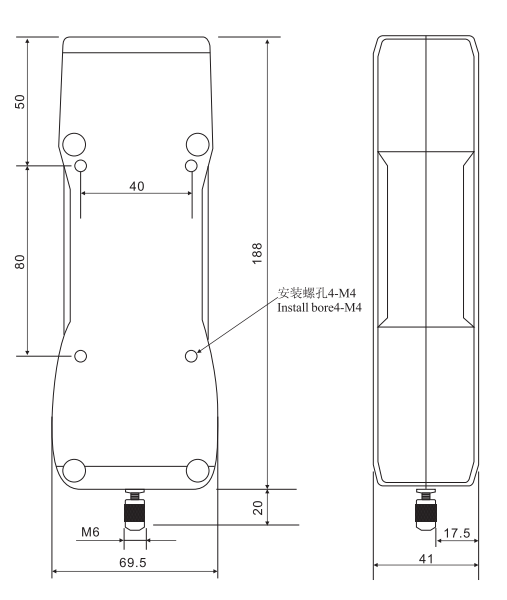

Dimensions

patent certificate

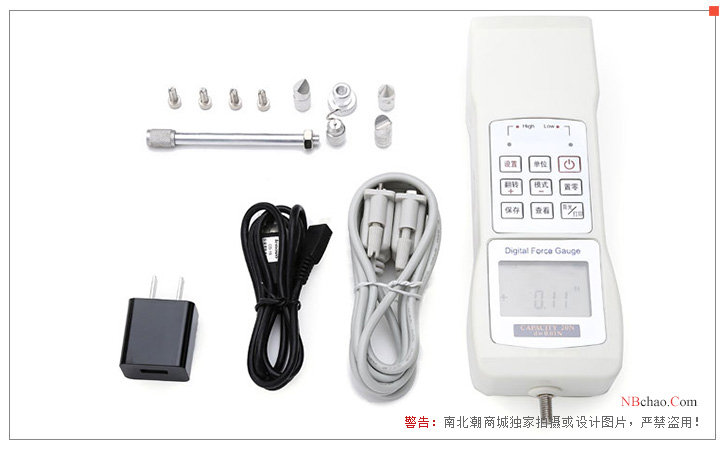

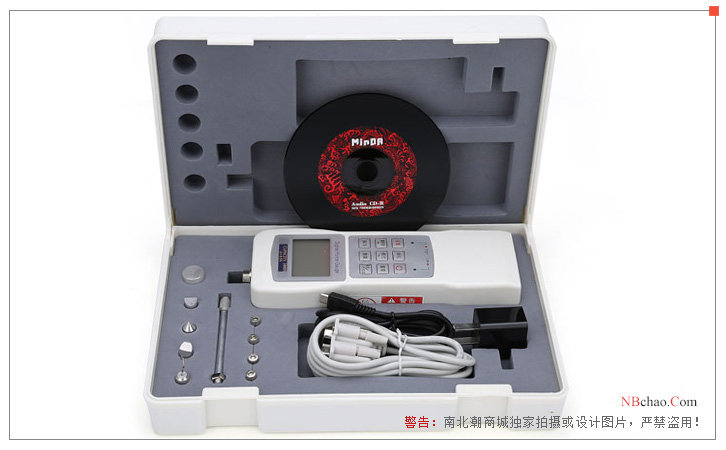

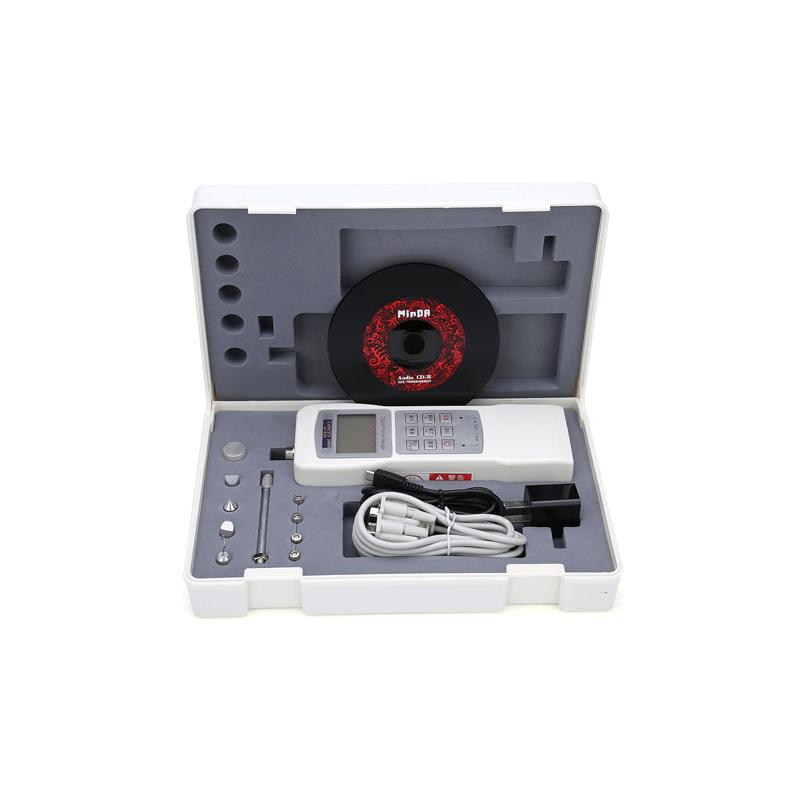

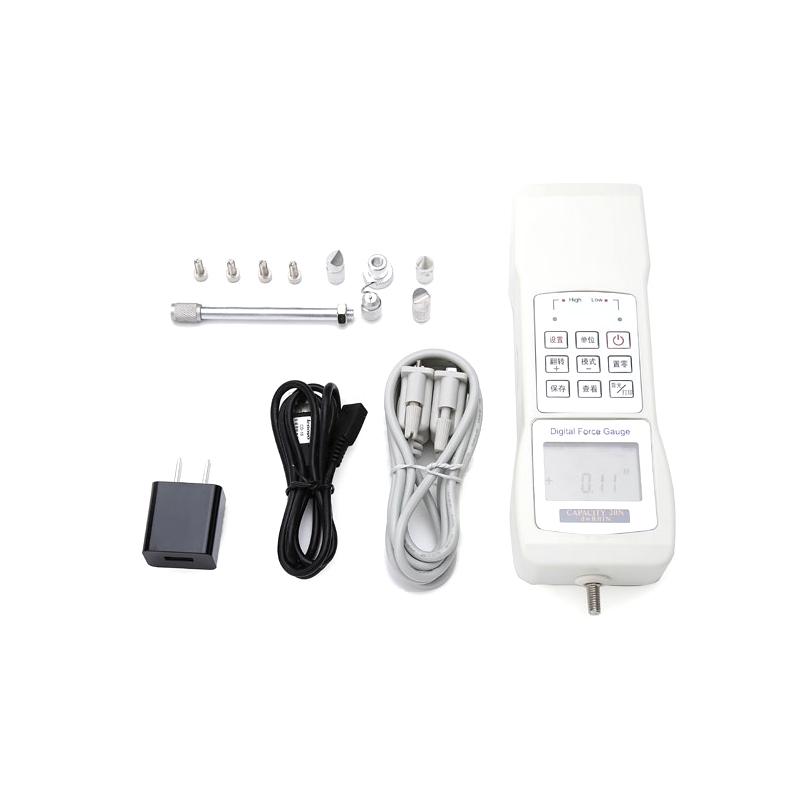

Packing list：Force Gauge x1, Sensors X1, Certificate x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
