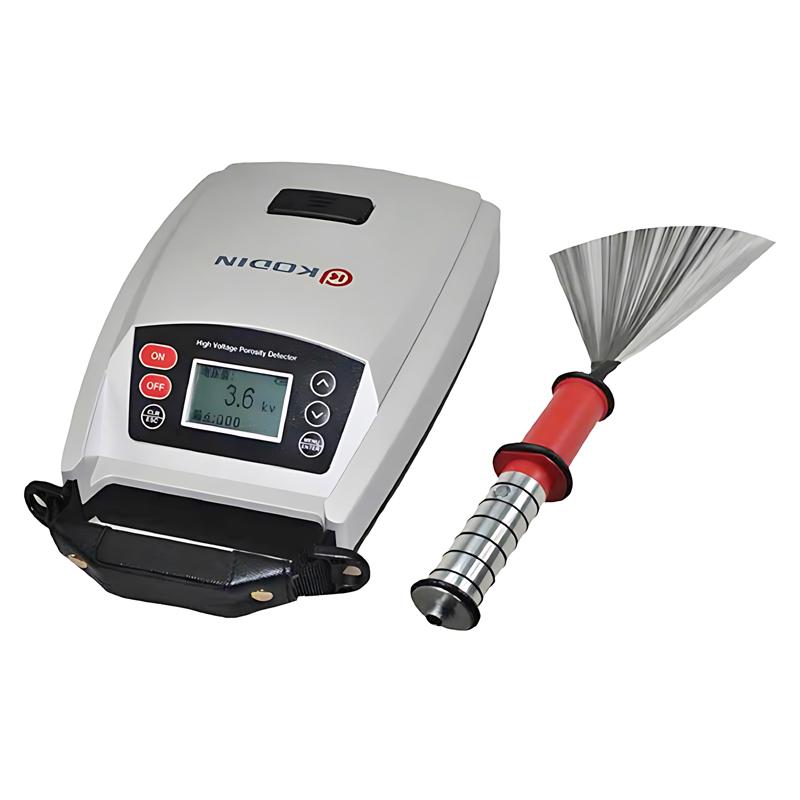

KODIN 6DJ50 Holiday Detector anticorrosive coating Holiday Detector 35mm/50KV

6DJ50

Holiday Detector

Use detection Film thickness 0.1mm~ 35mm, output high Voltage 1KV~ 50KV, set Voltage Accuracy +/- (0.1KV + 3% reading), display accuracy 0.1KV, display 12864 dot matrix LCD with backlight display, leakage point count maximum 999, battery 12.6V 4400mAh lithium battery, power consumption ≤ 8W, host size 240 × 170 × 90mm, alarm headset, buzzer double alarm, light alarm.

Introduction

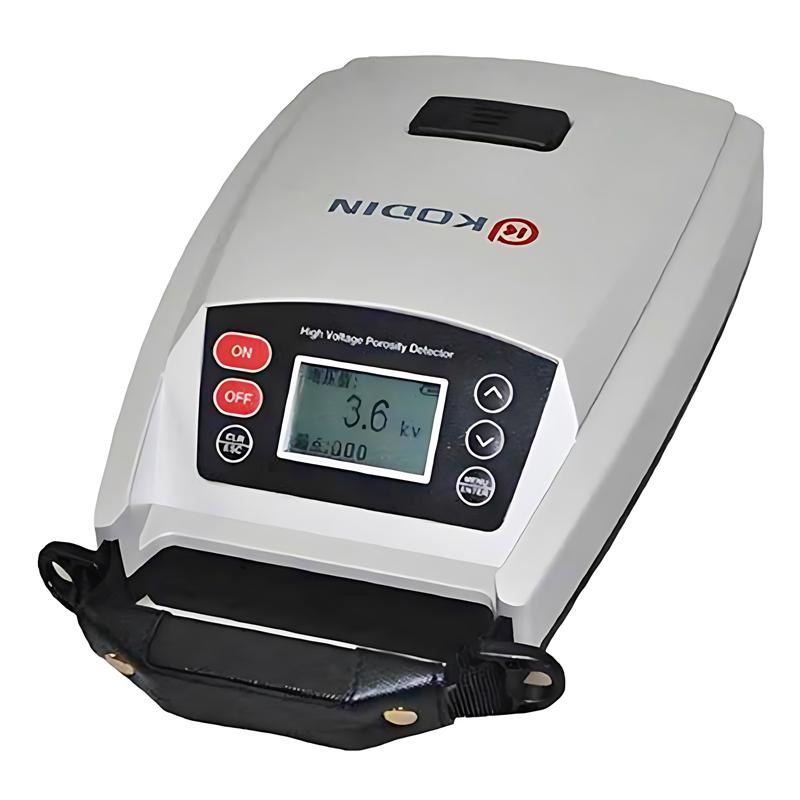

6DJ50 electric spark leak Detector is a pulse high-Voltage instrument, using anti-interference chip, anti-interference LCD screen and digital control circuit, so that the high-Voltage output of the instrument is more accurate ± (0.1KV+3% reading), according to the material and thickness of the anti-corrosion coating can automatically output the appropriate measurement Voltage, menu operation is humanized.

Features

• 0.6KV~31.5KV full-scale high-Voltage generator;

• Obtain accurate and stable measurement Voltage through software intelligent control, ensure that the displayed Voltage is the test Voltage, and the Voltage accuracy: ± (0.1KV+3% reading);

• It can automatically output a suitable measurement Voltage according to the material and thickness of the anti-corrosion coating;

• High-Voltage safety switch: There is a bright LED alarm prompt when the high Voltage starts, which can protect the user from sparks;

• When a pore is detected, in addition to an electric spark, the instrument will also send out an audible and visual alarm signal and record the number of pinholes (up to 999);

• The limit value of the number of pinholes can be set, and the instrument will automatically alarm if the limit value of the number of pinholes is exceeded;

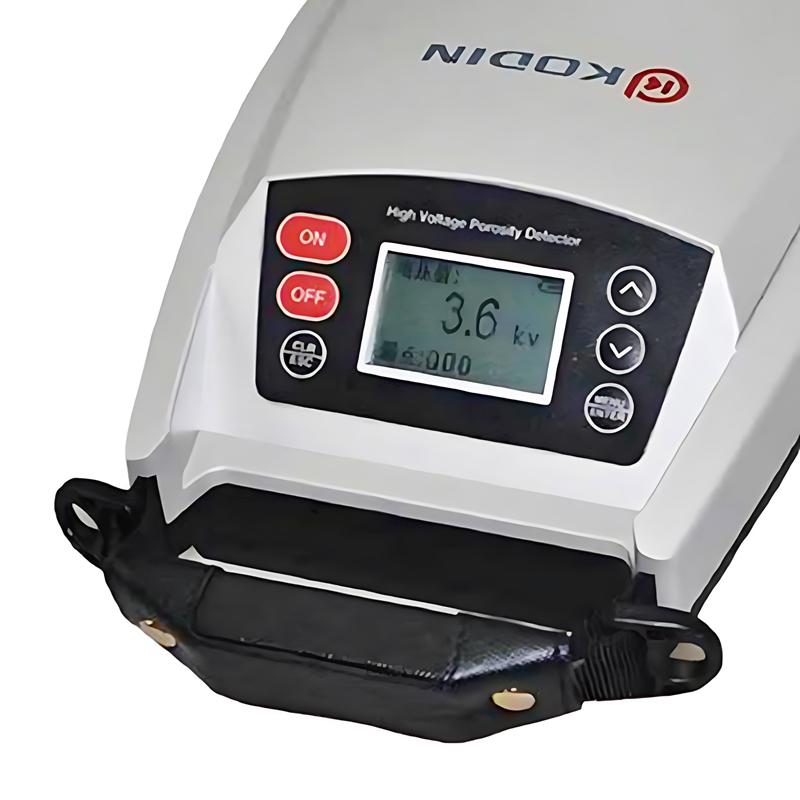

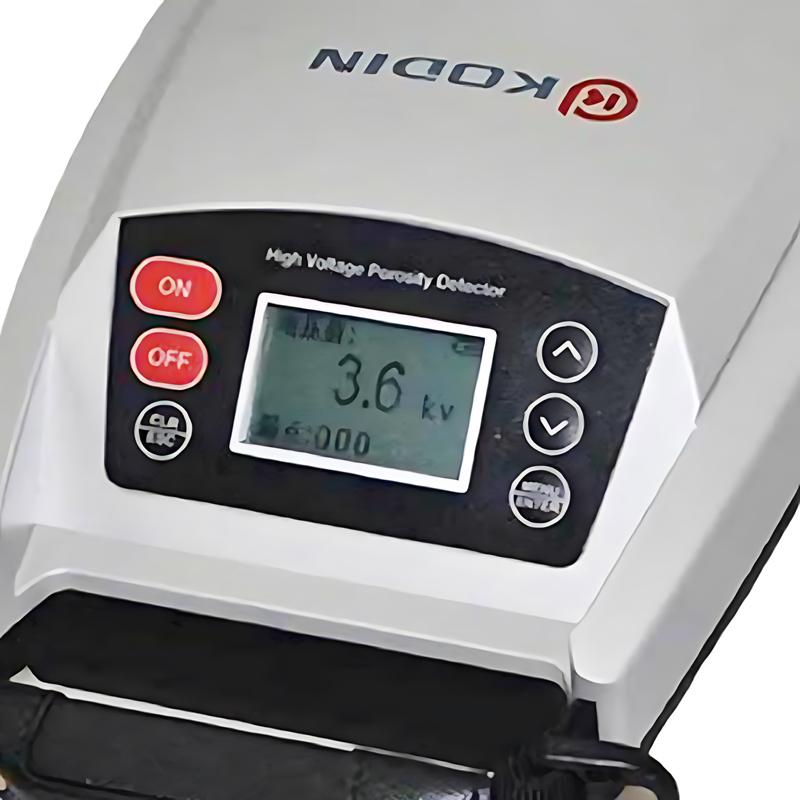

• 12864 LCD with backlight display, display measurement Voltage, number of pinhole leaks, battery level indication, menu and other instrument data information;

• Ground wire and probe line alarm prompt, if the instrument is not connected, it will automatically alarm prompt;

• Modern exterior design, dust-sealed chassis;

• 12.6V4400mAh large-capacity lithium battery to ensure long-term work;

• User-friendly touch panel, automatic backlit buttons;

• Pulse discharge, small discharge current, eliminate the secondary damage to the anti-corrosion coating, save power and prolong working time, but also reduce the electric shock damage to the human body due to improper operation.

Meets standards

• JJF (Lu) 101-2015 Calibration Specification for Electric Discharge Leak Detector

• JJF (Liao) 282-2015 Calibration Specification for Pulsed Electrical Discharge Leak Detector

• JJF (Xiang) 04-2018 Calibration Specification for Pulsed Electrical Discharge Leak Detector

• JJF (Shaanxi) 027-2020 Calibration Specification for Pulsed Electrical Discharge Leak Detector

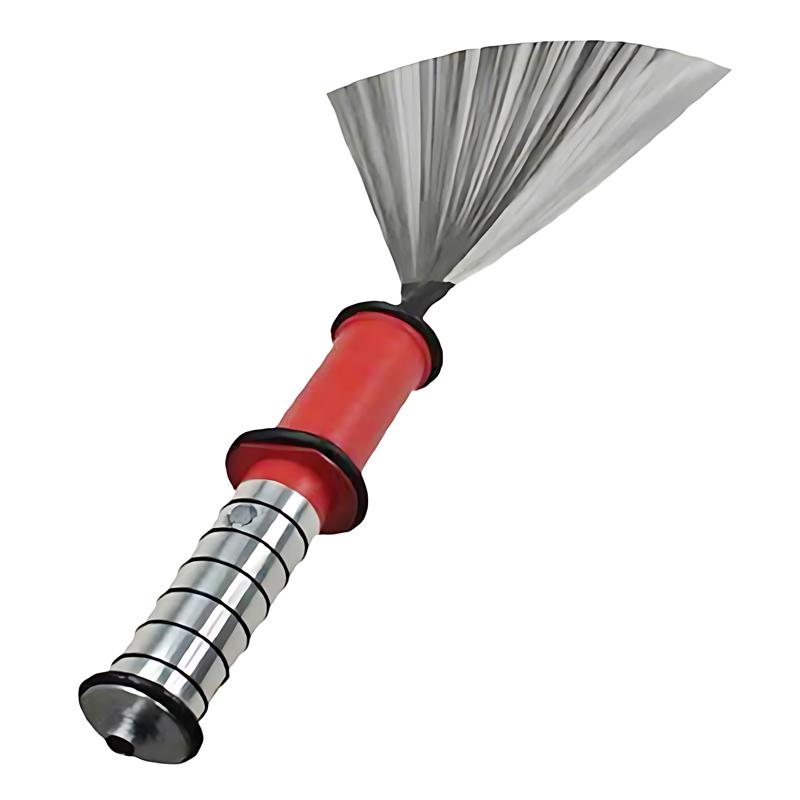

Packing list：Host X1, high voltage probe X1, probe cable X1, fan probe X1, ground wire X1, flat brush X1, connecting rod X1, charger X1, strap X1, magnetic ground column X1, spare fuse X2, ABS Encasement box X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
