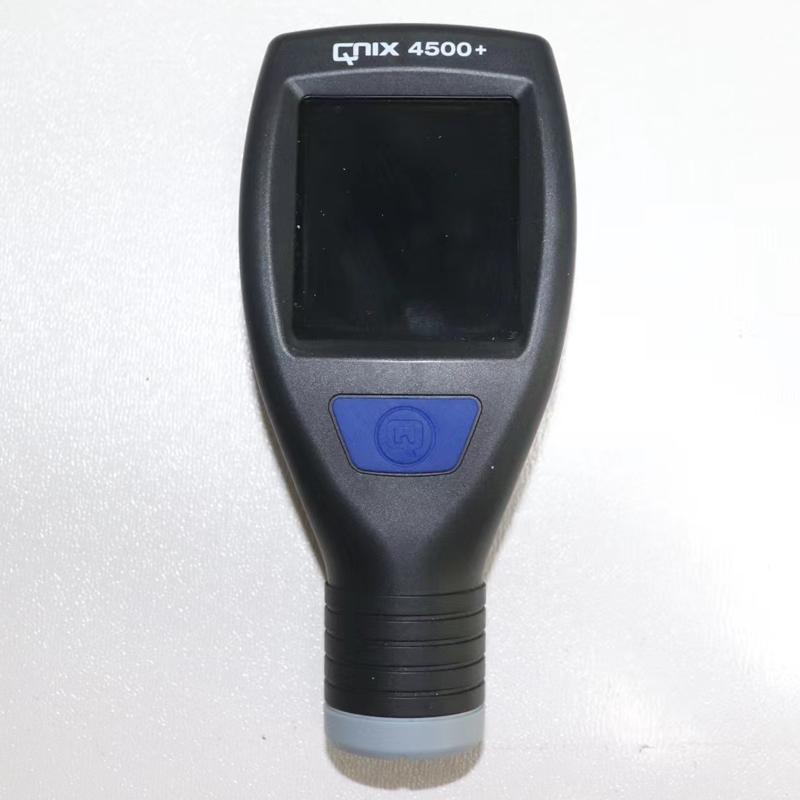

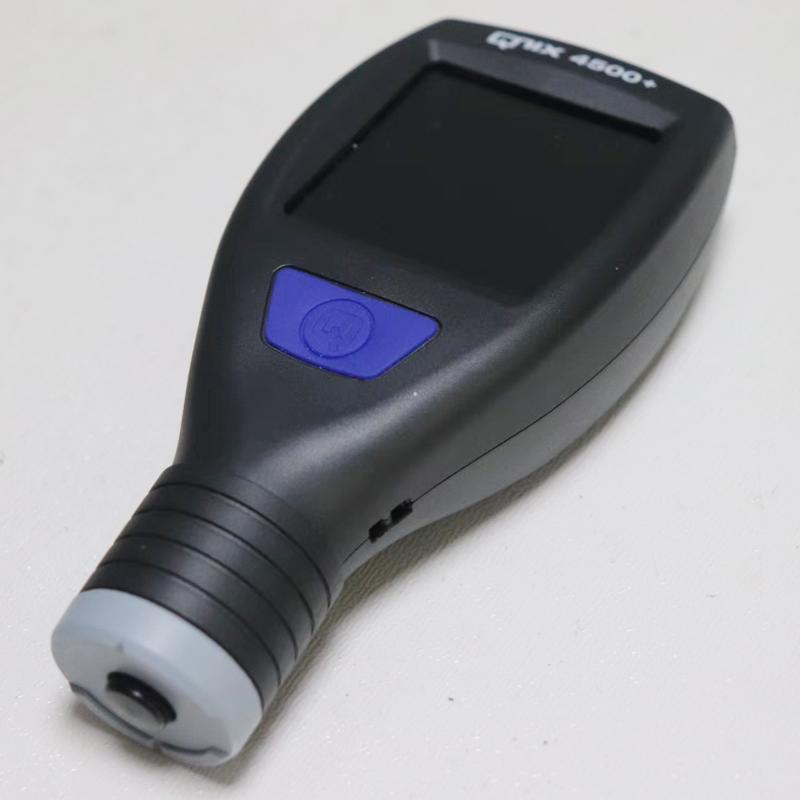

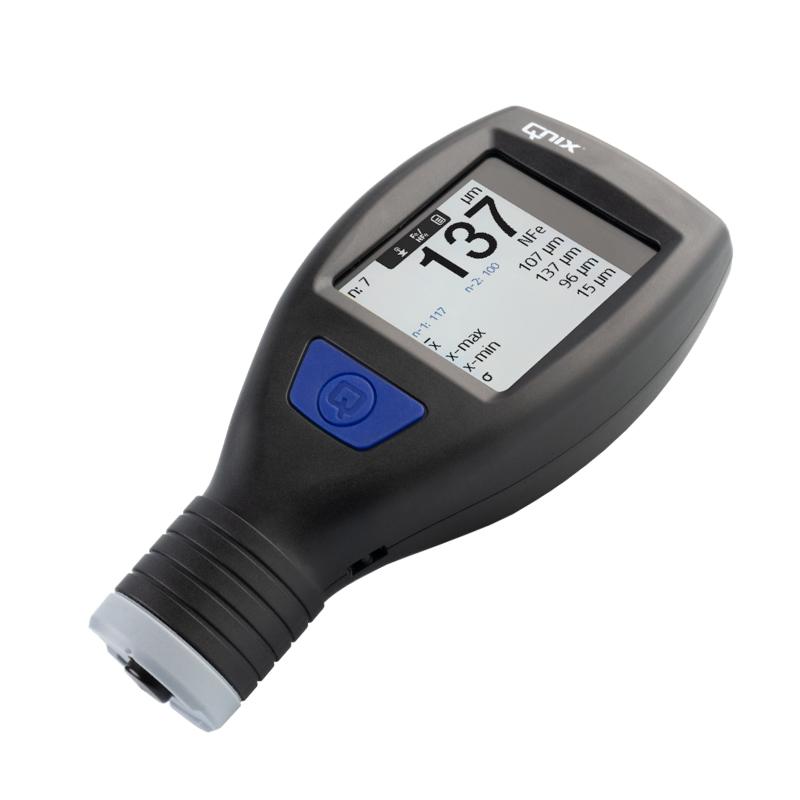

Germany Nix QNix 4500 + FN3 integrated dual-use coating platings Thickness Gauge FeNFe dual-use probe 0-3000μm

4500+FN3

Dual use platings Thickness Gauge

Display accuracy 0.1μm, power supply 2xAA alkaline battery, battery life to meet the 40,000 above the measurement, measurement range 3mm, principle based on the Hall principle of magnetic substrate measurement and magnetic eddy current measurement of nonmagnetic substrate, measurement speed ≥ 100/min.

Introduction

The new QNix®4500+ dual-purpose coating Thickness Gauge from Nix demonstrates its position in the field of high-precision measurement and its spirit of continuous innovation. The gauge combines advanced technology with a user-friendly design to provide users with a more convenient and reliable measurement solution.

The QNix®4500+ Thickness Gauge provides excellent measurement accuracy with a display accuracy of up to 0.1um to meet the needs of users for accurate measurements. It adopts a 2-inch wide-angle omnidirectional IPS-TFT color LCD display, which allows users to clearly observe the measurement data and understand the condition of the measured object in real time.

The QNix®4500+ gauge has a wide range of applications and can be used to measure non-magnetic material coatings on ferromagnetic substrates such as chromium, zinc, copper, aluminum, etc., as well as non-metallic coatings on non-ferromagnetic substrates such as paints, aluminum oxide films, powders, etc. It is based on the Hall principle for the measurement of magnetic substrates and magnetic eddy current for non-magnetic substrates, which ensures the accuracy and stability of the measurement.

Features

• High-precision measurements

• Large-screen color LCD

• The screen automatically flips with the angle

• Automatic and manual switching between measurement substrate modes

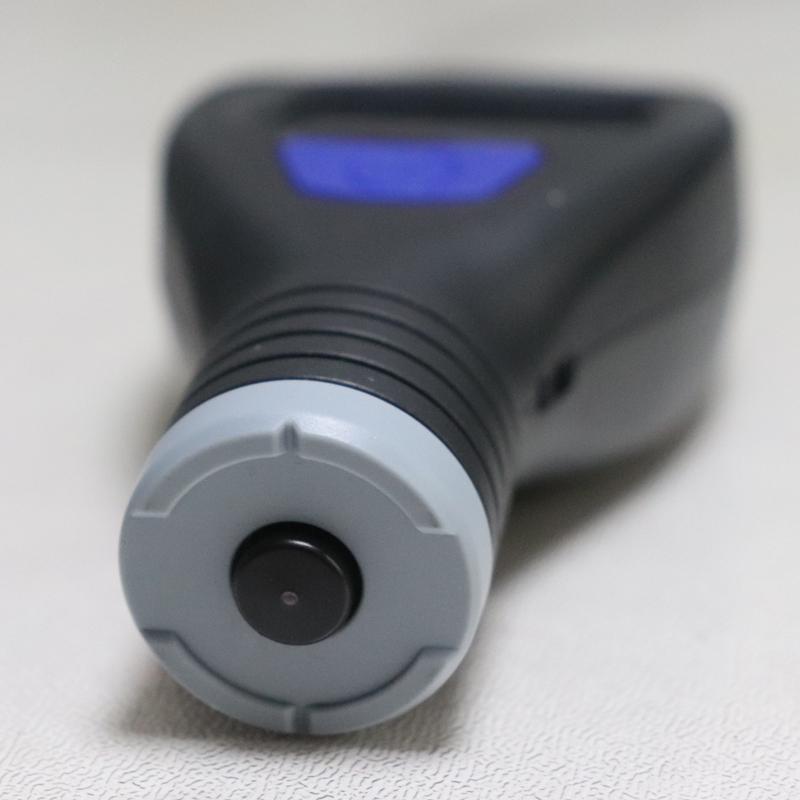

• Built-in abrasion-resistant ruby probe

• Simply zero, no calibration required

• With statistical function

• Compared to the previous generation QNix4500, it is more dustproof and waterproof

Scope of application

• Measurement of non-magnetic material coatings on ferromagnetic substrates, such as chromium, zinc, copper, aluminum, paints, oxide films, powders, etc.

• Measure non-metallic coatings on non-ferromagnetic substrates, such as paints, aluminum oxide films, powders, etc.

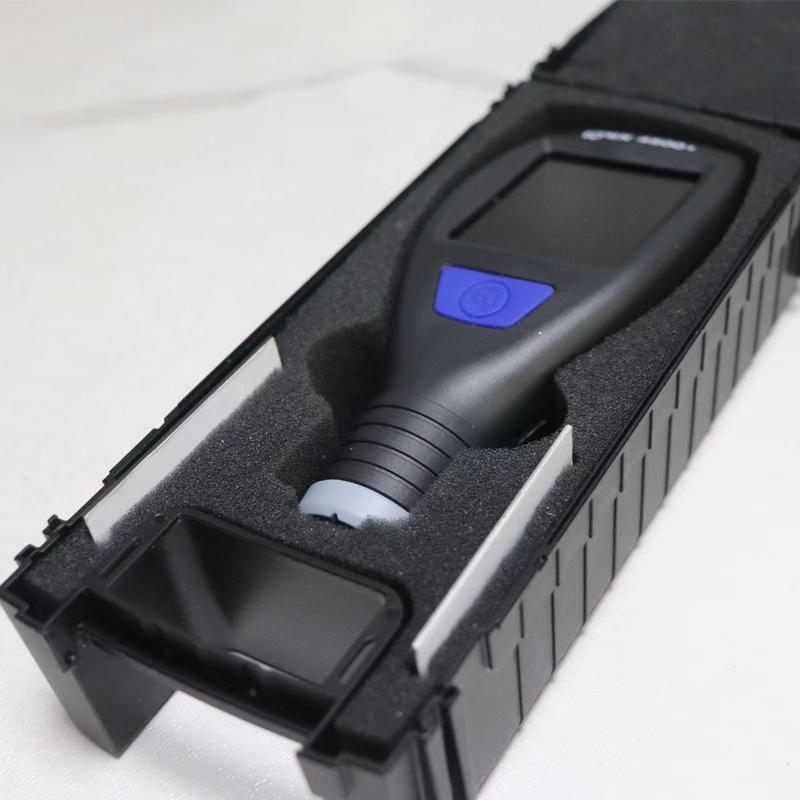

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
