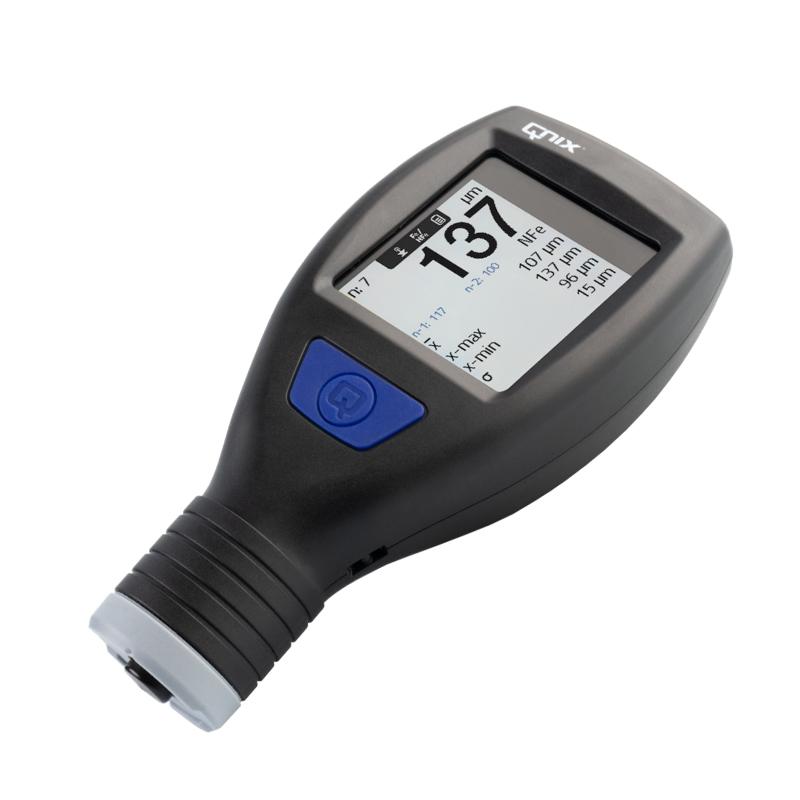

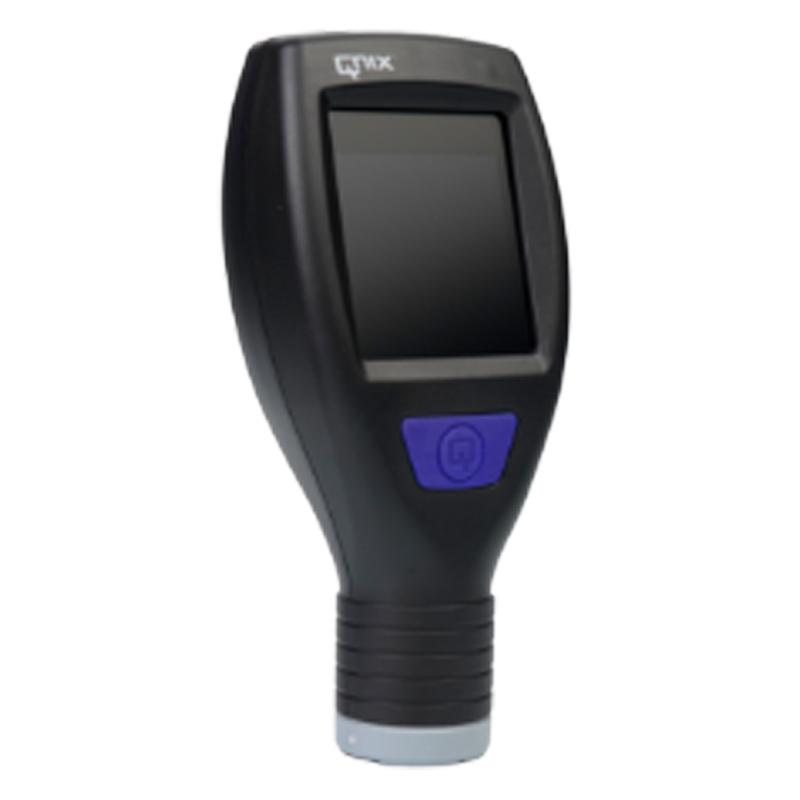

Germany Nix QNix 4500 + FN5 integrated dual-use coating platings Thickness Gauge FeNFe dual-use probe 0-5000μm

4500+FN5

Dual use platings Thickness Gauge

Display accuracy 0.1μm, battery life to meet more than 40,000 measurements, statistical functions: average, MAX Maximum, MIN Minimum, standard deviation, measurement range 5mm.

Introduction

The new QNix®4500+ dual-purpose coating Thickness Gauge from Nix demonstrates its position in the field of high-precision measurement and its spirit of continuous innovation. The gauge combines advanced technology with a user-friendly design to provide users with a more convenient and reliable measurement solution.

The QNix®4500+ Thickness Gauge provides excellent measurement accuracy with a display accuracy of up to 0.1um to meet the needs of users for accurate measurements. It adopts a 2-inch wide-angle omnidirectional IPS-TFT color LCD display, which allows users to clearly observe the measurement data and understand the condition of the measured object in real time.

The QNix®4500+ gauge has a wide range of applications and can be used to measure non-magnetic material coatings on ferromagnetic substrates such as chromium, zinc, copper, aluminum, etc., as well as non-metallic coatings on non-ferromagnetic substrates such as paints, aluminum oxide films, powders, etc. It is based on the Hall principle for the measurement of magnetic substrates and magnetic eddy current for non-magnetic substrates, which ensures the accuracy and stability of the measurement.

Features

• High-precision measurements

• Large-screen color LCD

• The screen automatically flips with the angle

• Automatic and manual switching between measurement substrate modes

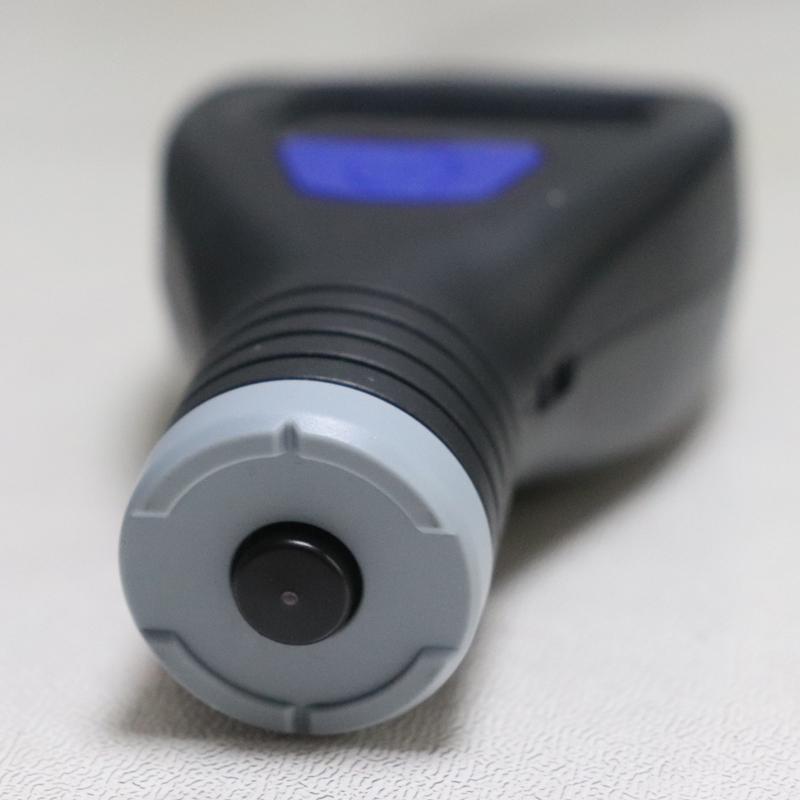

• Built-in abrasion-resistant ruby probe

• Simply zero, no calibration required

• With statistical function

• Compared to the previous generation QNix4500, it is more dustproof and waterproof

Scope of application

• Measurement of non-magnetic material coatings on ferromagnetic substrates, such as chromium, zinc, copper, aluminum, paints, oxide films, powders, etc.

• Measure non-metallic coatings on non-ferromagnetic substrates, such as paints, aluminum oxide films, powders, etc.

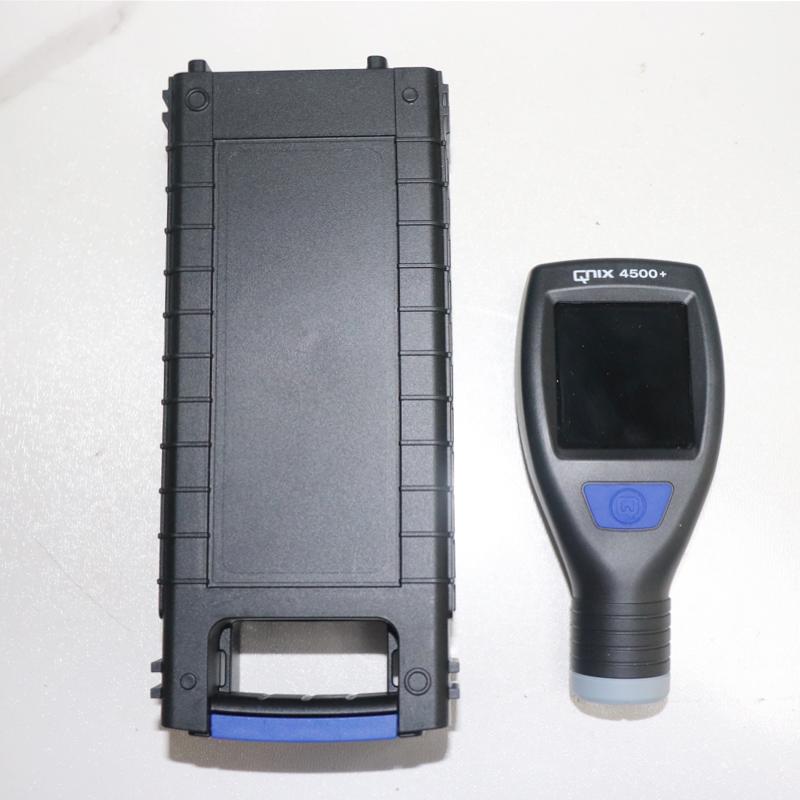

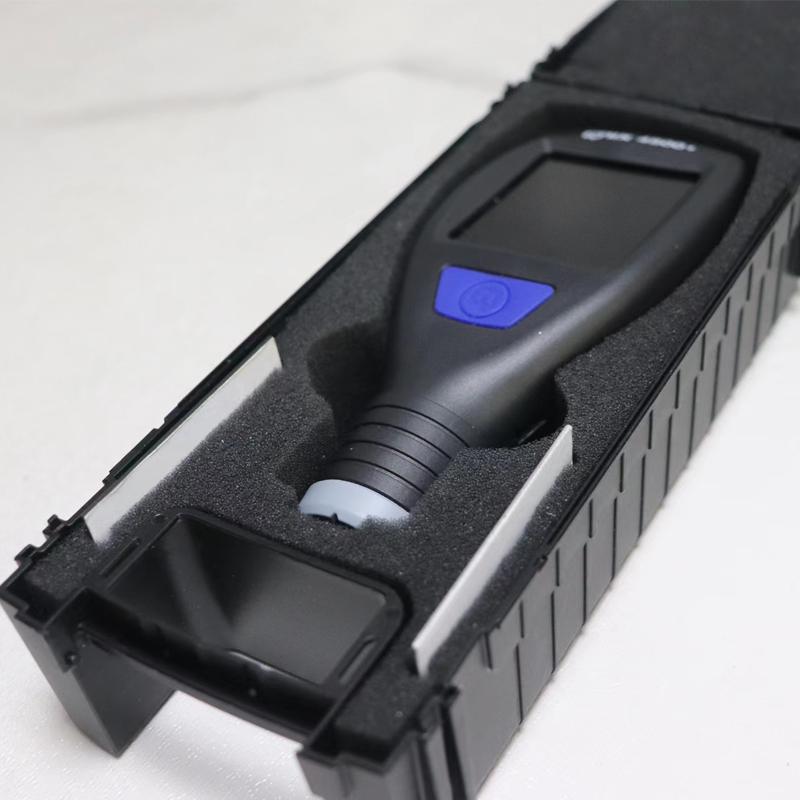

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
