Wheel amplitude tensometer HG-100K Hypertherm special instrument for push-pull load testing

HG-100K

Force Gauge (Digital Display)

Measured value 100KN, 10000kg, 22000lb, resolution 0.01KN, 1kg 10lb, Sensors structure Sensors external, Measurement range +/- 0.5%, power supply NiMH battery 6V/1500mAh, unit Kgf, N, Lbf.

Brief Introduction of HG-100K Spoke Tension Meter

Haibao HG-100K spoke tension gauge is a digital display tension gauge that can test larger loads. The maximum load value of HG-100K spoke tension gauge is 100K, and the load division value is 0.05KN. The HG-100K spoke tension gauge adopts an external spoke sensor and a high-resolution LCD display.

Applications

HG-100K spoke tension gauge is widely used in push-pull load test and destructive test of products in various fields. This series of dynamometers can be combined with a variety of machines and fixtures to form a multi-purpose small test machine. It can be widely used in auto parts, fire fighting equipment, chemical industry, machinery, construction, electronic appliances and other fields.

main feature

1) High precision, high resolution, high stability.

2) The comparison value of upper and lower limits can be set freely, automatic sound alarm and level signal output.

3) Test direction display (pull +, push -).

4) Segment LCD display with green backlight.

5) Store 99 sets of test data, and automatically calculate the average, maximum and minimum values of the stored data .

6) The three units N, kgf, lb are automatically interchangeable.

7)HG-100K spoke tension gauge can set the acceleration of gravity value.

8) Peak hold, peak automatically release function. (can be set from 0 to 10 seconds)

9) Automatic shutdown without operation (time can be set freely from 0 to 99 minutes).

10) Using an external smart charger, it can be charged safely and prolong the battery life.

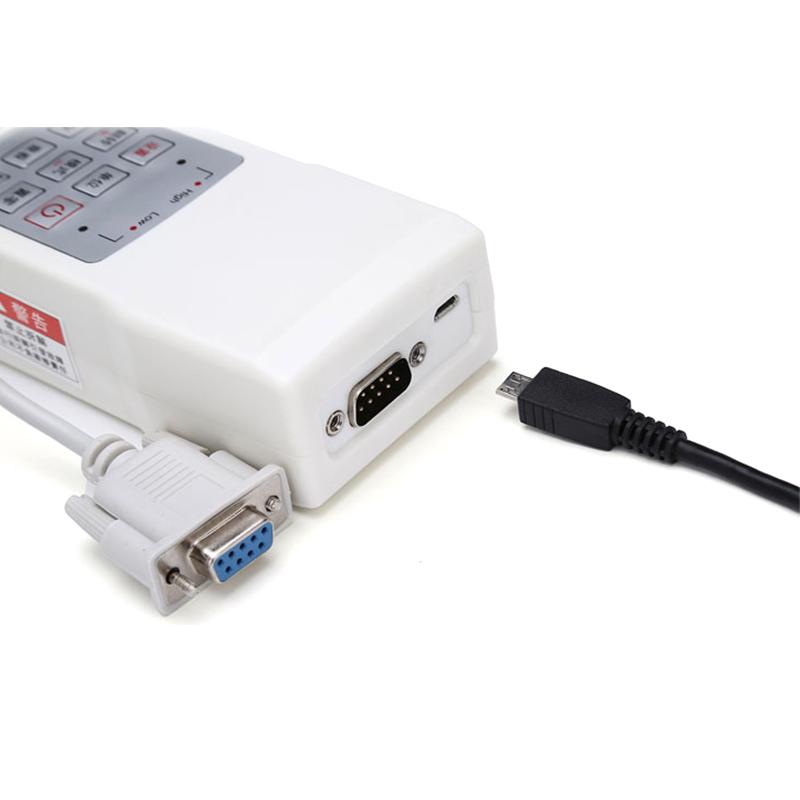

11) Serial port output (baud rate 9600), can print test data and maximum, minimum and average values.

12) Connect to the host computer to read, print, delete, analyze and other operations on the stored data.

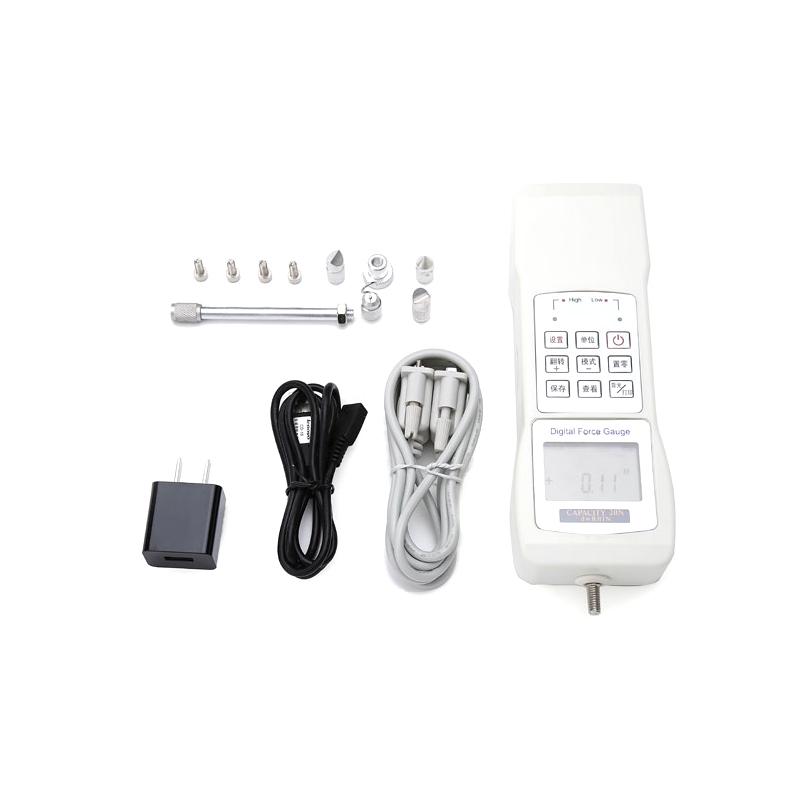

Pictures

patent certificate

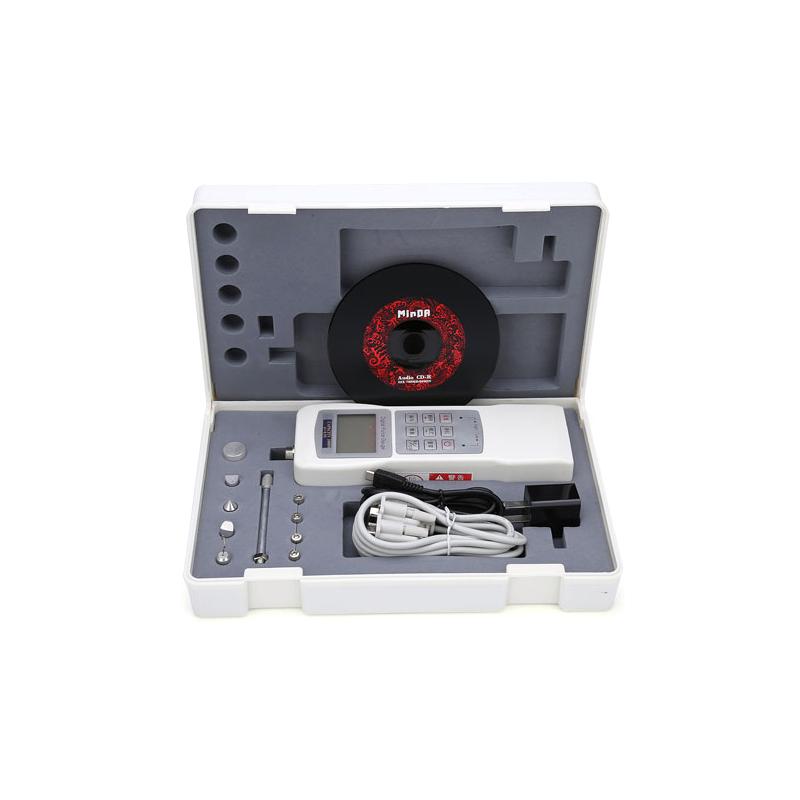

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
