TILO VC-118-S camera light box, standard 200K color temperature LED light source

VC-118-S

Camera light box

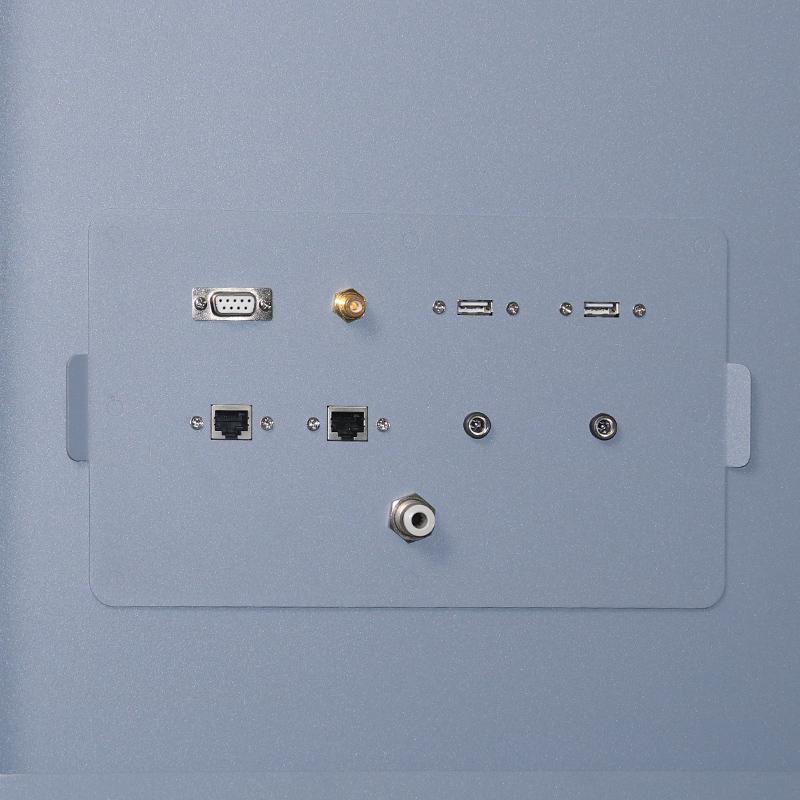

Single color temperature, adjustable illuminance, the size of the box body is 1106mm long * 1001mm wide * 800mm high, and the size of the connector mounting plate is 250mm * 150mm.

Introduction

VC-118-S camera test light box is a special light box for camera testing. This product can test cameras with different field of view while using the same picture card. The built-in mobile slide makes it easy to move the camera back and forth. The light box is equipped with a high CRI, no flicker, long life, and stable color temperature LED light source, and users can move back and forth and rotate the light source board left and right according to different situations to get a more uniform lighting environment.

The VC-118-S camera test light box is mainly composed of a cabinet, a light source control box, and a bracket. It is a light box specially designed for camera testing, which can meet the needs of lenses with different Viewing Angles for testing, and the back panel of the light box can be posted with a ISO12233 standard test chart of 2 times (712mm*400mm). In addition to the standard ISO12233 test charts, there are also charts for wide-angle lenses and fisheye lens tests. All cards are magnetic on the back, allowing them to be placed anywhere in the lightbox according to the user's needs.

Features

1. The surface color of the box is neutral gray.

2. The window of the box is covered by a black cloth curtain, which is easy to open and close. Close the curtain while working to ensure that the internal Operating Environment is not affected by the outside.

3. A camera moving platform is installed in the middle of the box, and two linear slide rails with locks are installed under the platform, and the platform can move back and forth, or it can be moved to a certain position to lock the slide rails and fix.

4. A high CRI, standard color temperature, and no flicker LED light source is installed on the left and right sides of the mobile platform, and the illumination of the light source is adjustable. Two linear slide rails with locks are installed under the LED light source light panel, which can be moved back and forth to lock the slide rails in a certain position. Loosen the butterfly hand nut on the lamp holder, the LED light source light panel can be rotated to adjust the angle, so that the light source shines on the back plate of the light box more evenly, and tighten the fixed position of the wing nut after determining the angle.

Packing list：Host X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
