China

TILO T90-X color matching temperature/illumination camera light box

SE
Color temperature and illumination are adjustable, and the outer box is the same as T90-7.
$4113.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

TILO T90-X Camera light boxSPEC

TILO T90-X Camera light boxDetails

TILO T90-X Camera light boxPacking list

SKU
NB047070
Power Supply
AC220~240V,50/60Hz
power
400W
Fuse Specifications
F3AL250V(5*20mm)
Overall size of light box
1008*704*898mm
Observation box size
895*600*658mm
lifespan
10,000 hours or more
T90-X
Camera light box
Color temperature and illumination are adjustable, and the outer box is the same as T90-7.

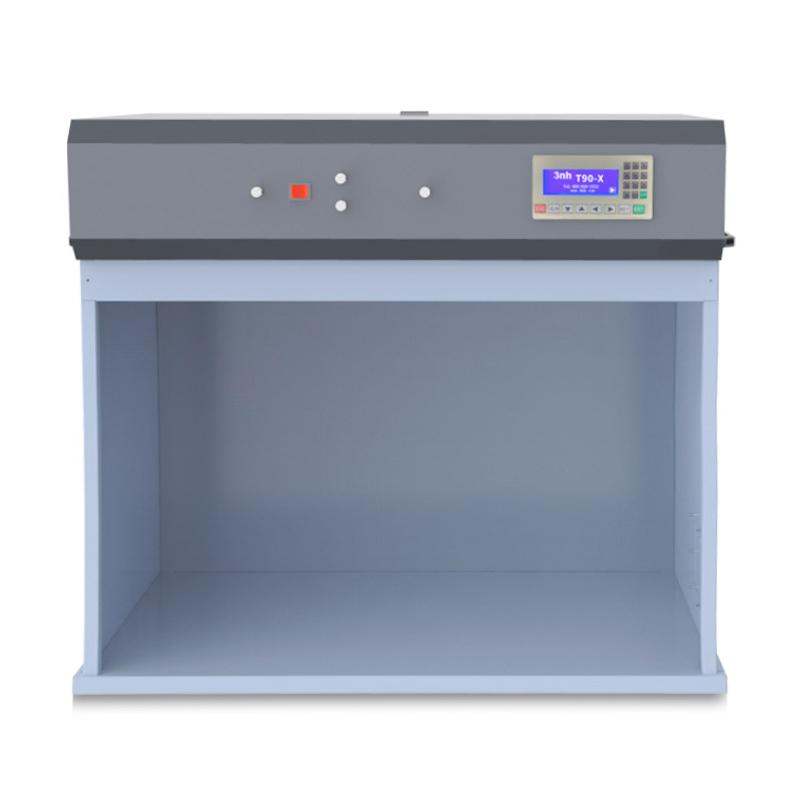

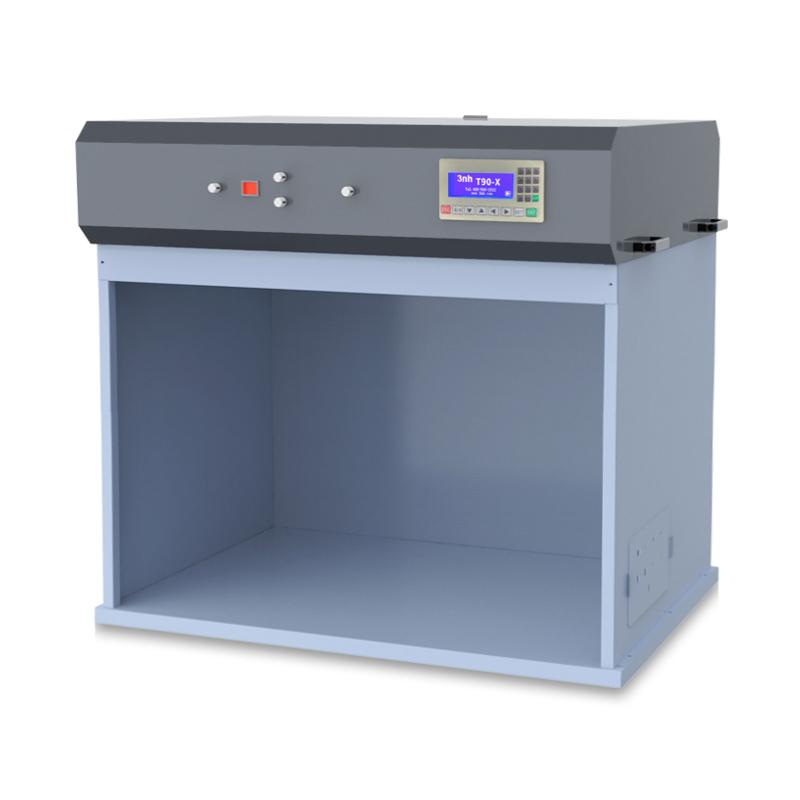

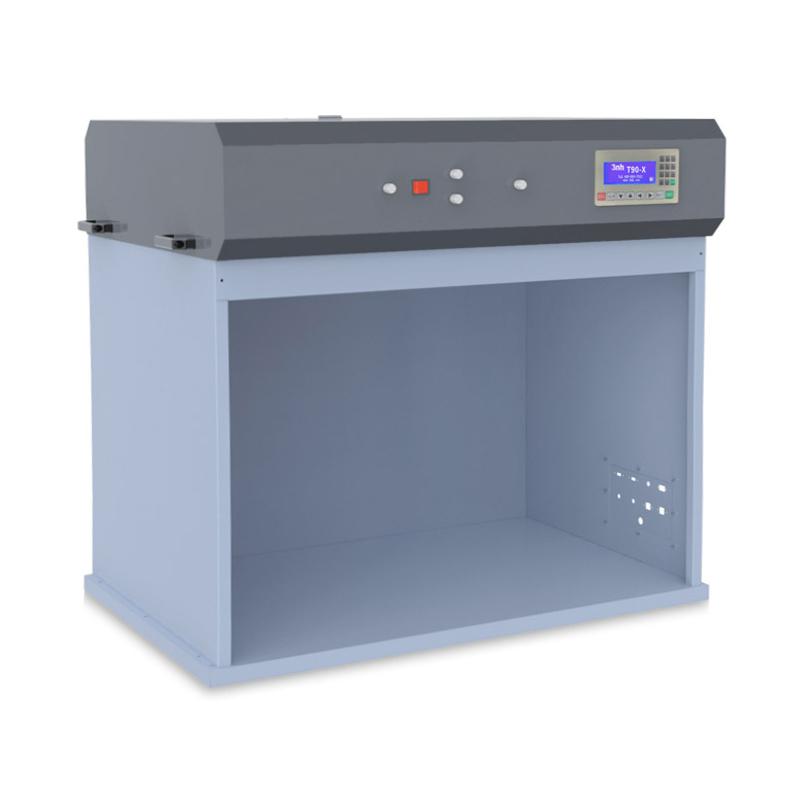

TILO T90-X color matching temperature/illumination camera light box Picture

Introduction

The T90-X is a light source box that provides a lighting environment for the picture card in image detection, and realizes adjustable color temperature, illuminance, and frequency to meet almost all test conditions. By simulating different test environments, the objective indicators of the imaging equipment under different conditions can be objectively evaluated.

Features

  • The color temperature is adjustable, and the color temperature can be adjusted in the range: 2300K-8000K.

  • The illumination is adjustable, and the dimming range is 0-13,000 Lux.

  • The frequency is adjustable, and the frequency adjustment range is 1--100KHz

  • It can be connected to the computer through R485 to USB cable or WIFI wirelessly, and can be controlled by the host computer software (the host computer software is optional).

  • The life span is more than 10,000 hours.

FAQ
QI want to test the performance of the camera under different rays of light, what equipment should I use?
A T90-X camera light box, it can adjust Color temperature (2300K-8000K) and illumination (0-1.3 million Lux), simulate various lighting environments, help you objectively evaluate the camera imagery effect.
QWhat practical application scenarios is this light box suitable for?
A It is often used for the detection of imagery equipment such as cameras and mobile phone cameras, such as simulating different color temperatures and luminance conditions in the laboratory, testing equipment performance, and ensuring that the product can work stably in various environments.
QI need a light box that can be controlled remotely. Does the T90-X support it?
A Yes, T90-X supports connecting to the computer via RS485 to USB or WiFi, and remotely adjusts Color temperature, Illumination and Frequency with the host computer software, which is easy to operate and suitable for automated testing needs.
