TILO T25900 + high illumination/color matching temperature transmission light box

SE
Color temperature, illumination, frequency adjustable
$5170.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

TILO T25900+ Transmission light boxSPEC

TILO T25900+ Transmission light boxDetails

TILO T25900+ Transmission light boxPacking list

SKU
NB047072
Light box Dimensions
410*145*330mm
Light box transmission surface size
290*220mm
Test card slot size
360*8*285mm
Light source control box size
303*302*101mm
Operating Environment
0-28 ℃, Relative Humidity below 85% (non-condensing)
input Voltage
AC210-240V 50/60Hz Maximum power consumption 250W
net Weight
10.8kg
T25900+
Transmission light box
Color temperature, illumination, frequency adjustable

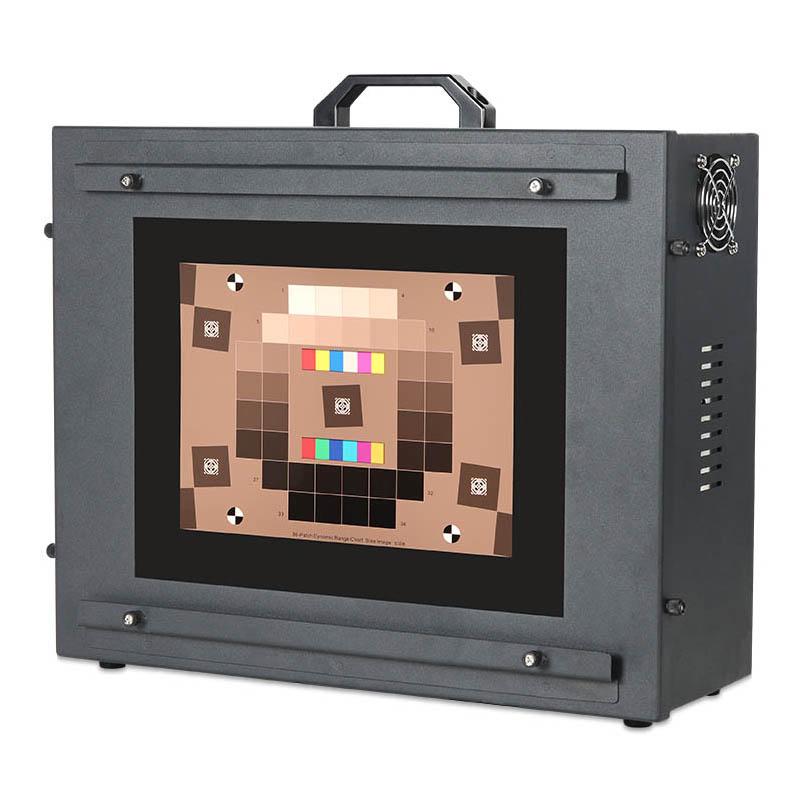

TILO T25900 + high illumination/color matching temperature transmission light box Picture

Introduction

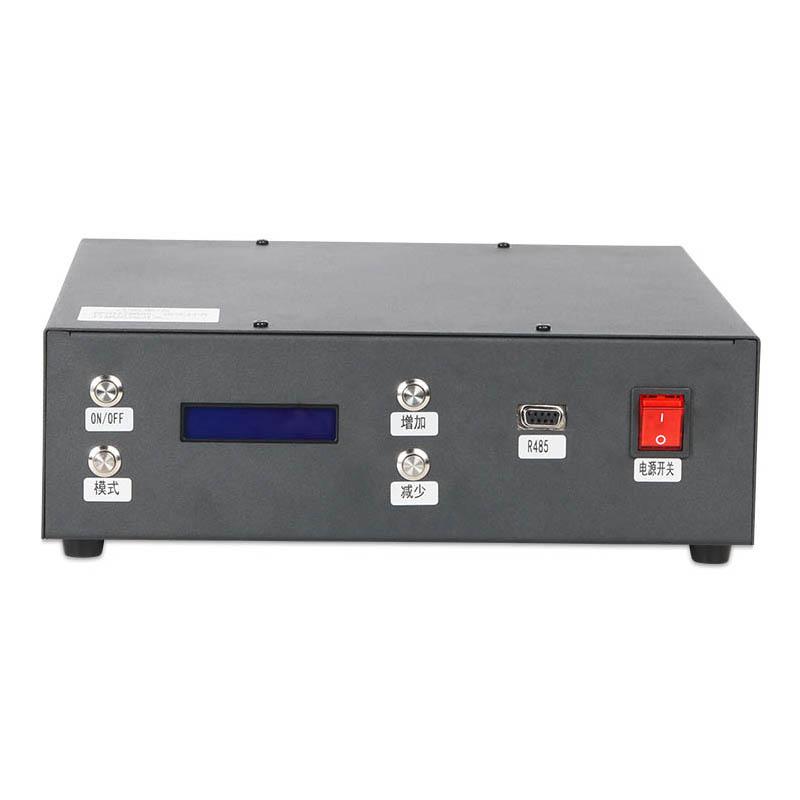

T259000+ high illumination/adjustable color temperature transmission light box is mainly composed of cabinet, handle, test card slot, transmission panel, light source switch, test card fixing screw, power socket, power switch, light source control box and other components, which is a special light box for camera testing. The LED light source with high power, high illumination, no flicker, long life and stable color temperature is used to provide a professional lighting environment for the camera lens evaluation system.

Features

  • The uniformity of the transmission surface > 93%.

  • The color temperature is adjustable, and the color temperature can be adjusted in the range: 2300K-8000K.

  • The illuminance is adjustable, and the dimming range is 0-160,000 Lux.

  • The frequency is adjustable, and the frequency adjustment range is 1--100KHz

  • It can be connected to the computer through R485 to USB cable or WIFI wirelessly, and can be controlled by the host computer software.

  • The life span is more than 10,000 hours.


FAQ
QI want to test the camera imagery effect, is there any suitable light box recommendation?
A Recommended TILO T25900 + transmission light box, it is specially designed for camera testing, illumination 0-160,000 Lux adjustable, Color temperature 2300K-8000K adjustable, can simulate a variety of lighting environment, to ensure accurate and reliable test results.
QWhat specific application scenarios is this transmissive light box suitable for?
A It is mainly used for camera module testing, image mass evaluation and lens calibrating, such as mobile phone camera production line, security monitoring equipment detection, because the uniformity > 93% and no strobe, can provide a stable professional lighting environment.
QI need to remotely control the light box parameters, is T25900 + supported?
A Yes, it can connect to the computer via RS485 to USB wired connection or WiFi wireless, and adjust the illumination, color temperature and Frequency with the host computer software, making it ideal for automated testing and laboratory integration applications.
