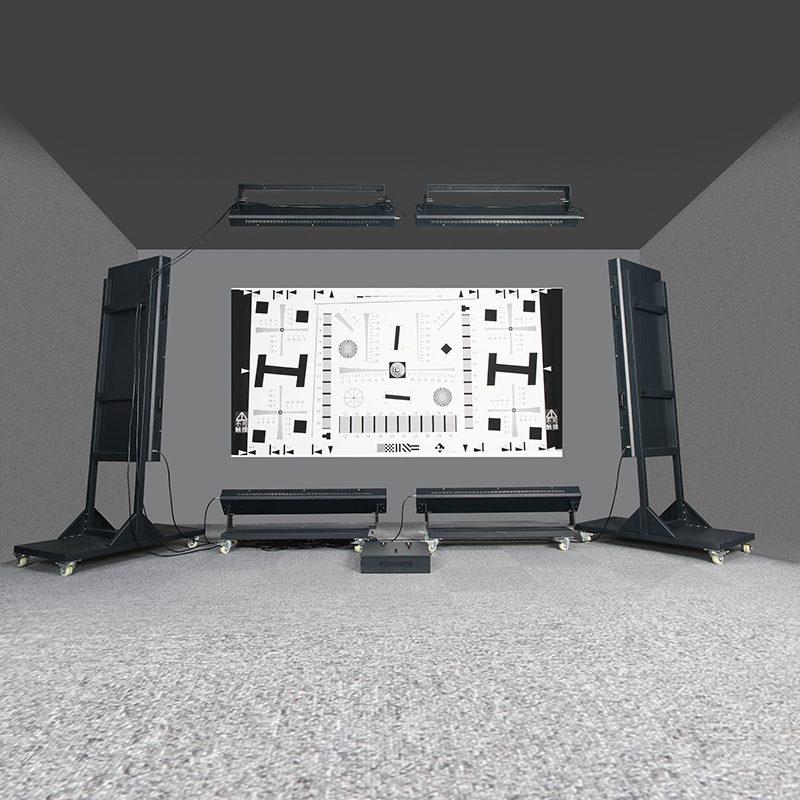

TILO T8B-X (6) filling light up and down, left and right, a total of six lights

T8B-X(6）

fill light

6 up, down, left and right, color matching temperature and illuminance, 8X card use

Introduction

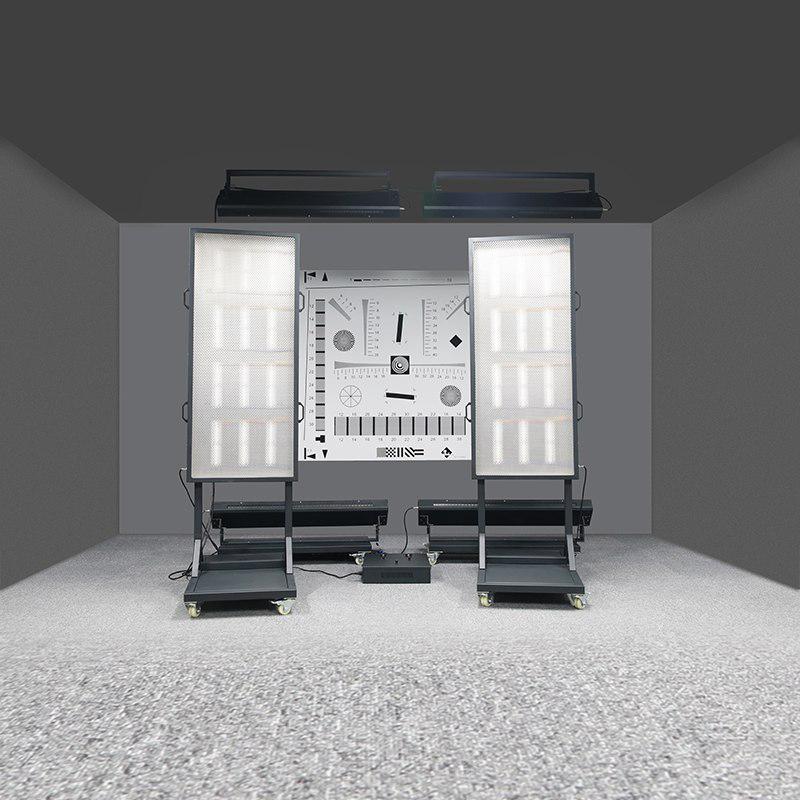

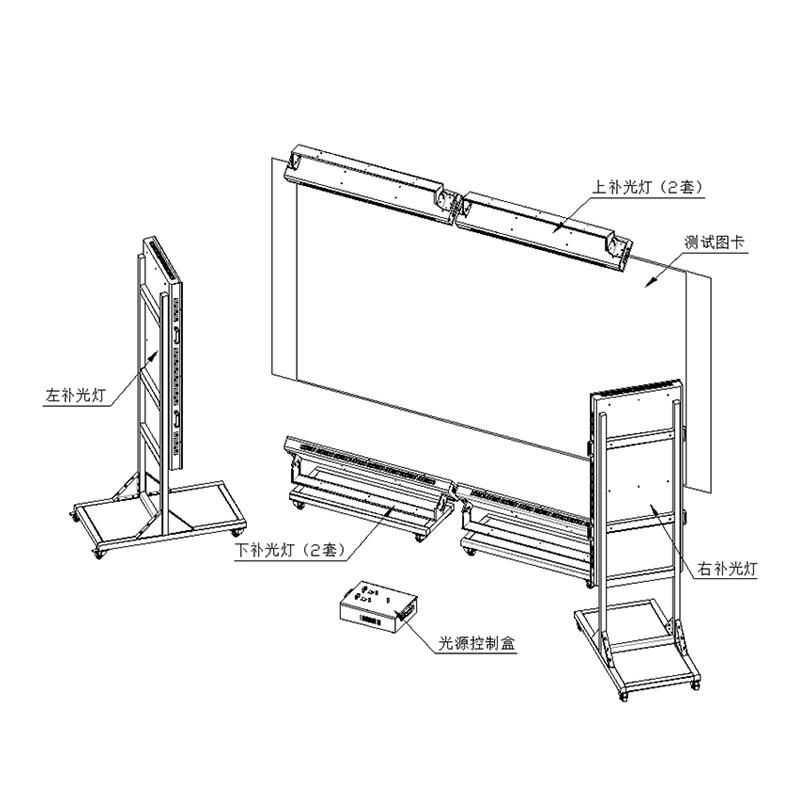

T8B-X Adjustable Illuminance/Adjustable Color Temperature Translucent Light Box isIt is mainly composed of: upper fill light (2 sets), lower fill light (2 sets), left fill light, right fill light (left and right fill lights are exactly the same, interchangeable positions) and light source control box, yesFill light box for camera testing. This product uses a high-power, high-illumination, flicker-free, long-life, and stable color temperature LED light source to provide a professional lighting environment for the camera lens evaluation system, and is suitable for the testing of large-size picture cards.

Features

• The irradiation surface is uniform, and the position and angle of each light box can be flexibly moved and adjusted according to different needs to obtain appropriate light uniformity.

• The color temperature is adjustable, and the color temperature can be adjusted in the range: 2300K--8500K

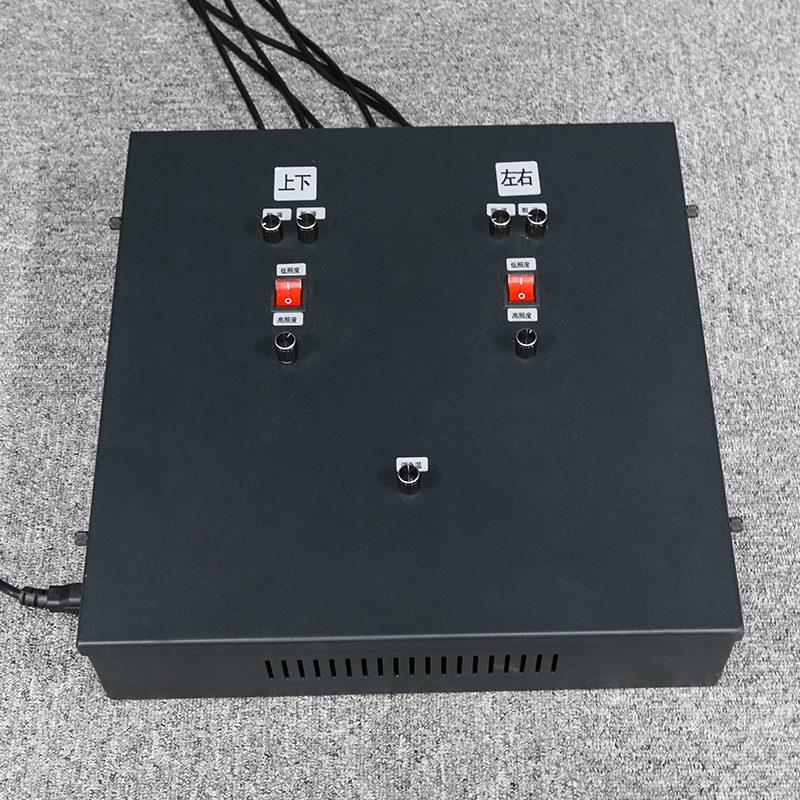

• The illuminance is adjustable, and the dimming is divided into high illumination dimming gear and low illumination dimming gear. Among them, the low-illumination dimming gear contains two dimming knobs, thick and thin, which makes the dimming more accurate. Illuminance adjustment range from 0 to 3000LX (the maximum illuminance is related to the position of the light box, subject to the actual test).

• The light color is stable, no flicker, and the life span is more than 10,000 hours.

• Easy to operate.

Special Instructions

Users can choose only the left and right fill lights or only the upper and lower four fill lights according to their own needs. Free combination to achieve the right effect.

Packing list：Host X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
