TILO T8B-X-HW filled light LED light source

T8B-X-HW

fill light

2 left and right, adjustable color temperature, plus 1 group of infrared lights

Introduction

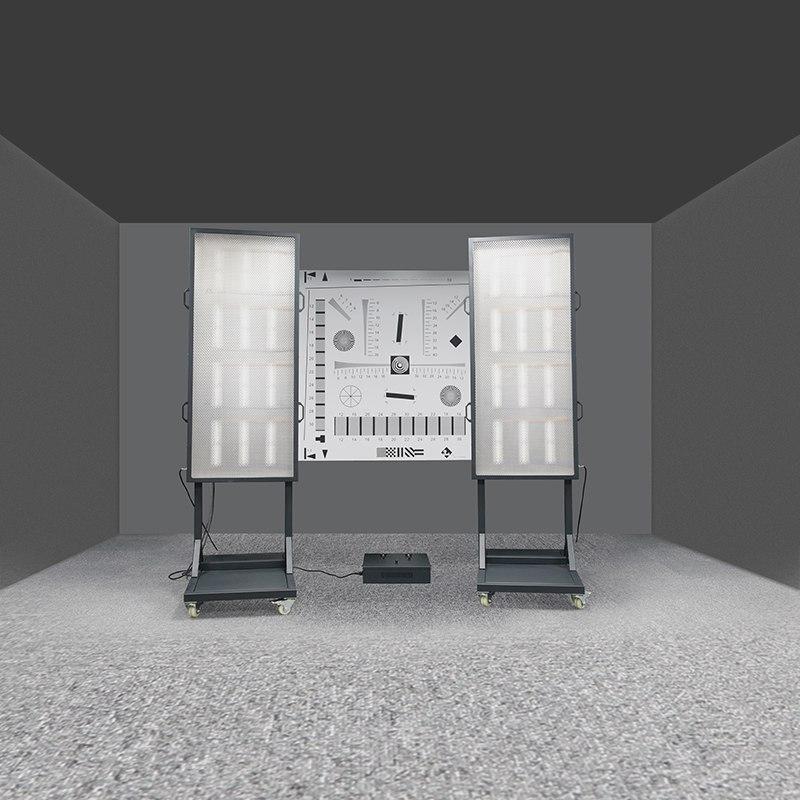

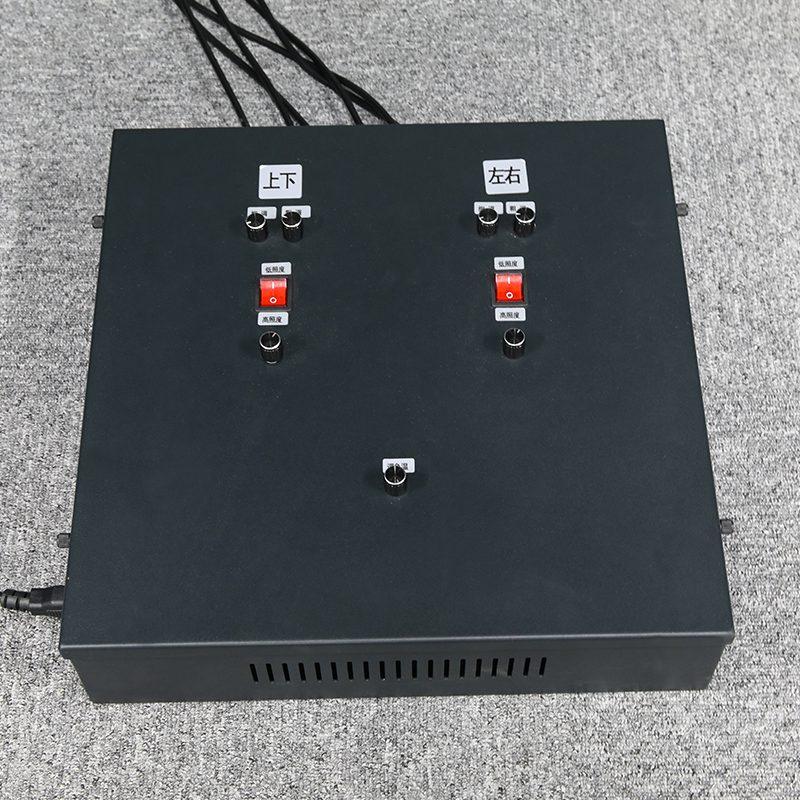

The T8B-X-HW photographic fill light box provides a set of adjustable illuminance/adjustable color temperature visible light and a set of infrared light, which is mainly composed of: left fill light, right fill light (the left and right fill lights are exactly the same, interchangeable positions) and a light source control box, which is a special fill light box for camera testing. This product uses a high-power, high-illumination, flicker-free, long-life, and stable color temperature LED light source to provide a professional lighting environment for the camera lens evaluation system, and is suitable for the test of large-size picture cards.

Features

• The irradiation surface is uniform, and the position and angle of each light box can be flexibly moved and adjusted according to different needs to obtain appropriate light uniformity.

• The light box light source consists of visible and infrared light.

• Visible part of the light box: color temperature adjustable, color temperature adjustable range: 2300K--8000K,

• The illuminance is adjustable, and the dimming is divided into high illumination dimming gear and low illumination dimming gear. Among them, the low-illumination dimming gear contains two dimming knobs, thick and thin, which makes the dimming more accurate. The illuminance adjustment range is 0.5 meters from the light transmission surface of the light box 0 to 3000LX (the maximum illumination is related to the position of the light box, subject to the actual test).

• The light color is stable, no flicker, and the life span is more than 10,000 hours.

• Infrared: LED light source with a wavelength of 850nm as standard, other wavelengths are optional. The irradiation intensity of infrared light is adjustable, and the irradiation intensity is greater than 400uW/CM2 at a distance of 0.5 meters from the translucent surface of the light box.

• Easy to operate.

Packing list：Host X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
