3NH TS7708 portable Colorimeter
SE
TS7708
3NH TS7708 Portable ColorimeterSPEC
3NH TS7708 Portable ColorimeterDetails
3NH TS7708 Portable ColorimeterPacking list
- SKU
- NB047097
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception);
- SCI/SCE measurement; including UV/exclude UV measurement;
- D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; includes UV/exclude UV measurement;
- meet the standard
- CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
- Integrating sphere size
- Φ40mm
- lighting source
- Light spectrum LED light source, UV light source
- spectroscopy
- Plane grating spectroscopy
- Sensor
- Silicon photodiode array (dual row 40 groups)
- Measurement Wavelength range
- 400~700nm
- wavelength interval
- 10nm
- Half bandwidth
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- Three caliber: MAV: Should 8mm/Should 10mm; SAV: Should 4mm/Should 5mm; LAV: 1x3mm LAV1x3mm: slightly worse Accuracy, can be used for color difference testing
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color Space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
- color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chroma metrics
- WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), monochromatic index Mt, colour fastness, color fastness, force, coverage, 8 degree gloss, 555 shade classification
- Observer Angle
- 2°/10°
- observation light source
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
- show
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Measurement time
- Approximately 1.5 seconds (approximately 3.2 seconds for simultaneous SCI/SCE testing)
- Sexual repeability
- Spectroscopic reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%): chromatic value: MAV/SCI, Delta E * ab within 0.03 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
- Inter-instrument Agreement
- MAV/SCI, Delta E * ab within 0.15 (BCRA series ⅱ 12 color plate measurement average)
- Measurement method
- Single measurement, average measurement (2~ 99 times)
- positioning method
- Display camera viewfinder positioning, stabilizer positioning
- Dimensions
- Length X width X height = 129X76X217mm
- Weight
- Approx. 600g
- Battery level
- Lithium battery, 3.7V, 5000mAh, 6000 times in 8 hours
- Lighting source life
- More than 3 million measurements in 5 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- interface
- USB, Bluetooth ® 4.2
- store data
- 1000 master standards, 30,000 samples (one data can include SCI/SCE at the same time)
- language
- Simplified Chinese, English, Traditional Chinese
- Operating temperature range
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage temperature range
- -20~50 ℃, 0~85% RH (no condensation)
- optional accessories
- Micro printer, powder test box
Introduction
Taishuang TS7X series grating Spectrophotometer is a grating Spectrophotometer that 3nh spent 3 years and carefully designed, with independent intellectual property rights. The instrument uses 1000-line precision shining grating as the beamsplitting element, built-in silicon photodiode array (double row 40 groups) sensor, imported whiteboard, repeatability ΔE*ab is easily controlled within 0.03, using high-life full-spectrum LED as the light source, and the optical resolution is less than 10nm in the visible light range.
Under the D8 geometric optical illumination conditions recommended by CIE, the TS7708 Spectrophotometer can accurately measure the SCI and SCE reflectance data of samples/fluorescence samples, and can accurately measure and express various color difference formulas and color indices in a variety of color spaces. With the help of Taishuang TS7708 Spectrophotometer , it can easily achieve accurate color transmission, and can also be used as a testing equipment for accurate color matching system. It is also widely used in color difference quality control. The TS7708 is equipped with high-end color management software, which can be connected to a computer to achieve more functional expansion.
Application
TS7708 Spectrophotometer is equipped with three measuring apertures: Φ8mm, Φ4mm, and 1x3mm, which has wider adaptability, accurate color measurement and stable performance, and is widely used in plastic electronics, paints and coatings, textile printing and dyeing, printing and paper products, automobiles, medical, cosmetics and food industries, as well as in scientific research institutions and laboratories.
peculiarity
1. Silicon photonic diode array (dual 40 array) sensor
The larger area of the dual 40 array sensor, strong light will not be saturated, weak light sensitivity is higher and the spectral response range is wider, which ensures the measurement speed, accuracy, stability and consistency of the instrument, masters the core technology, and is on the same platform with international standards to achieve complete compatibility.

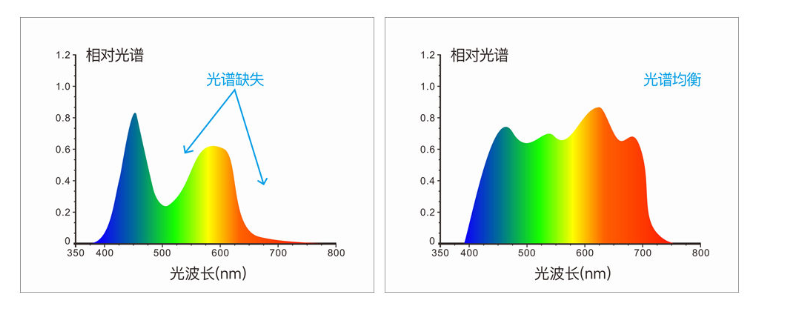

2. Adopt full-band balanced LED light source
The all-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LEDs in a specific wavelength band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.
3. Grating spectroscopy technology
Razzle splitting technology for higher resolution and more accurate color measurement.

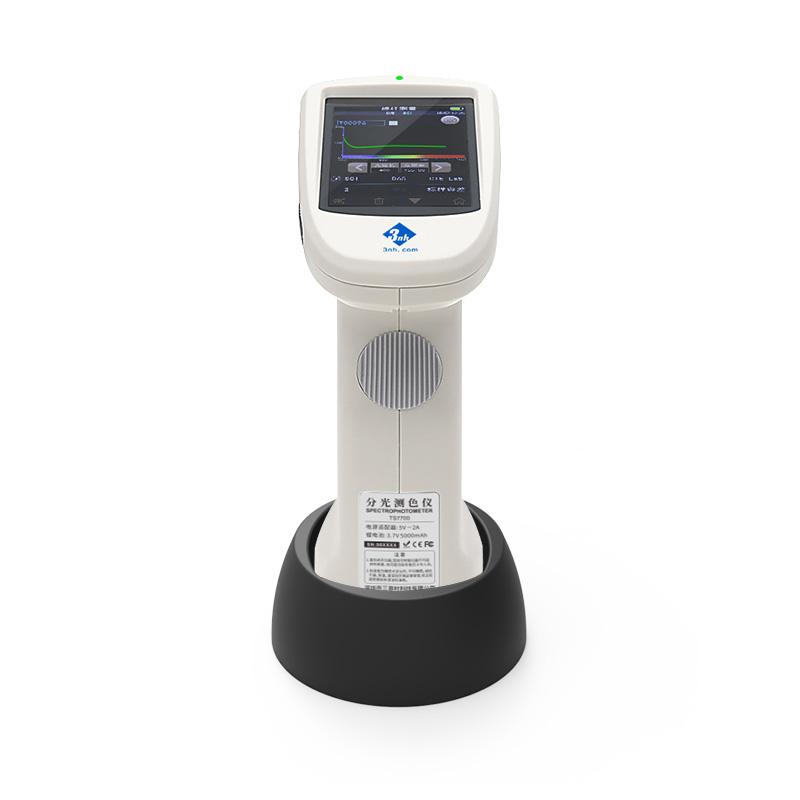

4. Place the base with peace of mind to ensure that the whiteboard is not dirty

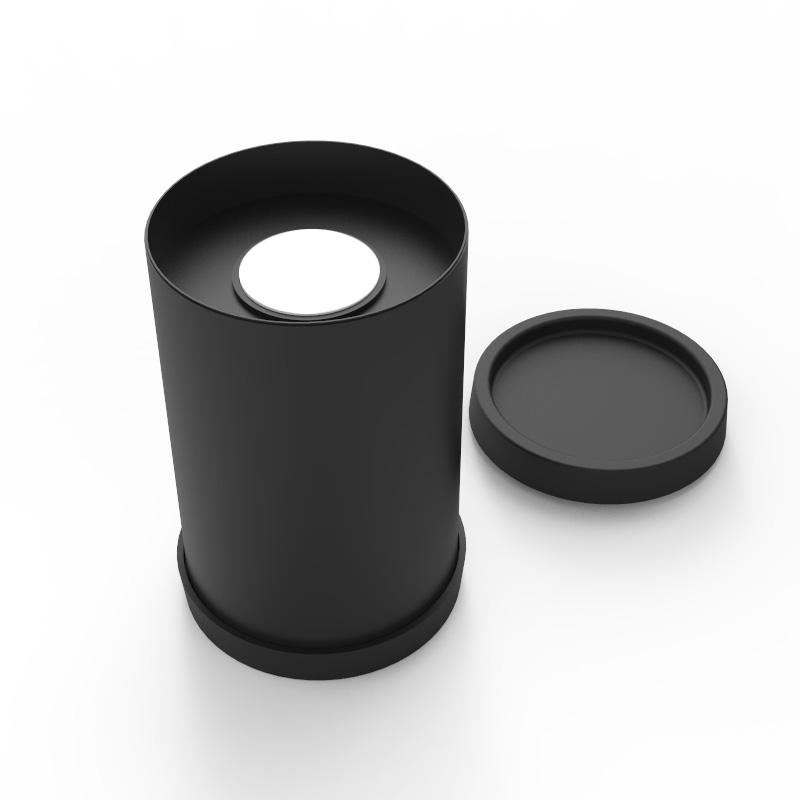

5. Professional-grade whiteboard
6. Fast charging
The special fast charging method, low-Voltage reminder charging or charging during off-duty hours, ensures the capacity and life of the battery (note: frequent and repeated charging of the battery is more harmful).
7. Equipped with three measuring calibers, larger to meet the needs of sample measurement
The Spectrophotometer TS7708 is equipped with five measuring apertures: Ø8mm platform aperture, Ø8mm pointed aperture, Ø4mm platform aperture, Ø4mm pointed aperture, and 1x3mm aperture, which meet the measurement needs of most special samples.

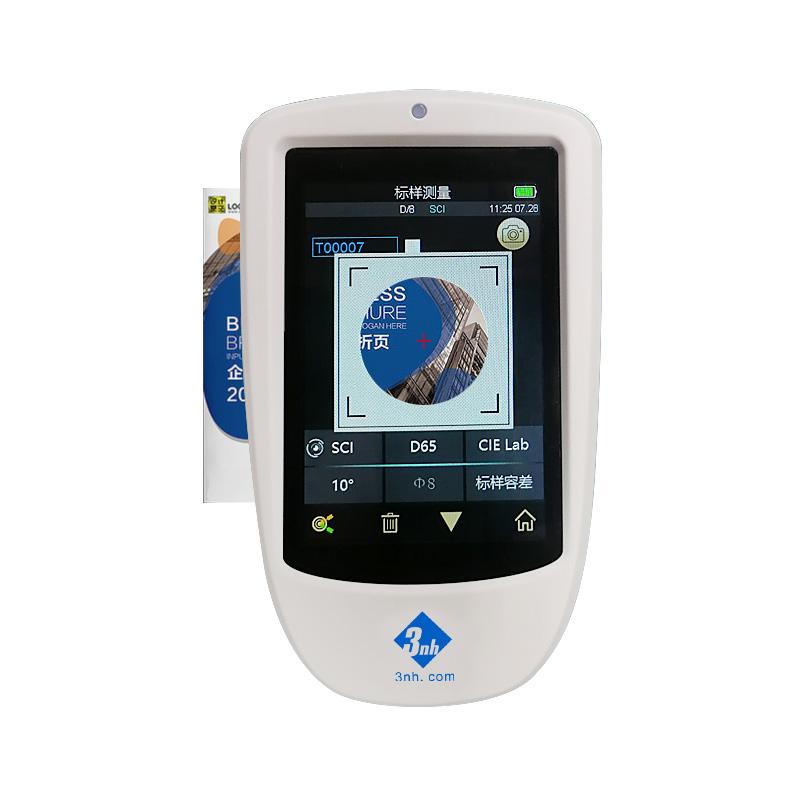

8. The camera framing positioning can clearly observe the measured area
The Spectrophotometer TS7708 has a built-in camera for framing and positioning, and through the real-time framing of the camera, it can accurately judge whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.
10. Good inter-table difference and repeatability
Ensures consistency of measurement data across multiple devices for color matching and accurate color transfer.
11. A variety of color measurement space and observation light sources
Available in CIE LAB, XYZ, Yxy, LCh, CIE LUV, S-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2) color spaces, as well as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) A variety of observation light sources can meet the special measurement needs under different measurement conditions.

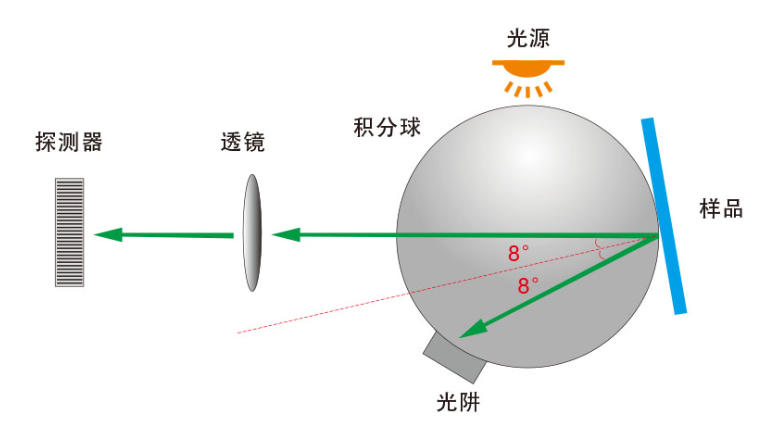

12. Adopt the internationally accepted D/8 SCI/SCE synthesis technology
The D/8 (SCI/SCE) measurement structure is used to reflect the color itself more objectively, reduce the influence of the surface texture of the object on the test results, and comply with the standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

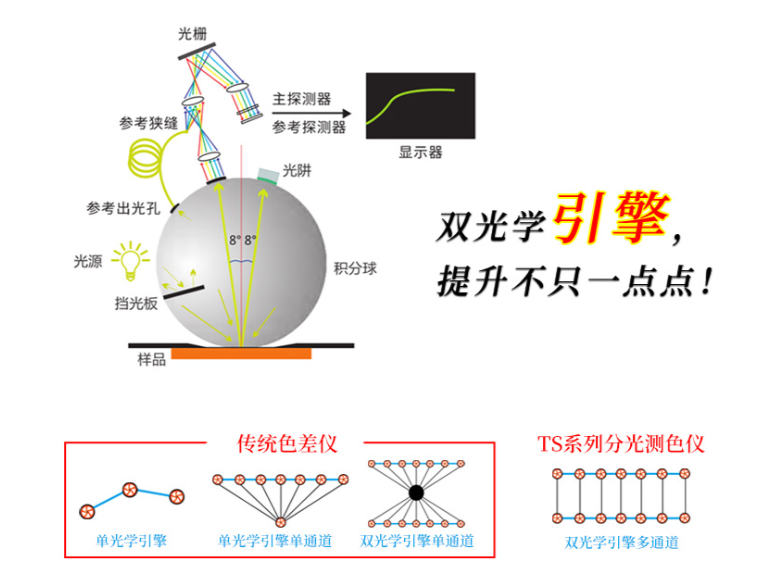

13. The color measurement of the dual optical path system is more accurate
The dual-optical path system has an optical resolution of less than 10nm in the visible range, and can measure the SCI and SCE spectra of samples at the same time.

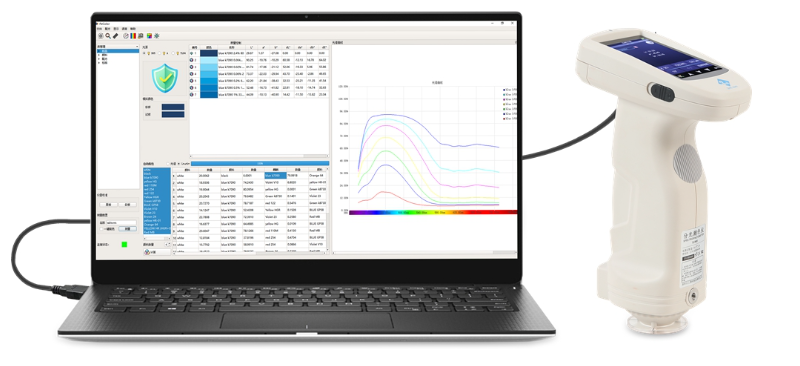

14. The PC software has a powerful function extension
The TS7708 Spectrophotometer is equipped with SQCX quality management software, which is suitable for quality monitoring and color data management in various industries. Digitize the user's color management, compare the color difference, generate a test report, provide a variety of color space measurement data, and customize the customer's color management work.
