CHNSPEC DS64 Colorimeter 5 Caliber, Multi-Software
SE
DS64
CHNSpec DS64 ColorimeterSPEC
CHNSpec DS64 ColorimeterDetails
CHNSpec DS64 ColorimeterPacking list
- SKU
- NB047101
- Measurement structure
- D/8,SCI+SCE
- Measurement repeability
- dE*ab≤0.02
- Display Accuracy
- 0.01
- lighting source
- Full-band balanced LED light source
- UV light source
- support
- caliber
- Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm
- Measurement index
- Light spectrum reflectance, RGB color difference, whiteness, yellowness, blackness, colour fastness, color fastness, Tint, color Density CMYK (A, T, E, M), chromatic index Milm, Munsell, hiding power, force (dyestuff strength, tinctorial strength)
- Light source condition
- A, B, C, D50, D55, D65, D75F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, etc
- Software support
- Andriod, iOS, Windows, WeChat Mini Program, Hongmeng
- Accuracy Guarantee
- Guaranteed Measurement Qualification
- Field of view
- 2°，10°
- integrating sphere diameter
- 40mm
- follow the standard
- CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7
- spectroscopy
- High Accuracy nano beam splitter
- Sensor
- Silicon photodiode array double 16 groups
- wavelength interval
- 10nm
- Wavelength range
- 400-700nm
- Reflectance Measurement Range
- 0-200%
- Reflectance resolution
- 0.01%
- Measurement time
- About 1 second
- interface
- USB, Bluetooth
- screen
- Full-color screen, 3.5 inches
- battery Capacity
- Single charge can be continuously measured 8000 times, 7.2V/3000mAh
- Light source lifetime
- 5 million times
- language
- Simplified Chinese, English
- Storage
- Instrument: 10,000; APP: Mass storage
Features

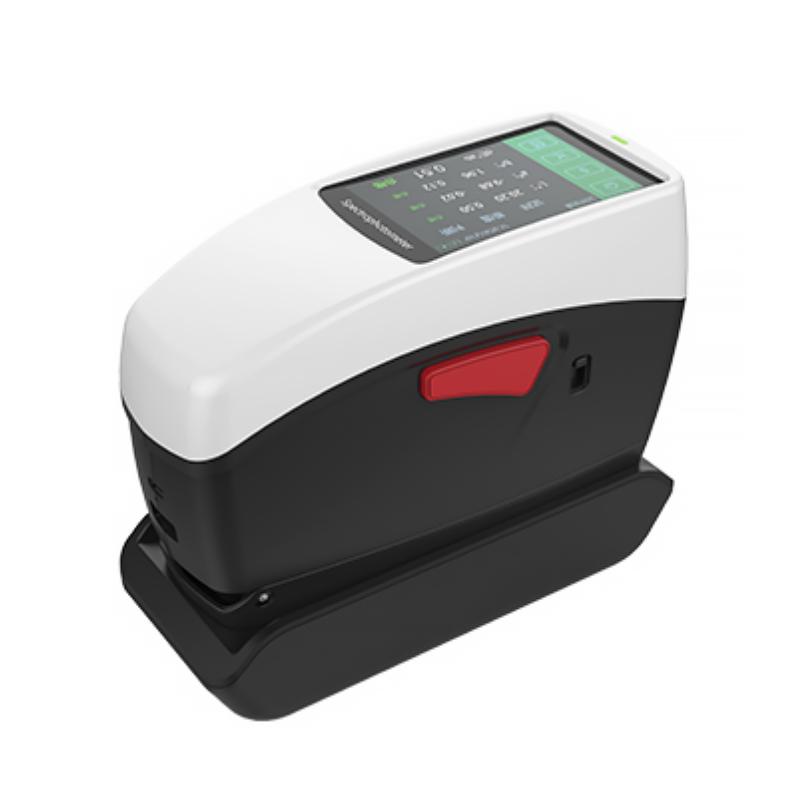

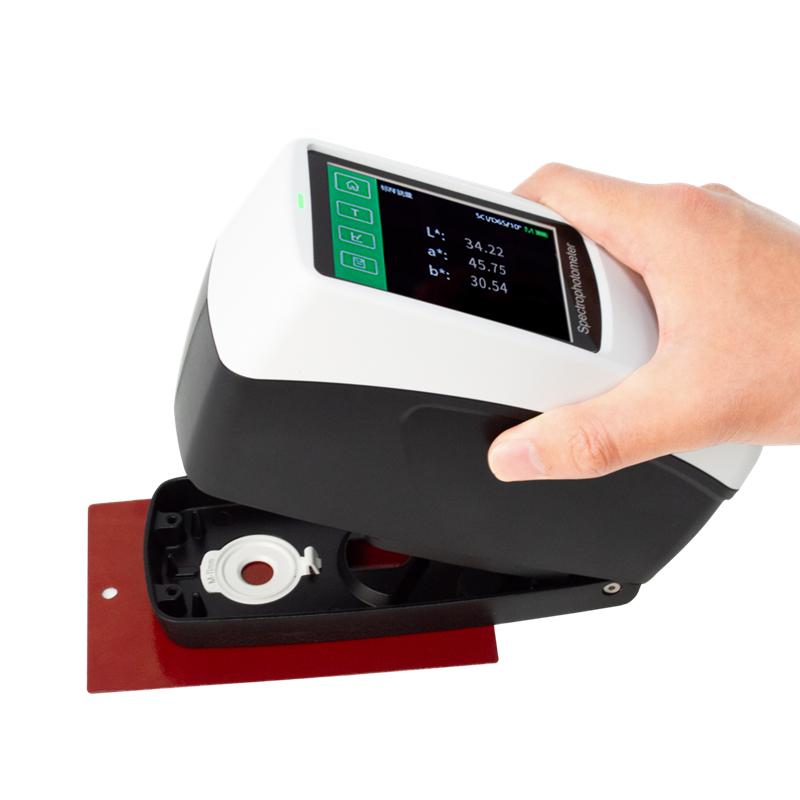

1. Horizontal press measurement, physical positioning observation window
The DS64 Spectrophotometer features a horizontal design with a low center of gravity for stable measurement of the surface being measured. During the measurement process, the measurement position can be viewed at any time through the observation window to avoid measurement position errors.

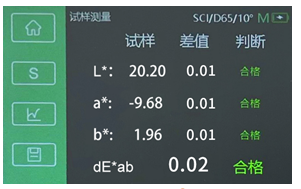

2. Ultra-high repeatability: dE*ab≤0.02
Repeatability is an important metric to describe the performance of a Spectrophotometer . The DS64 Spectrophotometer uses high-precision nano Spectrophotometer s, so that the repeatability accuracy of the instrument has reached a level that is difficult to match with similar products, dE*ab≤0.02.
3. Support 5 kinds of measurement aperture
In order to facilitate users to measure samples of different sizes, DS64 Spectrophotometer supports 5 calibers for customers to use: Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm, which can be flexibly applied to a variety of different samples and test conditions.
4. More than 30 measurement parameters and nearly 40 evaluation light sources
DS64 Spectrophotometer provides 30+ measurement indicators such as spectral reflectance, CIE-Lab, CIE-LCh, ΔE*ab, hiding power, whiteness, yellowness, etc.; Nearly 40 evaluation light sources such as A, B, C, D50, D55, D65 and so on are available, including almost all color measurement indicators and light source types in the industry.
5. Support WeChat applet, Android, Apple, Hongmeng, mobile APP
The DS64 Spectrophotometer can be connected to a variety of mobile phones through a variety of mobile apps.
Users no longer need to pass the color value of the sample and the physical object, and can easily transmit the color data through WeChat
Users can find the most similar colors in multiple color swatches.
Users can create a personal color database, enter printing, coatings, textiles and other Color Chart information, and the created color library can be uploaded to the cloud, multi-device data sharing, and color processing is more convenient.
Enterprise users can create and manage their own Color Chart information database and color recipes in the cloud, and share the information database and color recipes with their own users through the invitation code.
6. Use the powerful PC color management system ColorExpert
The DS64 Spectrophotometer comes with the Windows color management system, ColorExpert, which connects to the DS64 Spectrophotometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four functional modules: My Color, Color Detection, Color Matching System, and Personal Center.
