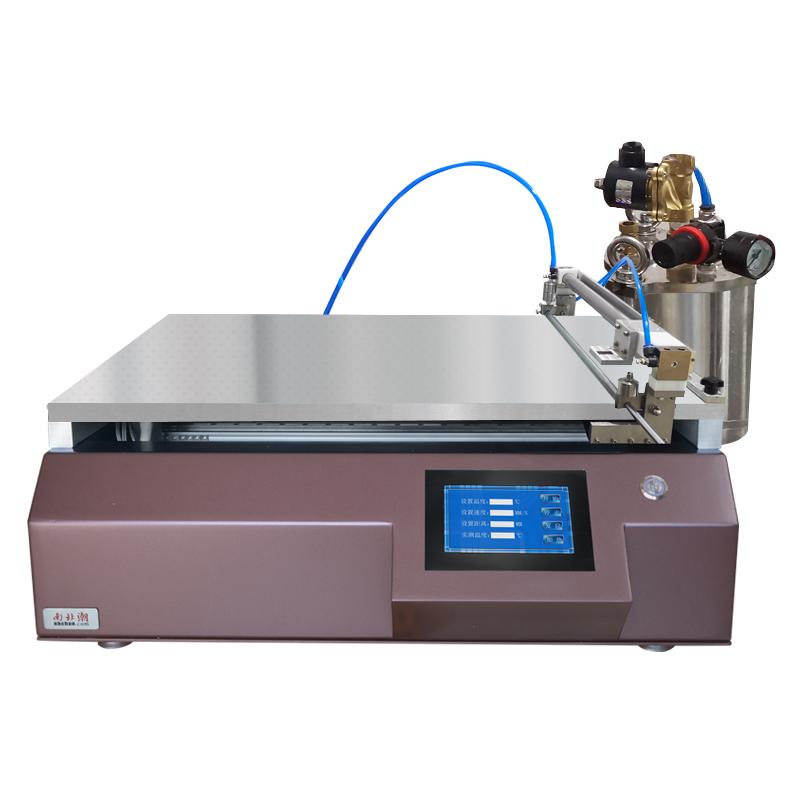

Chinese TBJ-B4-DJ11 metering rod & drawdown blade Automatic Film Applicator with automatic feeding system
SEWire rod + scraper + heating + automatic feeding system, using pneumatic feeding system, effective Spreader area of 500 * 600mm, speed accuracy 1mm/s.
$7533.00/set
PromotionLoading...
Coupon
Model：
TBJ-B4-DJ11
zy
Manufacturer authorization
Similar products
zy TBJ-B4-DJ11 Automatic Film ApplicatorSPEC
zy TBJ-B4-DJ11 Automatic Film ApplicatorDetails
zy TBJ-B4-DJ11 Automatic Film ApplicatorPacking list
- SKU
- NB047136
- Coating method
- Bar + adjustable drawdown blade + automatic feeding system
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.001-10Mm drawdown blade can be lifted
- Drawdown blade material
- 304 stainless steel
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 500 * 600Mm (Miscellaneous size can be customized)
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Mayer Rod Accuracy
- ±0.001mm
- Spreader distance control
- The number can be set arbitrarily within the range of 1-400mm
- Host Power Supply
- 220V 50Hz
- Dimension
- 1022*560*500mm
- Net Weight
- 65KG
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- Speed regulation Accuracy
- 1mm/s
- Heating Temperature range
- RT+~180℃
- Temperature Accuracy
- ±3℃
- Heating mode
- Baseplate heating
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-B4-DJ11
Automatic Film Applicator
Wire rod + scraper + heating + automatic feeding system, using pneumatic feeding system, effective Spreader area of 500 * 600mm, speed accuracy 1mm/s.
TBJ-X small coating testing machine for experiments adopts all imported accessories, and the price is cheap, which has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing. TBJ-B4-DJ11 automatic coating machine is a wire rod scraper film coating machine with automatic feeding system.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
