JINGRUI SX2-5-12GJ muffle furnace Heating power 5KW Volume 7.2L

JINGRUI SX2-5-12GJ muffle furnace is an economical muffle furnace with high temperature control accuracy, also known as intelligent Resistance Furnace, temperature control accuracy is +/- 1 ℃, SX2-5-12GJ muffle furnace Heating power 5KW, volume is 7.2L.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

JingRui SX2-5-12GJ Box FurnaceSPEC

JingRui SX2-5-12GJ Box FurnaceDetails

JingRui SX2-5-12GJ Box FurnacePacking list

SKU
NB004722
maximum temperature
1200℃
Temperature range
≤1100℃
Heating Elements
Iron chromium aluminum alloy heating wire
Furnace Volume
7.2L
Heating power
5KW
Temperature control Accuracy
±1℃
Heating rate
≤15℃/min
Temperature control instrument
LCD/smart PID temperature control
Thermocouple
Thermocouple K
Furnace size
300*200*120mm
Power supply Voltage
Two-phase AC380V/50Hz
Dimension
640*440*630mm
SX2-5-12GJ
Box Furnace

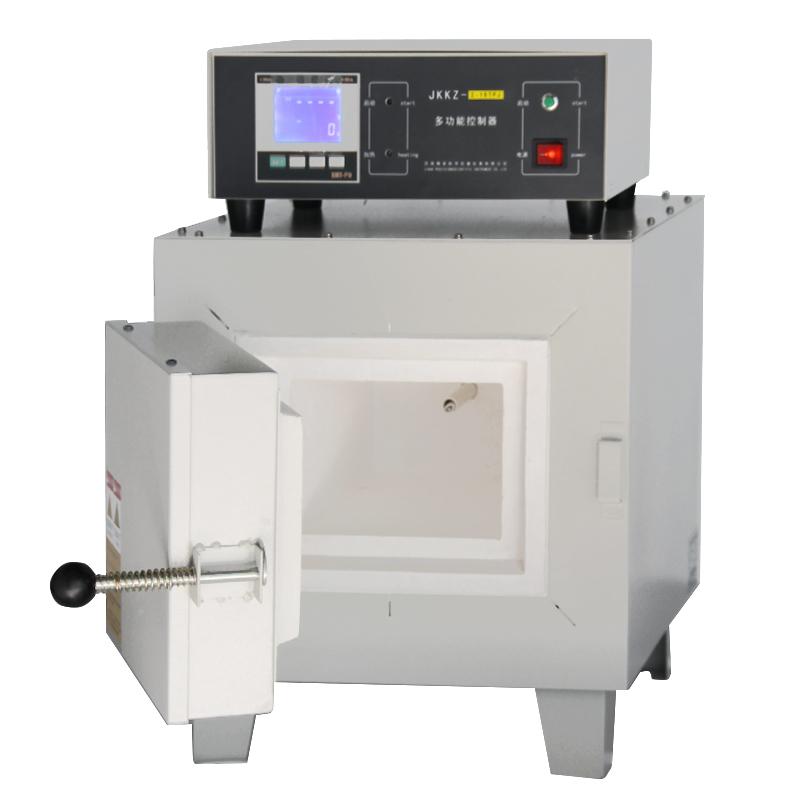

JINGRUI SX2-5-12GJ muffle furnace Heating power 5KW Volume 7.2L Picture

MuffleIntroduction

The elite SX2-5-12GJ muffle furnace is an economical muffle furnace with high temperature control accuracy, the temperature control accuracy is ±1°C, the heating power of SX2-5-12GJ muffle furnace is 5KW, and the volume is 7.2L.SX2-5-12GJ muffle furnace uses liquid crystal display temperature controller, with timing switch function, and the Timer Setting is 99 hours.SX2-5-12GJ's paving material is an ordinary refractory material, which is economical and practical.

Features

1、eliteSX2-5-12GJ muffle furnaceIt comes in a white metal case.

2. Ordinary Al is used2O3Refractory material, cost-effective, widely used,

3. The heating element is an iron-chromium-aluminum alloy heating wire.

Actual picture of the product

Elite SX2-5-12GJ muffle furnace real shot 1

Elite SX2-5-12GJ muffle furnace real shot 2


FAQ
QHow long does it take for SX2-5-12GJ muffle furnace to rise from room temperature 25 degrees to 1000 degrees Celsius?
