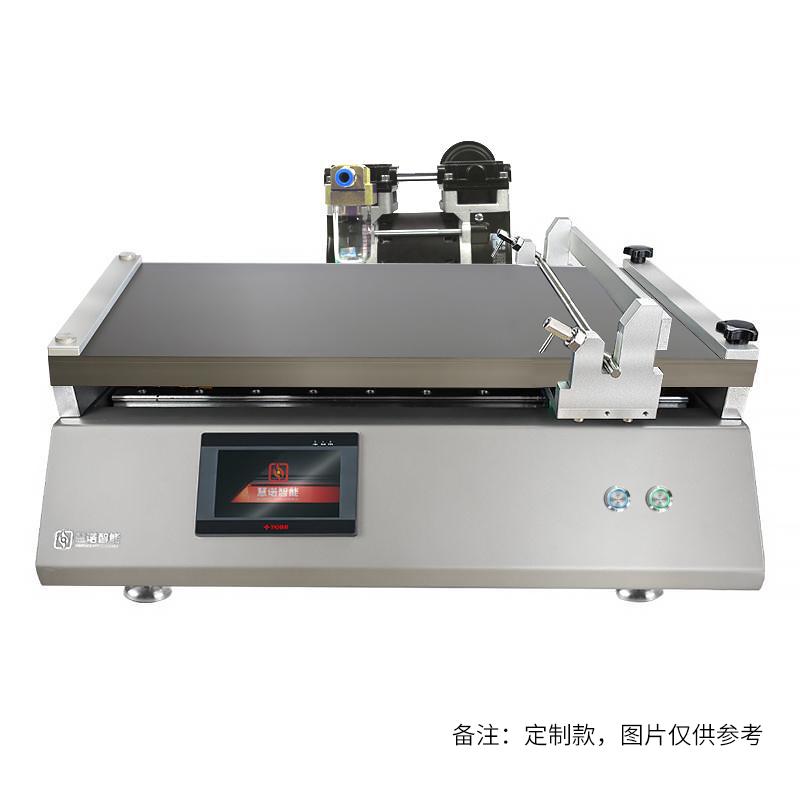

HuiNuo TM 2300/02 drawdown blade heating vacuum adsorption Automatic Scraping Machine Electric scraping equipment
SE
TM2300/02
-
HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm$ 6289.00SE -
HuiNuo TM 2300/04 drawdown blade heating vacuum adsorption laboratory Film Applicator Effective Spreader area 400 * 400mm$ 5978.00SE -
HuiNuo TM 2300/03 drawdown blade Vacuum chuck Automatic Film Applicator Effective area 650x400mm$ 6133.00SE

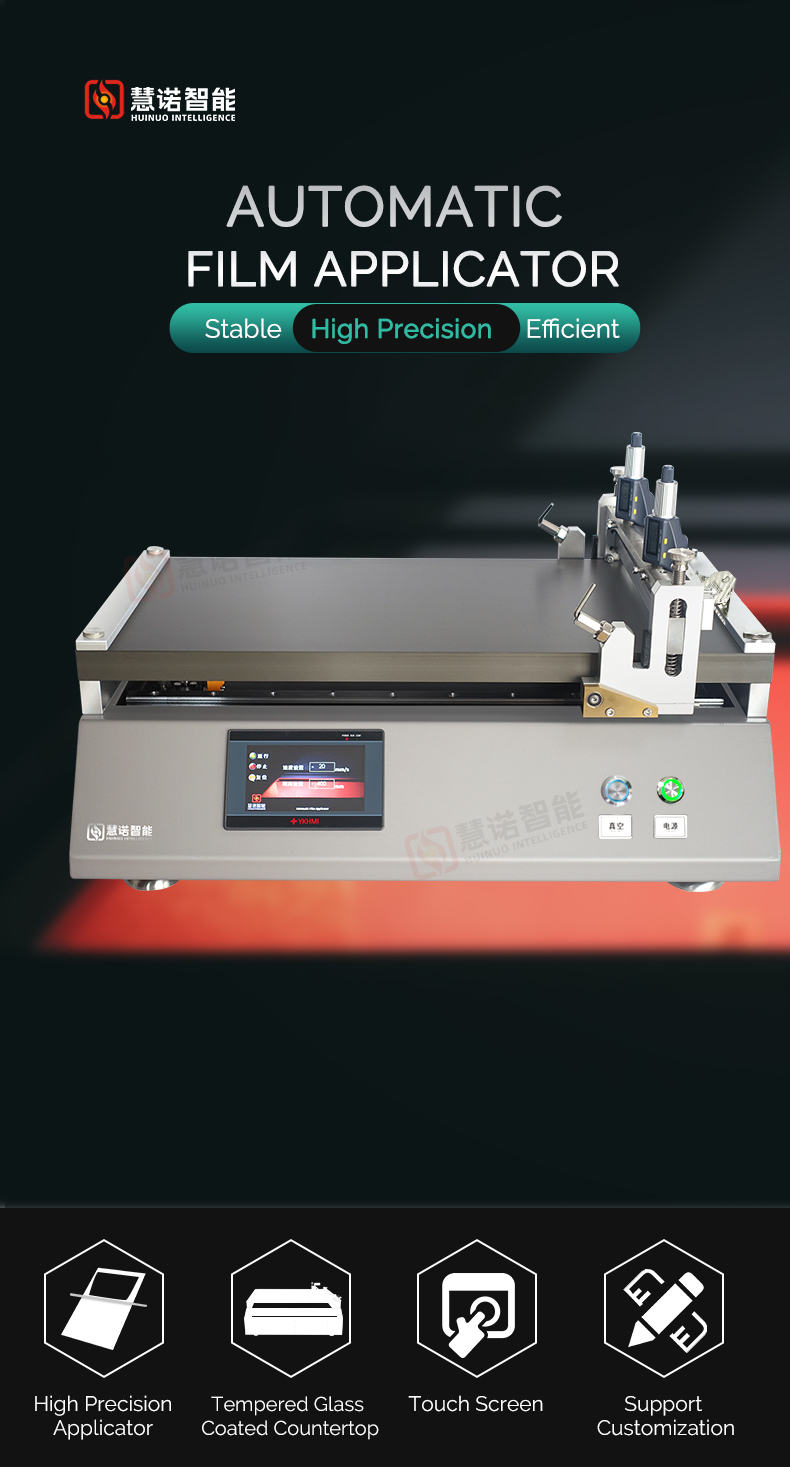

HuiNuo TM2300/02 Automatic Film ApplicatorSPEC
HuiNuo TM2300/02 Automatic Film ApplicatorDetails
HuiNuo TM2300/02 Automatic Film ApplicatorPacking list
- SKU
- NB047235
- Coating method
- Drawdown blade

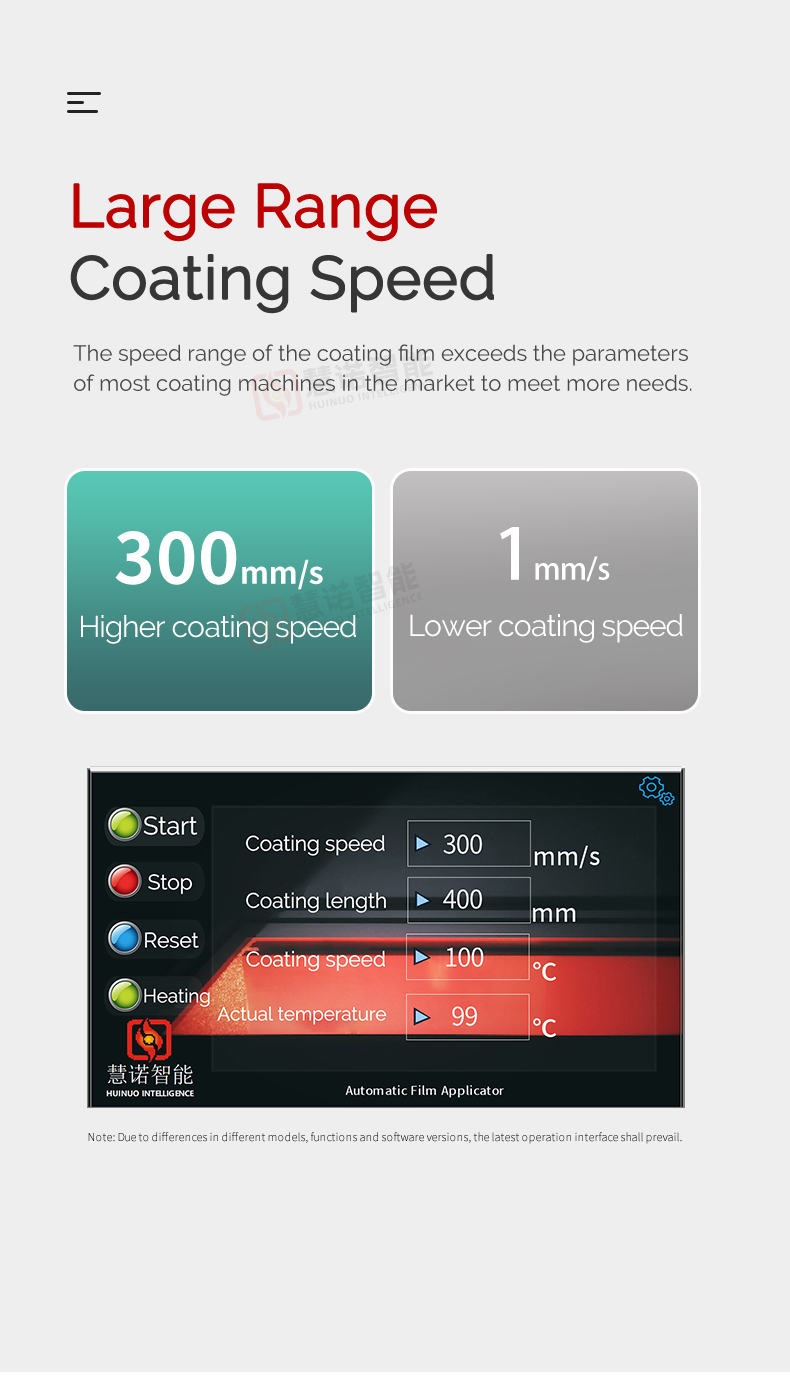

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum adsorption + fixture
- Coating table material
- Microporous ceramics
- Coating table size
- 400*300mm
- Effective coating Area
- 300 * 200Mm (can be customized)
- Drawdown blade thickness range
- 0~10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade resolution
- 0.001mm
- Vacuum Area
- 300 * 200Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (higher temperature can be customized)
- Temperature Uniformity
- ±1℃
- Operating language
- Chinese (can be customized in English)
- Dimension
- 658*438*400mm
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 1800w
Overview
The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This film coating machine is a scraper-type automatic coating machine, with heating and vacuum adsorption functions, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Application
The film coating machine is suitable for coating and sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on films, release liners, aluminum foils, copper foils, and tissue paper.

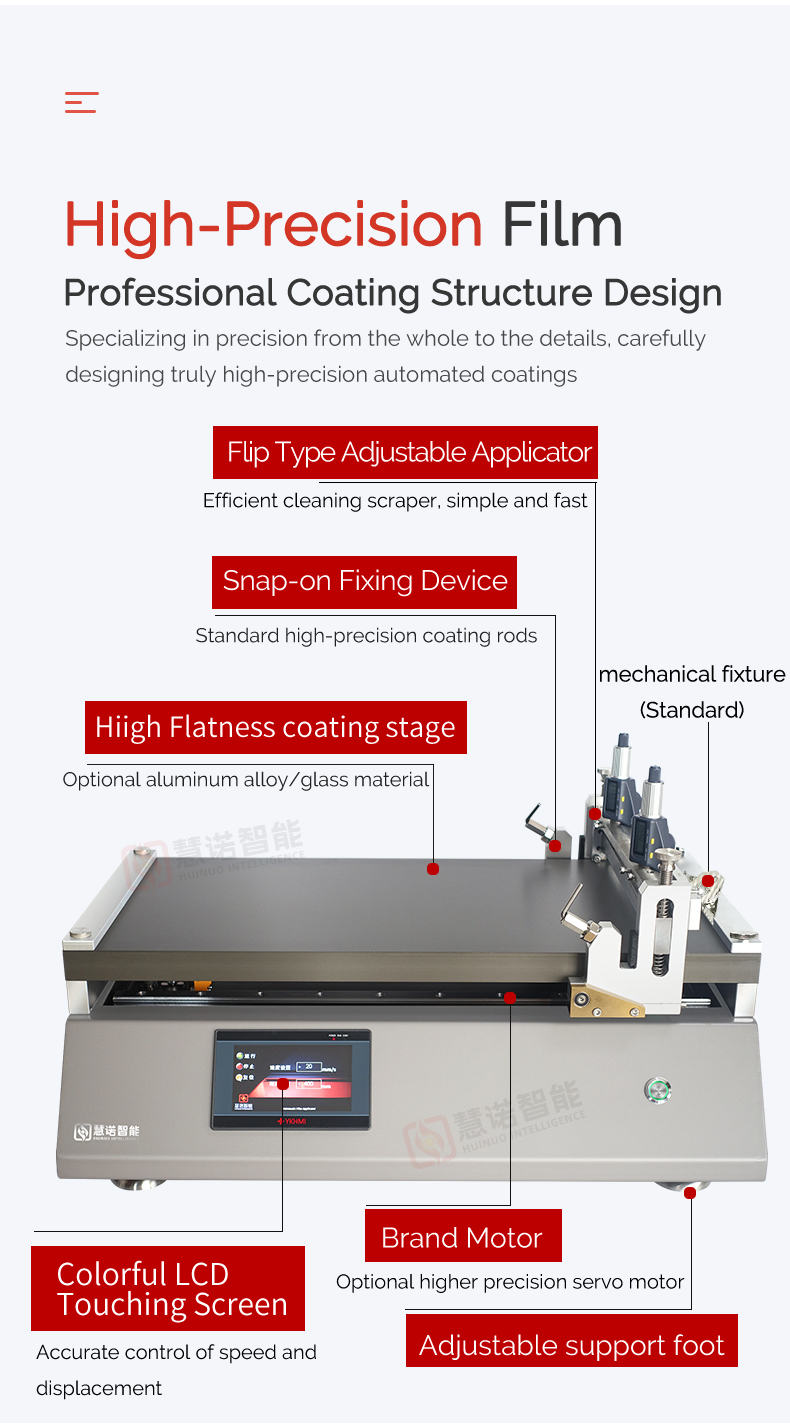

Features

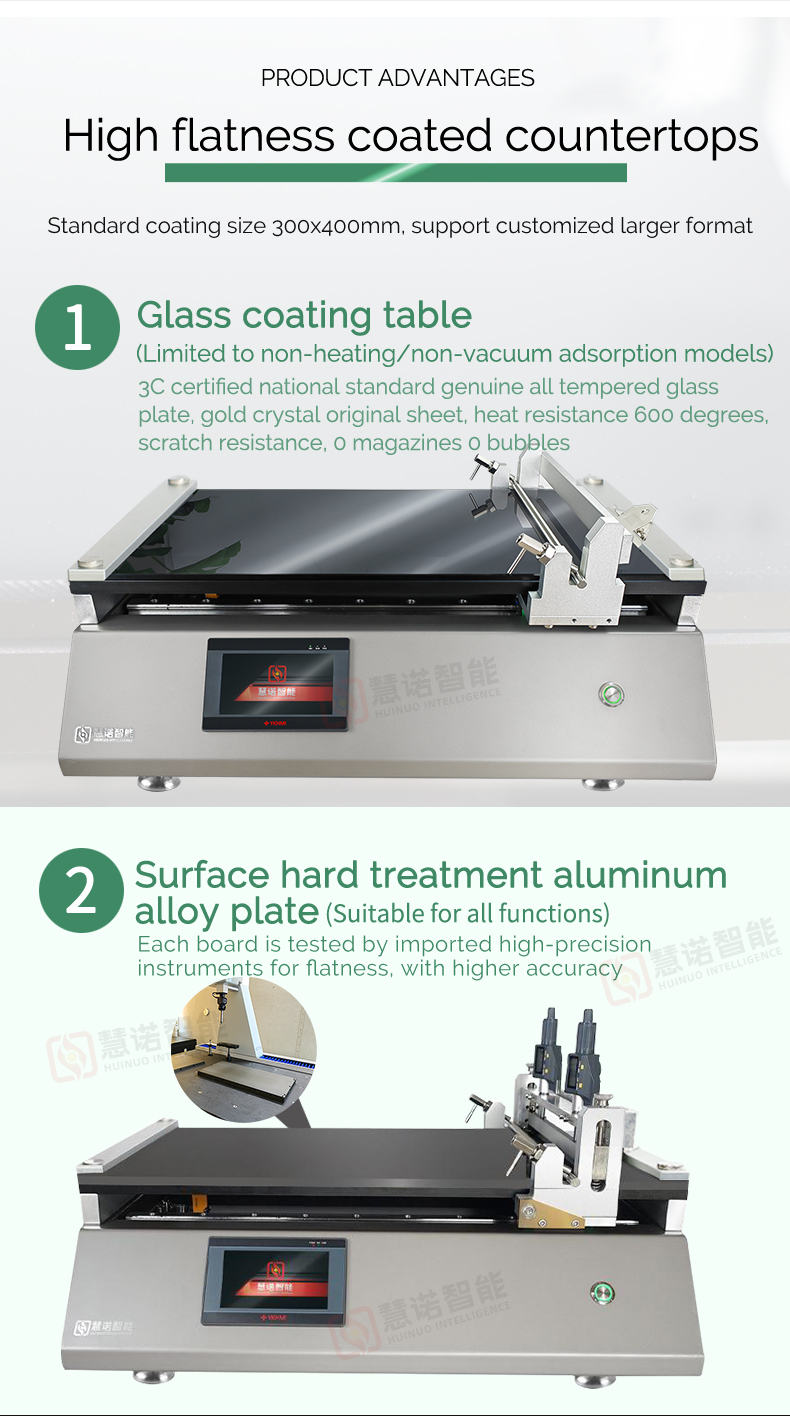

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy

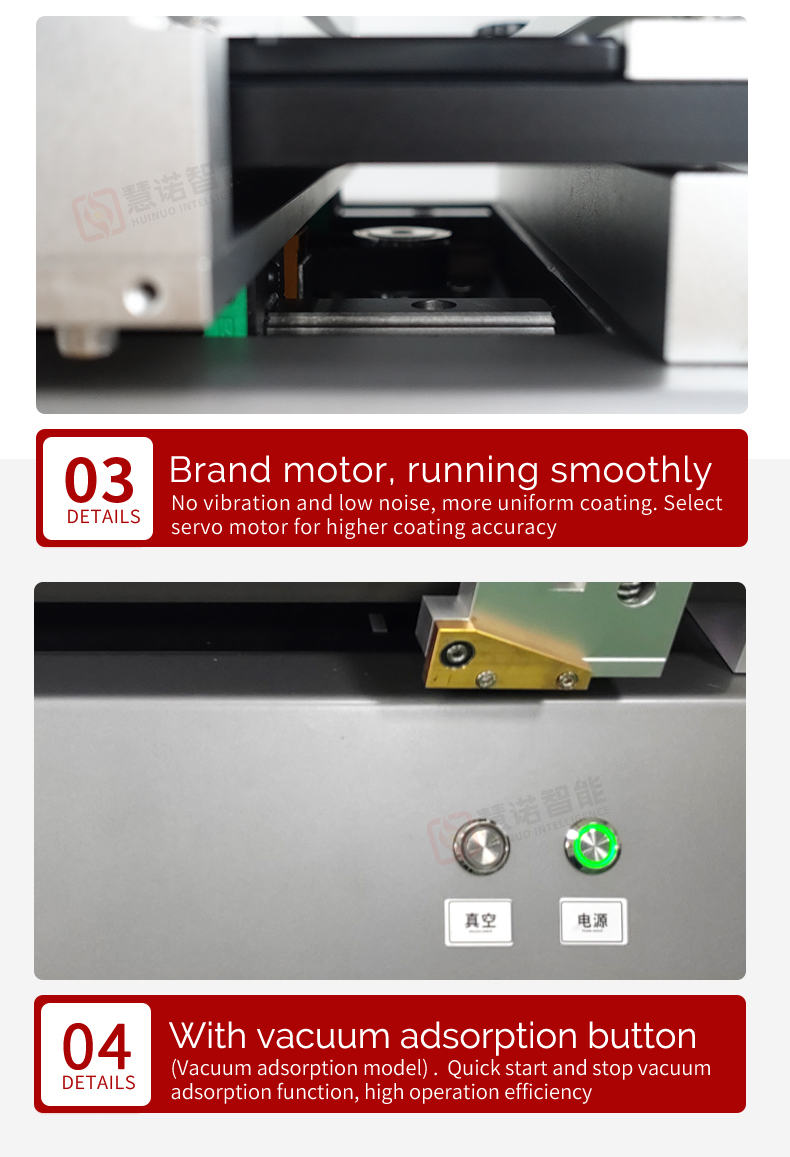

3) With heating and vacuum adsorption function

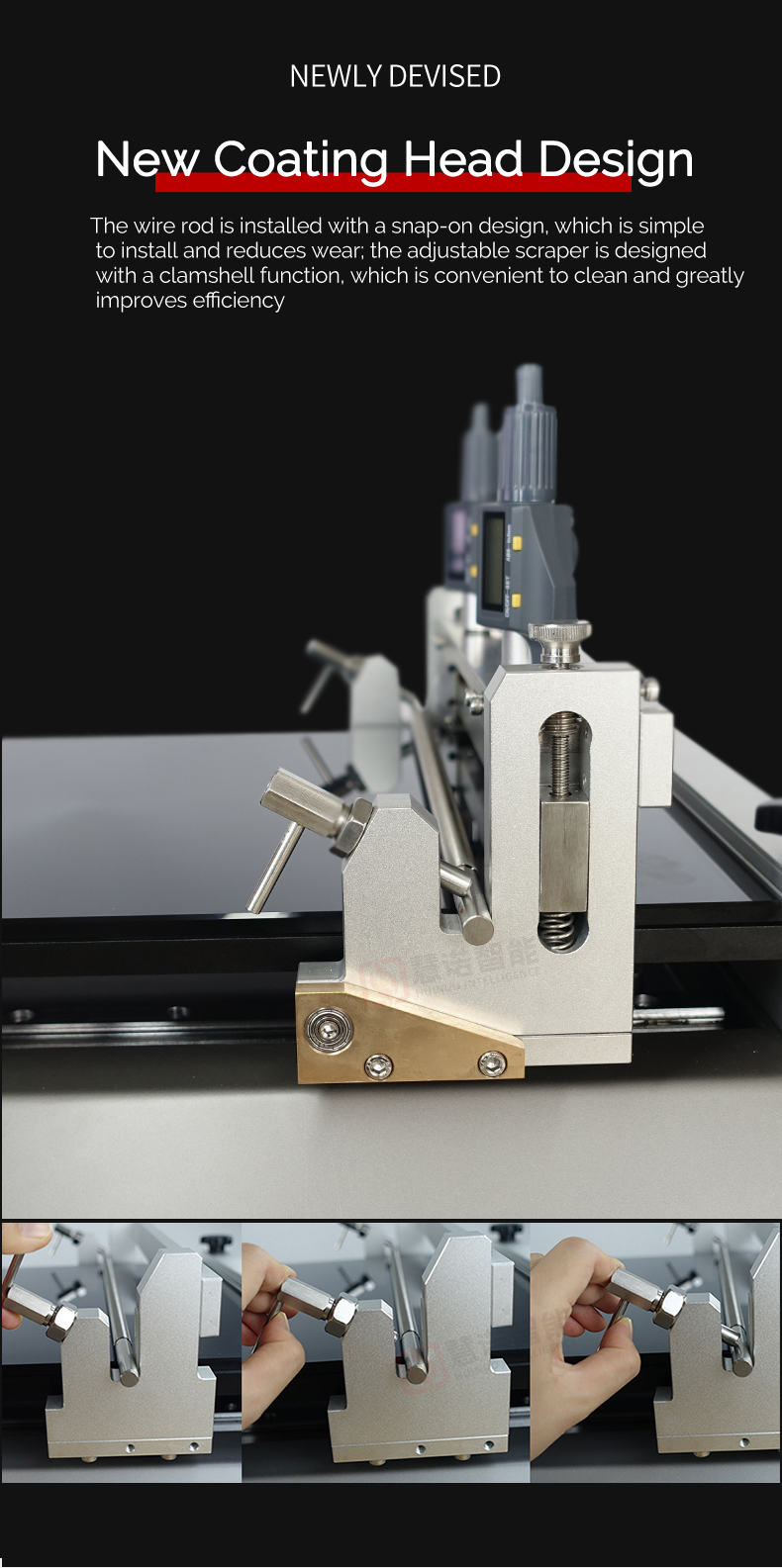

4) Clamshell scraper design, quick and easy to clean
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
