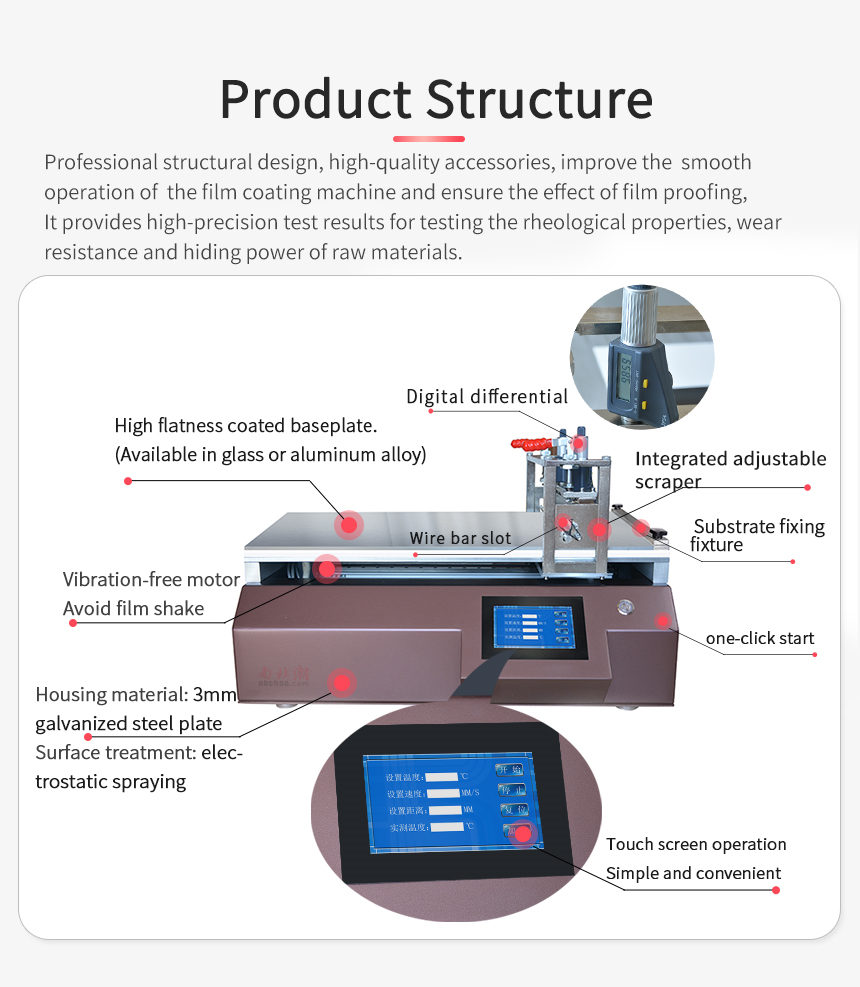

CHINA TBJ-X2-DJ16 Removable drawdown blade bar Vacuum adsorption Small Film Applicator Effective area 300 * 600mm
Bar + removable drawdown blade + vacuum adsorption three-in-one, effective coating area 300 * 600mm, with high-precision imported bar, removable drawdown blade cleaning and replacement is convenient, drawdown blade film thickness range 0~10mm, suitable for release paper, film, foil, paper film.
$5045.00/set
PromotionLoading...
Coupon
Model：
TBJ-X2-DJ16
zy
Manufacturer authorization
Similar products
-
HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm$ 7066.00SE -
TM3200 Wire Rod & Drawdown Blade Automatic Coater with Vacuum Table$ 3957.00SE -
TM3200Pro High-accuracy Wire Rod & Drawdown Blade Automatic film Coater with Vacuum Table$ 4113.00SE -
China Drawdown blade bar Vacuum chuck laboratory coater TBJ-X2-DJ4 with detachable Drawdown blade$ 3102.00SE -
China Vacuum chuck coater TBJ-X2-XB bar + Drawdown blade with imported bar$ 3102.00SE
zy TBJ-X2-DJ16 Automatic Film ApplicatorSPEC
zy TBJ-X2-DJ16 Automatic Film ApplicatorDetails
zy TBJ-X2-DJ16 Automatic Film ApplicatorPacking list
- SKU
- NB047243
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0-10Mm drawdown blade can be lifted
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300*600mm
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Vacuum Area
- 300 * 600Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- Host Power Supply
- 220V 50Hz
- Dimension
- Subject to the actual product
- Weight
- Subject to the actual product
- speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Drawdown blade type
- Removable drawdown blade
- Mayer Rod Accuracy
- ±0.001mm
- Spreader Itinerary
- The number can be set arbitrarily within the range of 1~ 600mm
- Substrate clamping method
- Vacuum adsorption
- Control mode
- Touch screen
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function

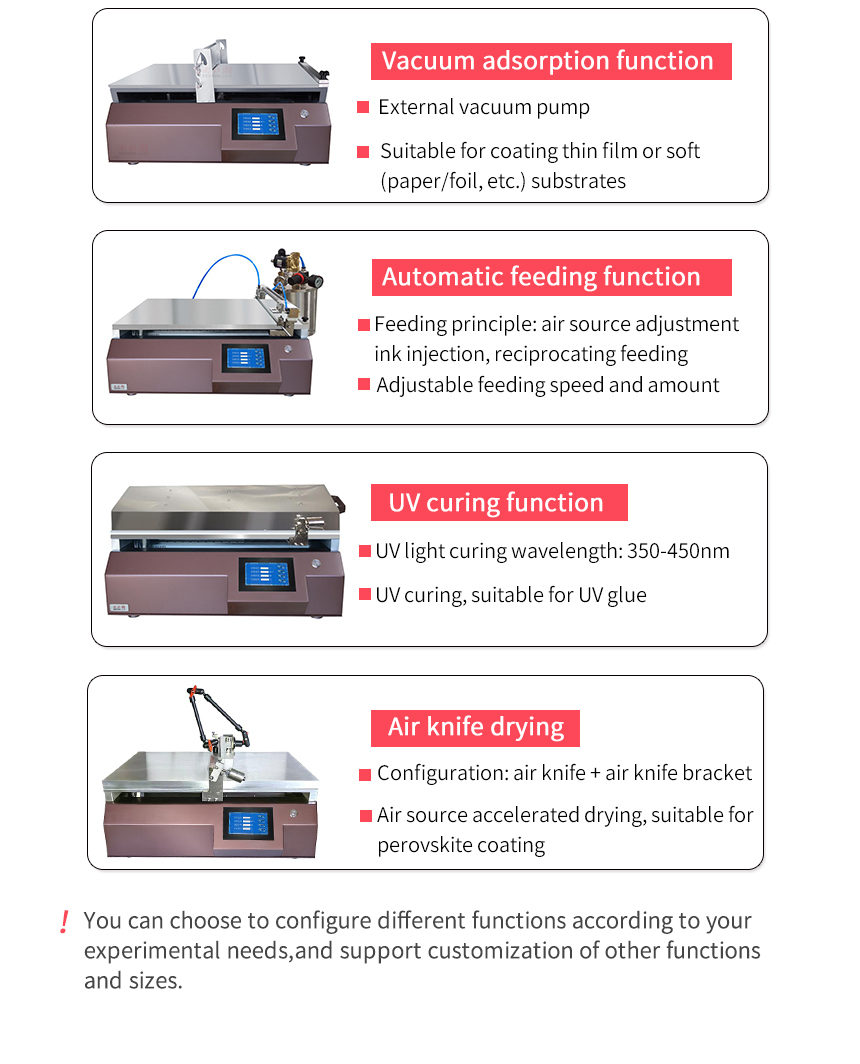

- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
- Coating method

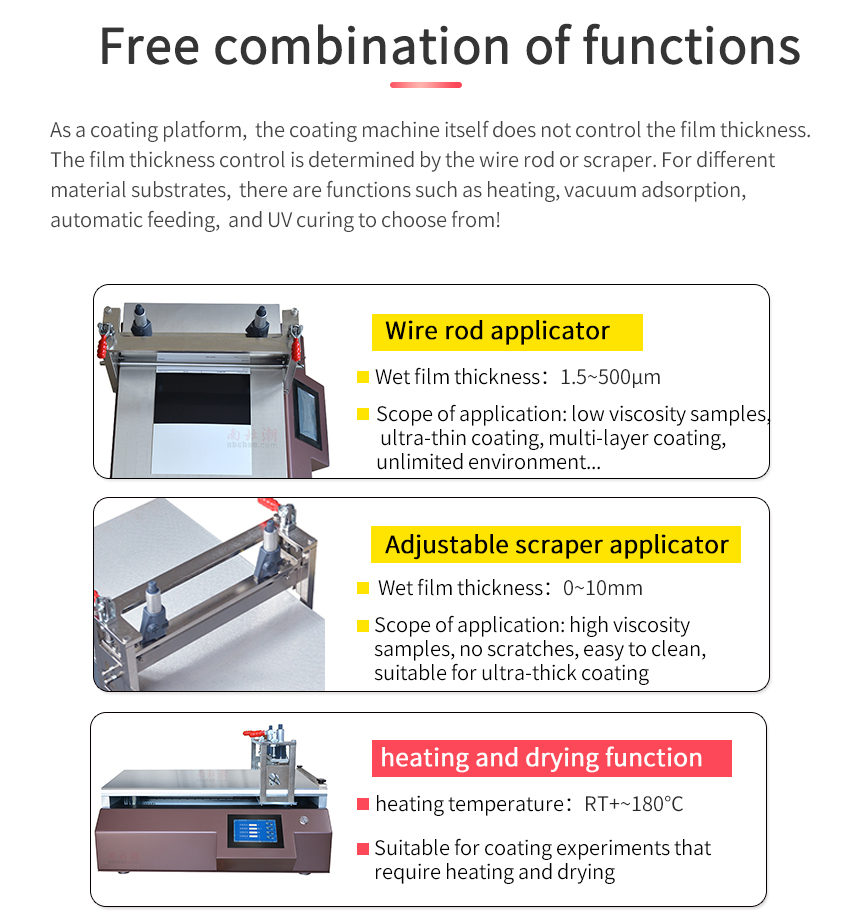

- Bar + drawdown blade

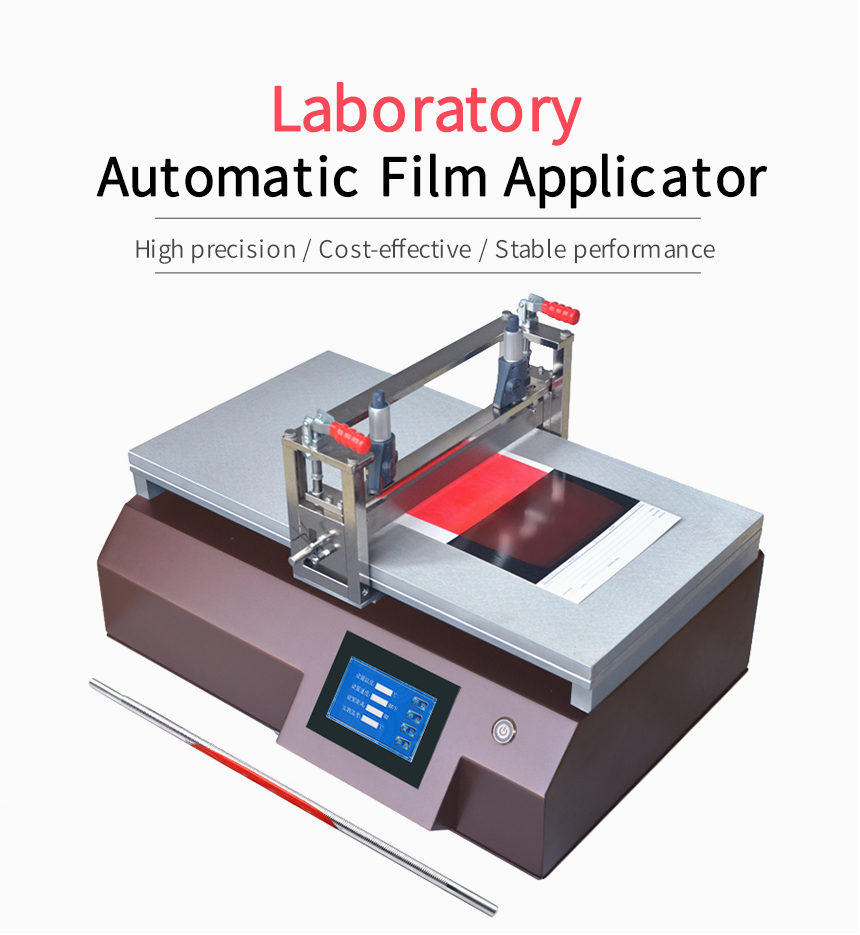

TBJ-X2-DJ16
Automatic Film Applicator
Bar + removable drawdown blade + vacuum adsorption three-in-one, effective coating area 300 * 600mm, with high-precision imported bar, removable drawdown blade cleaning and replacement is convenient, drawdown blade film thickness range 0~10mm, suitable for release paper, film, foil, paper film.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
