Brand：Factory
Model：Rdc-01/500cs
Name：Soaking coil drying air-cooled slitting machine
Specifications
| main substrate | Plain base paper or printing decorative paper |
| glue | Mixture of melamine formaldehyde Resin and urea formaldehyde Resin |
| Spreader moisture | Adjustable (formed) according to the process |
| Coating method | soak |
| Coating size | Max.500mm |
| substrate | Less than 500mm |
| Roll surface width | 500mm |
| mechanical speed | 1.2M/min (0.1~ 1m/min production speed, depending on the process) The speed can be adjusted slowly |
| unwinding diameter | ≤ φ 400mm (paper core 3 ") |
| winding diameter | ≤ 500mm (paper core 3 ") |
| Heating drying method | External infrared heating, centrifugal fan hot air circulation |
| temperature control | 50~150 ℃ +/- 3 ℃ (maximum 160 ℃ in the intermediate temperature zone) |
| Curl the edges neatly | ±3.0mm |
| Total Installed Power | About 40kW (Power required for electric heating is about 35kW) |
| Equipment external Dimensions | (L x W x H) According to process changes and final design drawings |
| Teflon roller | 4 pieces (installed in front of the Spreader head respectively) |
| Power Supply | Three-phase five-wire 380V 50Hz |
| Unwinding Unit - Type | Single station |
| Unwind Unit - Effective Unwind Width | 500mm |
| Unwinding Unit - Effective Unwinding Diameter | ≤Φ400mm |
| Unwinding Unit - Unwinding Scroll | 3 " (φ 76mm) 1 piece of inflatable shaft (suspended structure) |
| Unwinding Unit - Unwinding Tension Control | Tension automatic control, magnetic particle brake, tension Controller |
| Front Traction Unit - Steel Roller | Φ42x500mm |
| Front Traction Unit - Motor | SEND/0.75KW (servo control) |
| Chilling down device | air-cooled |
| Cutting device | 3 air knives, you can freely control the cutting spacing |
Packing list

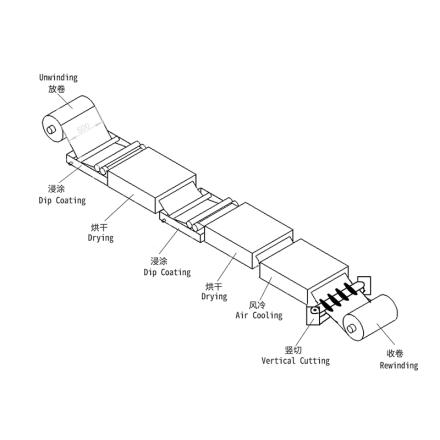

Host x1, water bath dip coating module x2, drying module x2, air-cooled module x1, slitting device x1, rewinding device x1
After-sales instructions
Warranty days: 365 days
