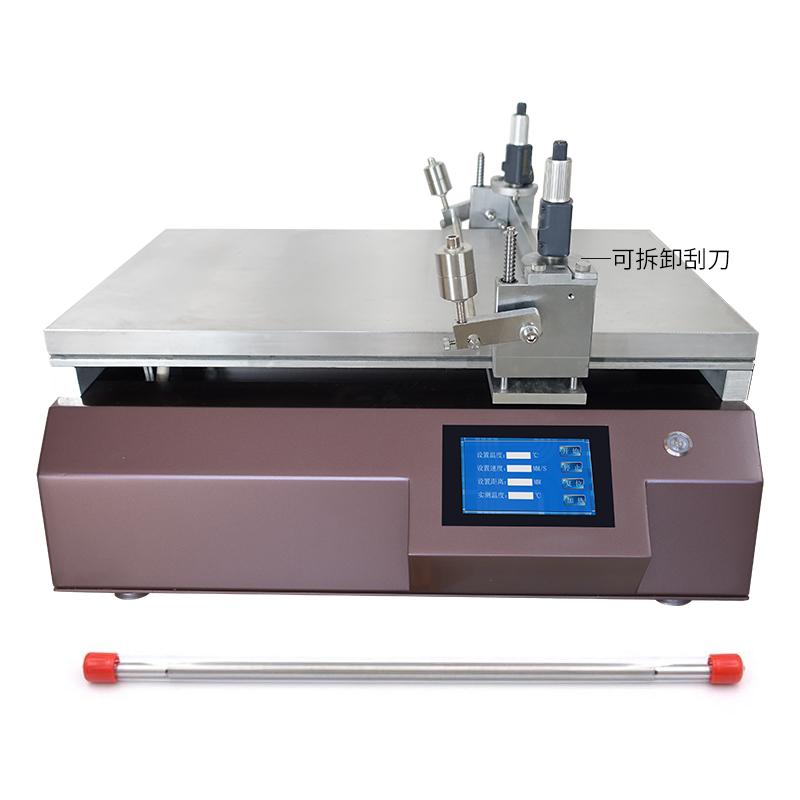

CHINA metering rod & drawdown blade vacuum adsorption small coater TBJ-X2-DJ12 Coating size 400 * 500mm
SEWire rod + detachable drawdown blade + vacuum adsorption three-in-one, increase the coating width 400 * 500mm, standard 1 micron high-precision imported wire rod, drawdown blade removable replacement and easy cleaning, aluminum alloy baseplate, touch screen control operation.
$5512.00/set
PromotionLoading...
Coupon
Model：
TBJ-X2-DJ12
zy
Manufacturer authorization
Similar products
-
HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm$ 7066.00SE -
TM3200 Wire Rod & Drawdown Blade Automatic Coater with Vacuum Table$ 3957.00SE -
TM3200Pro High-accuracy Wire Rod & Drawdown Blade Automatic film Coater with Vacuum Table$ 4113.00SE -
China Drawdown blade bar Vacuum chuck laboratory coater TBJ-X2-DJ4 with detachable Drawdown blade$ 3102.00SE -
China Vacuum chuck coater TBJ-X2-XB bar + Drawdown blade with imported bar$ 3102.00SE
zy TBJ-X2-DJ12 Automatic Film ApplicatorSPEC
zy TBJ-X2-DJ12 Automatic Film ApplicatorDetails
zy TBJ-X2-DJ12 Automatic Film ApplicatorPacking list
- SKU
- NB047318
- Coating method
- Bar + adjustable drawdown blade
- Drawdown blade type

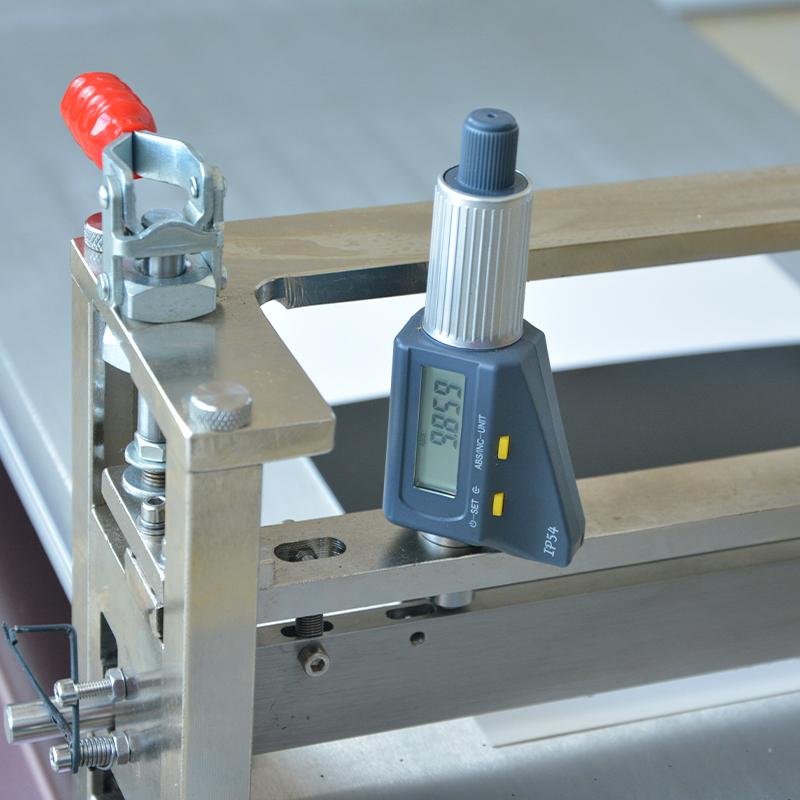

- Removable drawdown blade, easy to clean and replace
- Drawdown blade Accuracy
- +/- 0.003Mm (removable drawdown blade)
- Drawdown blade thickness range
- 0.001-10Mm drawdown blade can be lifted
- Drawdown blade material
- 304 stainless steel
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Mayer Rod Accuracy
- ±0.001mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 400 * 500Mm (Miscellaneous size can be customized)
- Spreader distance control
- Numbers can be set arbitrarily within the range of 1-500mm
- Vacuum Area
- 400 * 500Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- Bar application width
- 540mm
- Host Power Supply
- 220V 50Hz
- Substrate clamping method

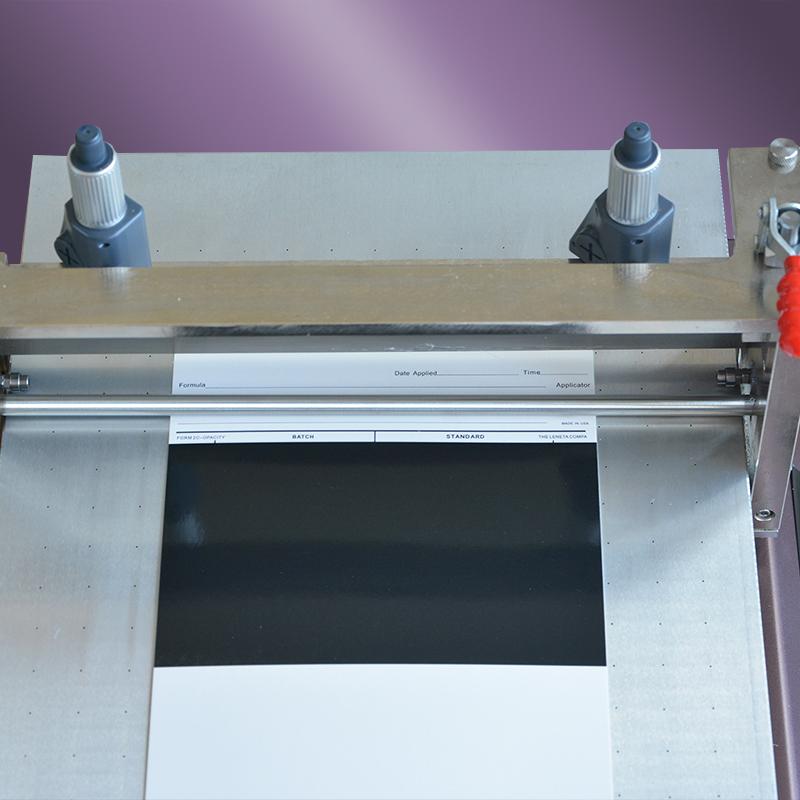

- Vacuum adsorption
- Control mode

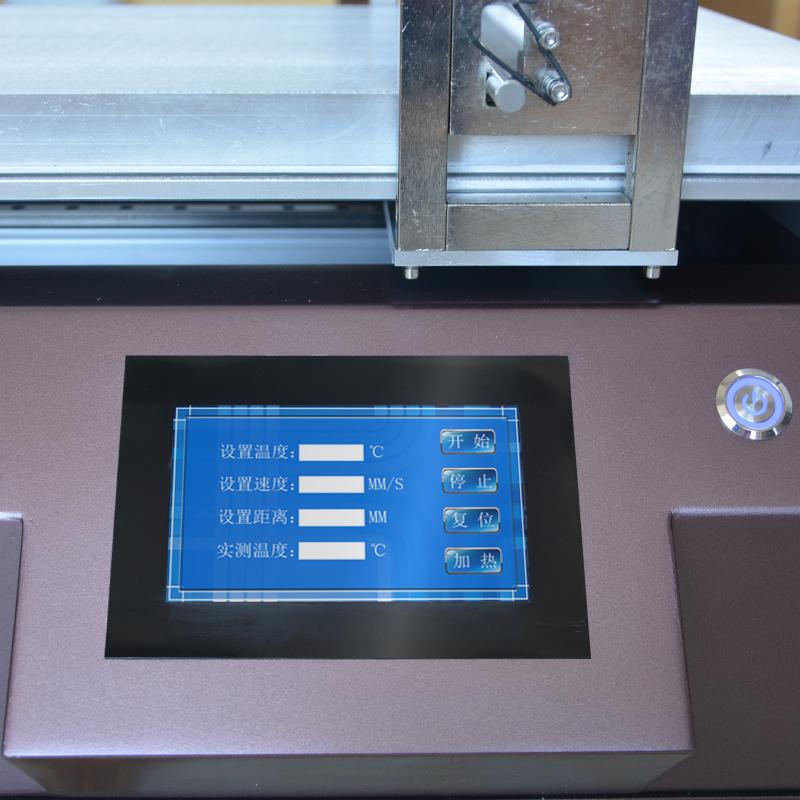

- Touch screen control
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-X2-DJ12
Automatic Film Applicator
Wire rod + detachable drawdown blade + vacuum adsorption three-in-one, increase the coating width 400 * 500mm, standard 1 micron high-precision imported wire rod, drawdown blade removable replacement and easy cleaning, aluminum alloy baseplate, touch screen control operation.
Overview
TBJ-X2-DJ12 small coating machine has an effective area of 400*500mm, adopts wire rod and doctor blade coating method, with vacuum adsorption function, suitable for film and release paper coating proofing, and supports customization of larger formats.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
