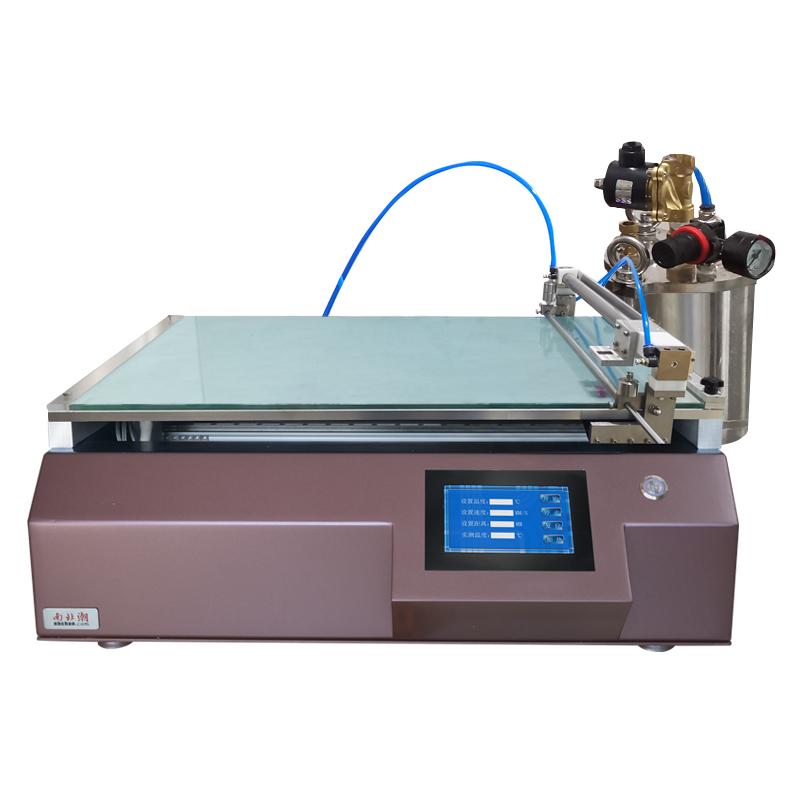

CHINA TBJ-X2-DJ13 Automatic Feeding Laboratory Film Applicator Coating Format 300 * 1000mm
SEWire rod + drawdown blade + vacuum adsorption + automatic feeding function, Coating size 300 * 1000mm, large size Spreader, suitable for film, aluminum foil copper foil and other substrates on film proofing.
$9087.00/set
PromotionLoading...
Coupon
Model：
TBJ-X2-DJ13
zy
Manufacturer authorization
Similar products
-
HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm$ 7066.00SE -
CHINA metering rod & drawdown blade Laboratory Film Applicator TBJ-X2-DJ14 Coating size 750 * 1100mm$ 12507.00SE -
China TBJ-X2-DJ2 Automatic Film Applicator with Automatic Inking System -
HuiNuo TM3200Pro/02 Bar & drawdown blade vacuum adsorption laboratory coater effective area 400 * 500mm$ 5978.00SE
zy TBJ-X2-DJ13 Automatic Film ApplicatorSPEC
zy TBJ-X2-DJ13 Automatic Film ApplicatorDetails
zy TBJ-X2-DJ13 Automatic Film ApplicatorPacking list
- SKU
- NB047319
- Coating method
- Bar + adjustable drawdown blade + automatic feeding system
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.001-10Mm adjustable
- Drawdown blade material
- 304 stainless steel
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Mayer Rod Accuracy
- ±0.001mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300 * 1000Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-1000mm
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- Host Power Supply
- 220V 50Hz
- Net Weight
- 65KG
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- standard feature
- Automatic inking system
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-X2-DJ13
Automatic Film Applicator
Wire rod + drawdown blade + vacuum adsorption + automatic feeding function, Coating size 300 * 1000mm, large size Spreader, suitable for film, aluminum foil copper foil and other substrates on film proofing.
TBJ-X2-DJ13 laboratory coating machine is a wire rod doctor blade coating machine with automatic feeding system, with a large coating width of 300*1000mm, with vacuum adsorption function, which can be used for film proofing on film, aluminum foil and copper foil.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
