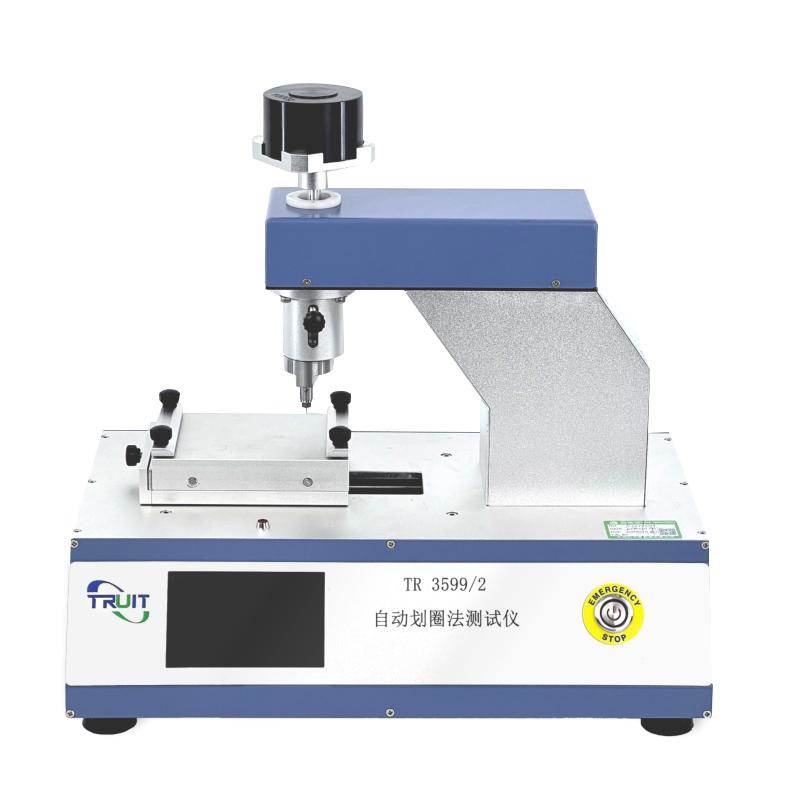

TRUIT TR 3599/2 Automatic Circle-drawing tester, circle adhesion tester

TR 3599/2

Automatic Circle-drawing Tester

Used to test the film and substrate adhesion ability, in line with the standard GB/T 1720 standard, electric complete Circle-drawing, uniform speed, constant strength, to ensure a high degree of test results Repeatability and comparability.

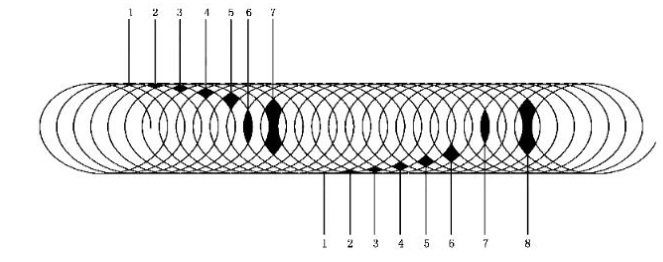

The TR 3599/2 Automatic Circle Tester is a specially designed instrument for testing the adhesion of a coating film to a substrate and can be done manually by the userEnter the relevant parameters to control the operation of the instrument to meet the requirements, by continuously drawing circles of the same diameter on the test coating, between these circlesOverlap each other at a certain interval, and mark seven parts in order according to the scratches at the end of the test: 1, 2, 3, 4, 5, 6, and 7, and divide them into seven accordinglylevels (level 1 is best, level 7 is worst).

peculiarity

1. Aerospace aluminum alloy fuselage: The equipment is made of aerospace aluminum alloy fuselage, which is beautiful, lightweight and corrosion-resistant.

2. High-definition touch interface: The 4.3-inch visual touch screen gives the instrument a modern and professional appearance, simplifying the operation process.

3. Automatic judgment prompt: The indicator automatically judges whether the scribing needle cuts the coating film to the substrate to ensure the accuracy and convenience of the operation.

4. Electric Circle: Electrically completed circle, uniform speed and constant force, ensuring a high degree of repeatability and comparability of test results.

5. Industrial automation: The starting and ending points of the working platform are accurately positioned to ensure that the standard stroke can be reached for each test.

6. Flexible adjustment of stroke and speed: stroke (20~80mm) and speed (10~120±1 rpm) can be adjusted.

7. Sliding platform: Convenient for multiple tests at different positions on the same board.

8. Precision-positioned double guide rail system: smoother than single guide rail.

9. Guide rod needle lifting structure: easy to replace the needle and test plate, can adapt to more thickness range of test plates.

10. Double-nut adjustment screw: ensure smooth operation of the platform, reduce errors, and improve data accuracy.

11. Tungsten carbide thread: Ultra-precision tungsten carbide thread precisely controls the diameter of the ring to ensure more stable test results.

12. Quick tool assembly and disassembly: Tool scribing needle assembly and disassembly is convenient and fast, saving time and improving efficiency.

13. Customized weight combination scheme: Use multi-level weight combinations to get the right weight load to meet different testing needs.

14. Graduated hand-setting assembly: The diameter of the ring can be adjusted manually without the need for additional tools.

Meets standards

The TR 3599/2 Automatic Circle Tester complies with GB/T 1720. In order to guarantee the accuracy of the test results, it is recommended:Follow the instructions at the time of testing.

Packing list：Host × 1, needle changing tool × 1, weight (100g/200g/500g) × 1, scribing needle × 1, power cord × 1, weight tray × 1, manual, certificate of conformity.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
