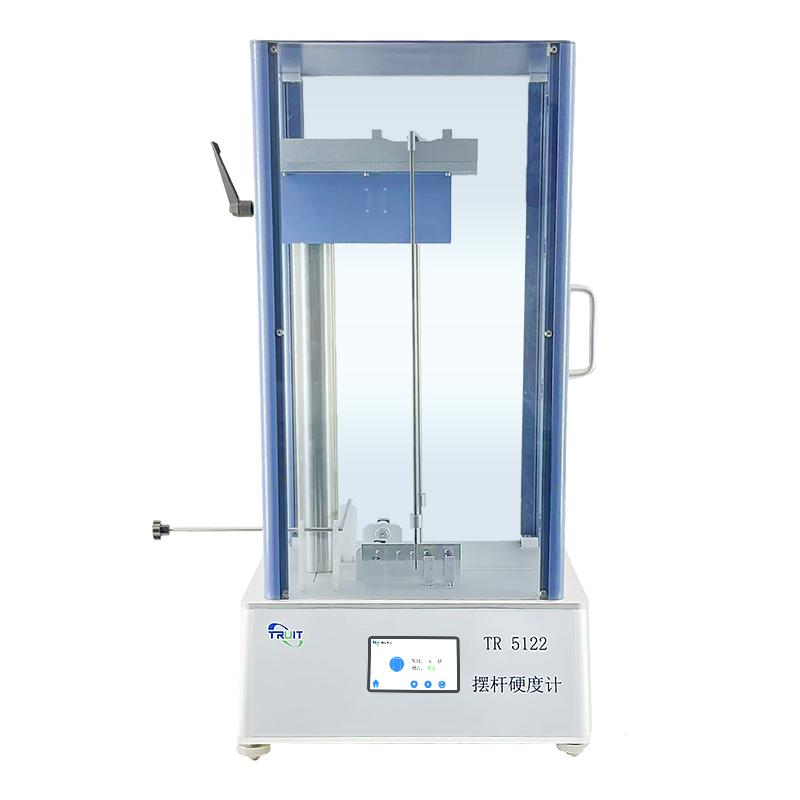

TRUIT TR 5120/K Pendulum Hardness Tester KÖnig

TR 5120/K

Pendulum Hardness Tester

KÖnig, swing rod weight 200g +/- 0.2g, ball diameter 5mm (0.2in), initial swing angle 6º, end swing angle 3º, oscillation period 1.4s, Glass plate swing time 250 +/- 10s, counting function automatic.

The pendulum Hardness Tester is designed in accordance with GB/T 1730, ISO 1522 and ASTM D4366 standards. The König pendulum has the same principle as the Persoz pendulum and the double pendulum. The softer the pendulum contact with the coating surface, the faster the pendulum spokes attenuate, but the size, oscillation period and oscillation of the three are different.

The interaction between the pendulum and the paint film is complex and depends on the elastic and viscoelastic properties of the coating film, and there is no universal relationship between the results obtained by these three test methods. Only one type of pendulum is allowed in the measurement of the specified damping time.

In terms of the advantages of a purpose-built pendulum, the following conditions can be used as a guideline:

a) On surfaces with a low friction factor, the Persoz pendulum may slip, which invalidates the result, which is rarely the case in the case of base coats and varnishes.

b) The three instruments reflect the sensitivity of the physical properties of the coating to its environment, so the test should be carried out under the condition of controlling the temperature and humidity without the influence of air flow, and the thickness of the paint film and the material of the substrate may also affect the damping time.

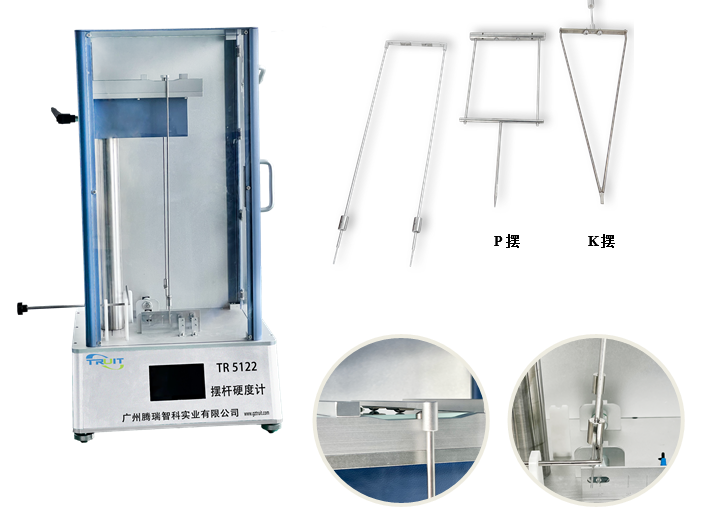

Features

Touch screen control

Adopt electromagnet method to shrink the pendulum needle

It can be suitable for test boards with different thicknesses from 0.1mm~5.5mm

Two laser probes are used to record data

Plexiglass door cover, reducing air circulation and making it easy to view

Different test methods can be switched freely

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
