TRUIT TR 5130 Indentation Hardness Tester
SEIndentation weight 1000 +/- 5g, payload weight 500 +/- 5g, reading accuracy 0.1mm, Light source incident angle greater than 60 °.
$288.00/set
PromotionLoading...
Coupon
Model：
TR 5130
TRUIT TR 5130 Indentation Hardness TesterSPEC
TRUIT TR 5130 Indentation Hardness TesterDetails
TRUIT TR 5130 Indentation Hardness TesterPacking list
- SKU
- NB047357
- Indentation Weight
- 1000±5g
- payload heavy
- 500±5g
- Reading Accuracy
- 0.1mm
- Light source
- Incident angle greater than 60 °
TR 5130

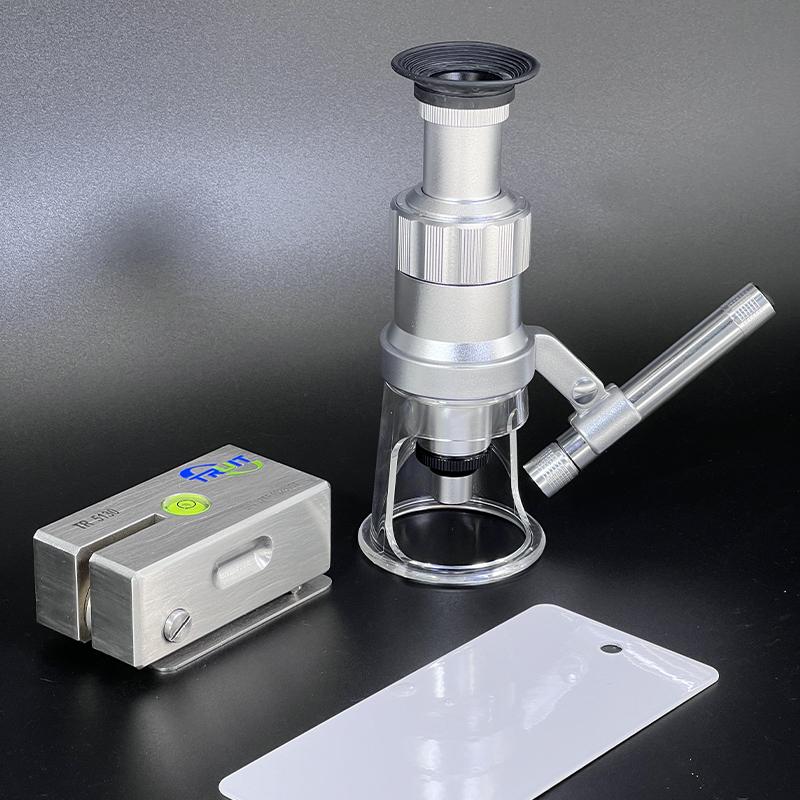

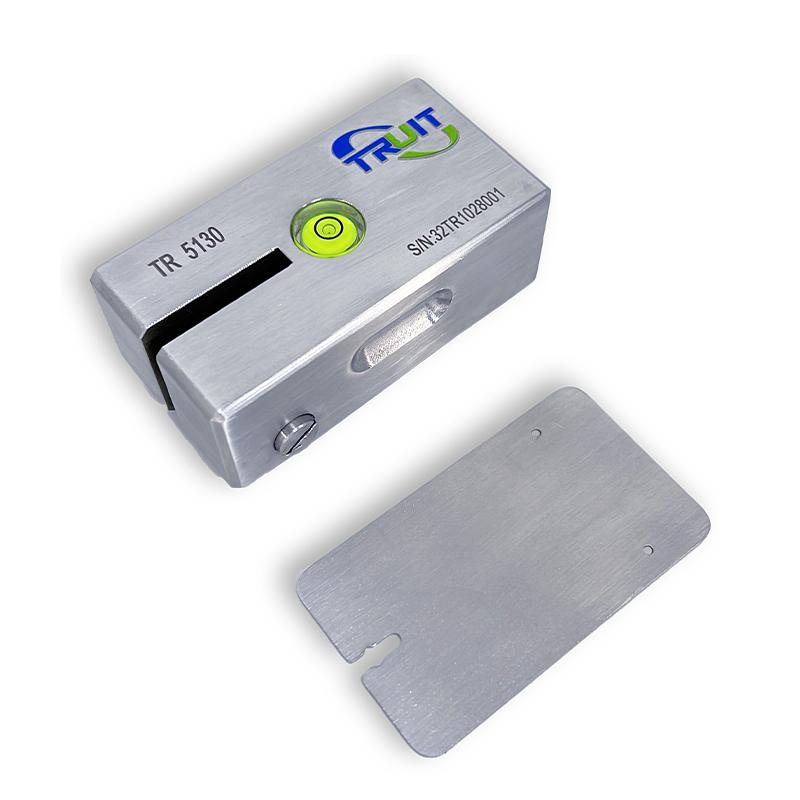

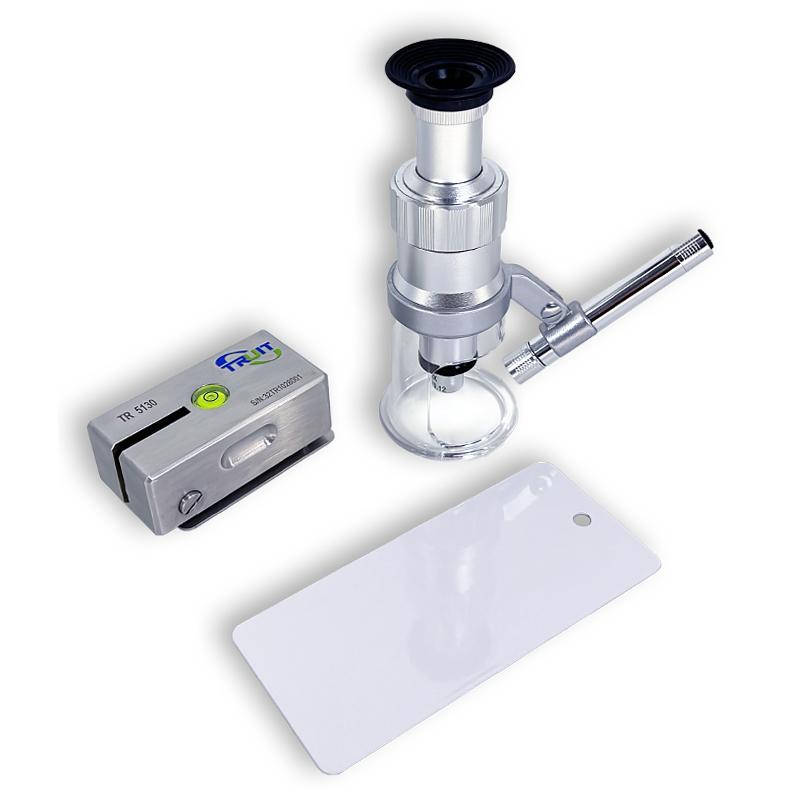

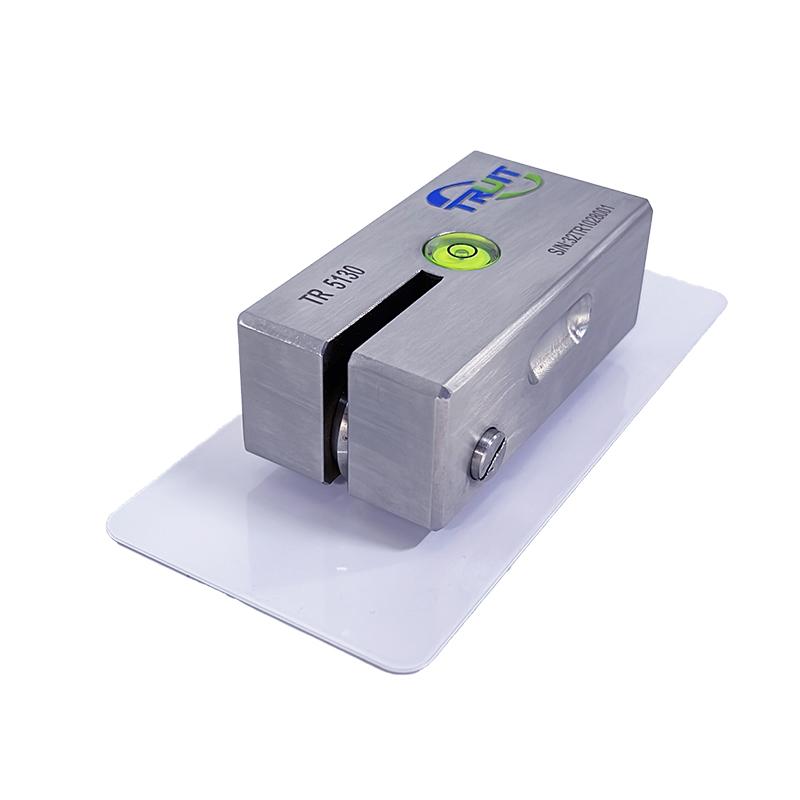

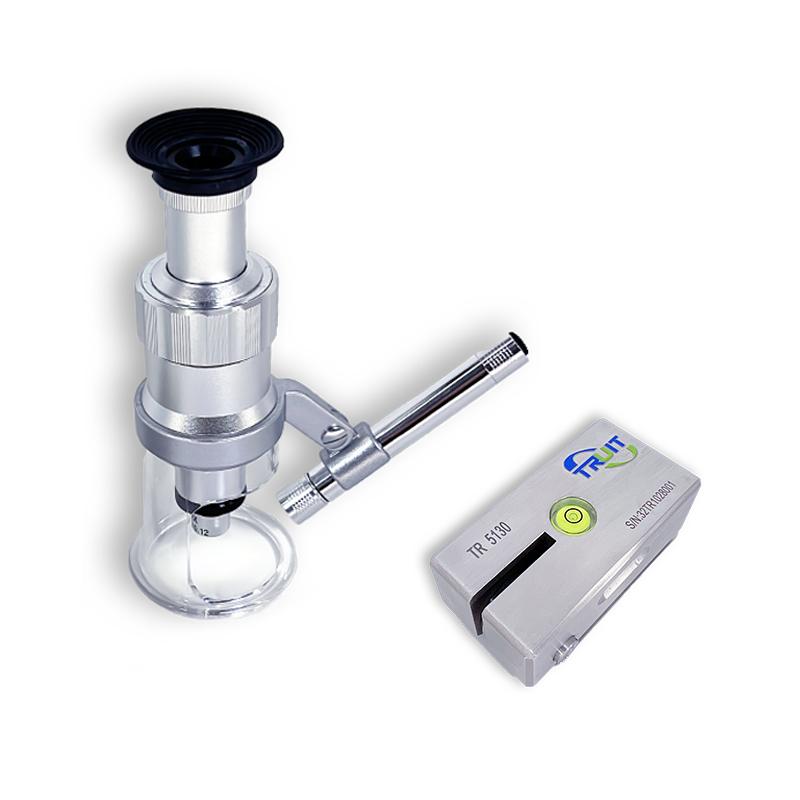

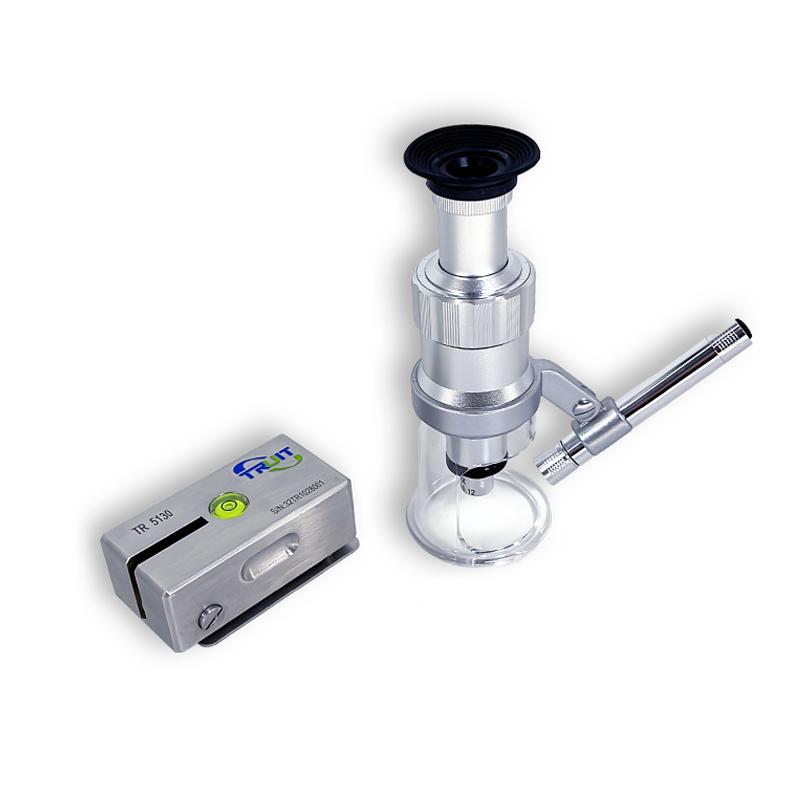

Indentation Hardness Tester
Indentation weight 1000 +/- 5g, payload weight 500 +/- 5g, reading accuracy 0.1mm, Light source incident angle greater than 60 °.
The indentation Hardness Tester is designed according to GB/T 9275, ISO 2815, BS 39100 E9, DIN 53153, ECCA-T12 standards, the indentation Hardness Tester can be used to evaluate the compression resistance of plastic coatings, during the test, a square test block with a load of 500 g equipped with a standard pressure knife is placed on the surface of the tested product, and the position is left after a period of time, and then the pressure knife is measured by a microscope with 20 times magnification.
Features
Two hard stainless steel fulcrums
Tungsten carbide round tools
Built-in horizontal bubbles ensure precision
High-precision microscopes guarantee correct results
FAQ
QI want to test the compression resistance of plastic coatings. Is there an instrument recommended?
A
TR 5130 Indentation hardness tester is specially designed according to GB/T 9275, ISO 2815 and other standards. After passing the 500g load and standard pressure knife test, it can be used for 20 times Microscope measurement indentation, which can accurately evaluate the compression resistance performance of plastic coatings.
QHow do you guarantee Test accuracy?
A
The TR 5130 Indentation hardness tester features two hard stainless steel pivots and carbide round tools, built-in horizontal bubbles to ensure smooth placement, and high-precision Microscope readings. These features ensure the accuracy of test results.
QHow exactly does this instrument operate and read?
A
During operation, the 500g weight-bearing block is placed on the surface of the sample with a pressure knife, and then moved away. Then, through the 20-fold Microscope measurement indentation size that comes with the instrument, the reading accuracy reaches 0.1mm. Light source with built-in incident angle greater than 60 ° is convenient for observation, and the overall function is simple and easy to use.
Standard
