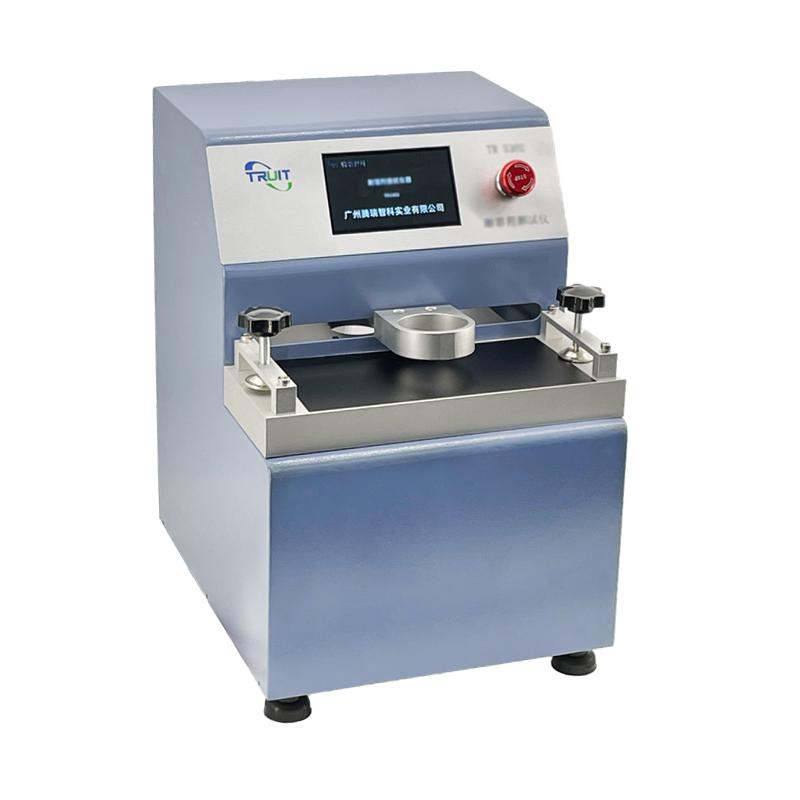

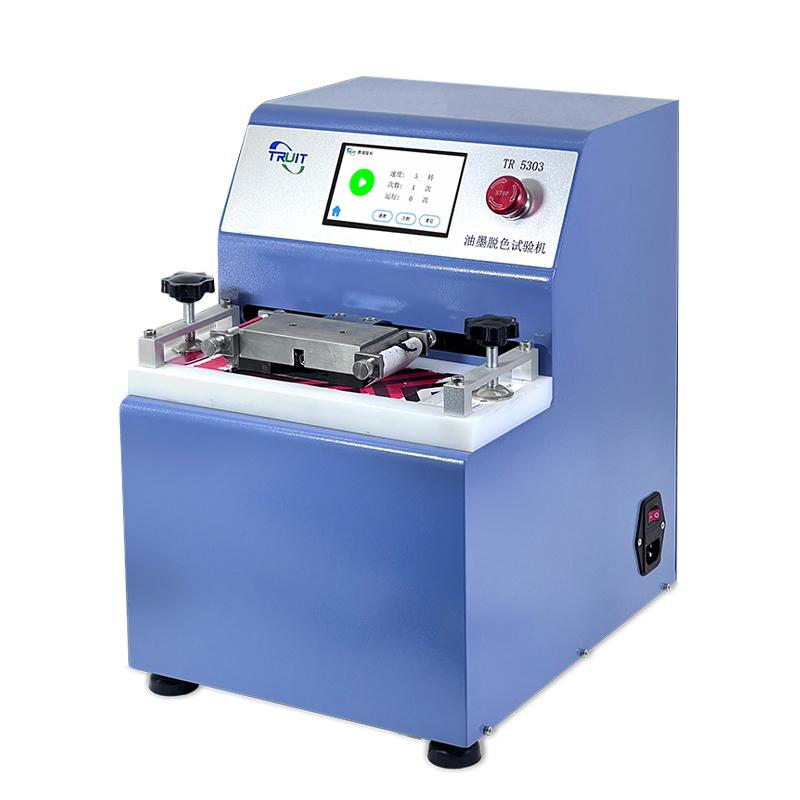

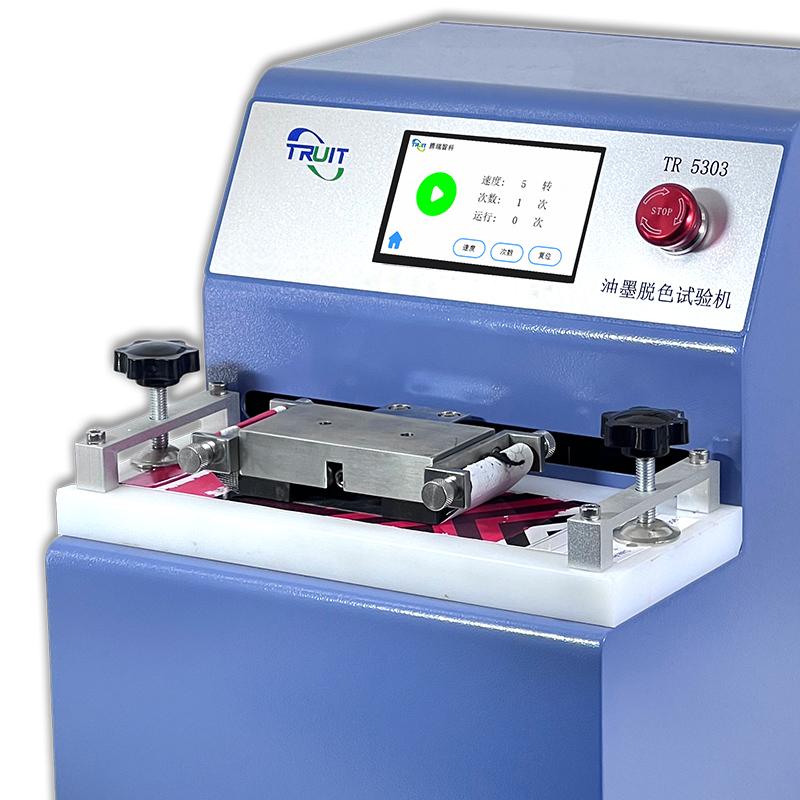

TRUIT TR 5303 Ink Rub Resistance Tester
SEAccording to JIS-5071-1/TAPPI-UM486 TAPPI-UM487, it is used to test the adhesion of inks to judge the quality of inks. Used for dry grinding test, wet grinding test, decolorization change test, paper fuzz test and special friction test.
$1066.00/set
PromotionLoading...
Coupon
Model：
TR 5303
TRUIT TR 5303 Ink Rub Resistance TesterSPEC
TRUIT TR 5303 Ink Rub Resistance TesterDetails
TRUIT TR 5303 Ink Rub Resistance TesterPacking list
- SKU
- NB047361
- Friction velocity
- 21/43/85/106rpm speed adjustable
- friction load
- 908g，1810g
- friction stroke
- 60mm
- Friction area
- 50*100mm
- number of times
- 0-99999 automatic shutdown
- Power
- 40W
TR 5303
Ink Rub Resistance Tester
According to JIS-5071-1/TAPPI-UM486 TAPPI-UM487, it is used to test the adhesion of inks to judge the quality of inks. Used for dry grinding test, wet grinding test, decolorization change test, paper fuzz test and special friction test.
TR5303 ink decolorization Tester is designed in accordance with JIS-5071-1/TAPPI-UM486, TAPPI-UM487 and other related standards. This instrument is used to test the adhesion of ink, so as to judge the quality of ink. Used for dry grinding test, wet grinding test, decolorization change test, paper fuzz test and special friction test. The ink abrasion test is a test method designed to evaluate the abrasion or friction resistance of ink on paper or cardboard.
FAQ
QWhat specific scenarios can this instrument be used in?
A
TR5303 is suitable for ink testing on paper and Cardboard, such as wear resistance inspection of Encasement printing products, label decolorization evaluation, etc., because it complies with JIS and TAPPI standards to ensure the Reliability of test results.
QHow to choose the function? For example, are there any requirements for speed and load?
A
TR5303 offers 4 adjustable Rotation speed (21-106rpm) and two loads (908g/1810g), you can choose according to the thickness of the actual printing material and ink type, to ensure that the test conditions are close to the real Operating Environment.
QI want to test the inks abrasion resistance of my prints, which instrument should I choose?
A
Recommended TRUIT TR5303 Ink Rub Resistance Tester. It is specially designed for ink wear resistance test, which can simulate actual use scenarios such as dry grinding and wet grinding, and accurately judge the wear resistance mass of printing products by testing the ink adhesion.
