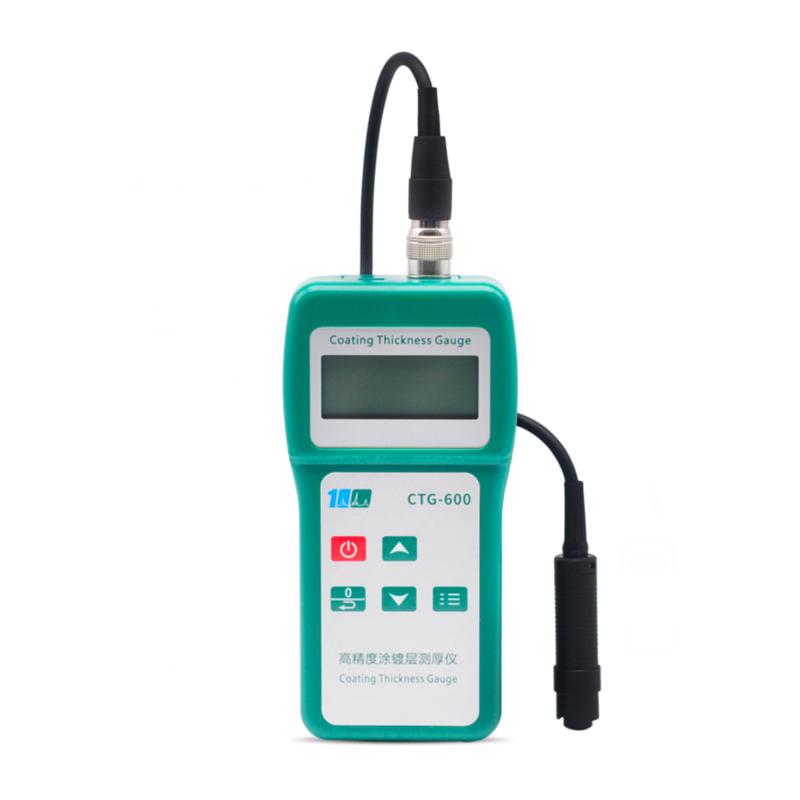

YIBAI CTG-600Z Coating Thickness Gauge can switch to display galvanized gram weight and thickness

CTG-600Z

Coating Thickness Gauge

With switching display galvanized gram weight and thickness, magnetic Induction + eddy Current, Measurement range 0~1500μm, Measurement accuracy +/- 2% H + 1μm, can quickly, no damage, precision coating, platings thickness measurement.

The CTG-600Z Split Coating Thickness Gauge is based on the principle of magnetic induction, which can automatically identify magnetic metal substrates, and it can measure the thickness of coating and coating layers quickly, without damage, and accurately. It can be used both in the laboratory and in the engineering field. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

Yibai CTG-600Z split coating Thickness Gauge has the functions of backlight, large-screen digital display, single-point and multi-point calibration, and this product is resistant to high-low temperatures, drops, probe wear-resistant (more than 500,000 times), good test stability, fast test speed, and suitable for various measurement environments. Its technical parameters are in line with national and international standards.

CTG-600Z can switch to display galvanized grammage and thickness.

The FE function detects the thickness of non-magnetic coatings on all magnetic substrates, such as lacquer applied to steel, iron, powder coating, plastic, porcelain, chromium, copper, zinc, etc.

The NFe function detects the thickness of the insulating coating on all non-magnetic substrates, such as lacquer, plastic, porcelain, etc. These coatings must be applied to a non-magnetic metal substrate such as aluminum, copper, brass or stainless steel.

Function:

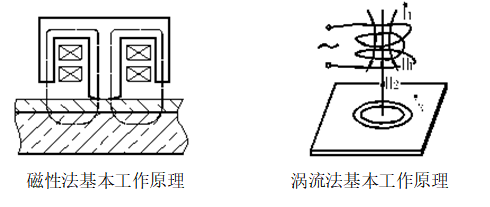

●Measurement method: F magnetic induction, N eddy current

●Spring-loaded guide bush probe with wear-resistant carbide probe can ensure that the probe has constant compression force and stable sampling value when measuring on hard or rough surfaces;

●It can quickly and automatically identify the magnetic substrate;

●High precision, good stability, can measure 1-5μm ultra-thin coating;

●The measurement speed can reach 0.3 seconds/time;

●Large-screen digital display is clearer;

●Two shutdown modes: manual shutdown mode and automatic shutdown mode;

●Wide measurement range and high resolution;

●Digital backlight display, no parallax, suitable for night use;

●Measurement mode: single measurement/continuous measurement;

●It has the function of converting metric and imperial units to achieve μm/mil conversion;

●Newly designed shell and internal structure to enhance the beauty, drop resistance and impact resistance of the product;

●The light touch measurement accuracy is good.

Packing list：host, 1 set of standard tablets (5 tablets: 50μm, 100μm, 250μm, 500μm, 1000μm), 1 iron substrate, 1 aluminum substrate, 1 manual, 2 batteries, warranty card, certificate of conformity

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
